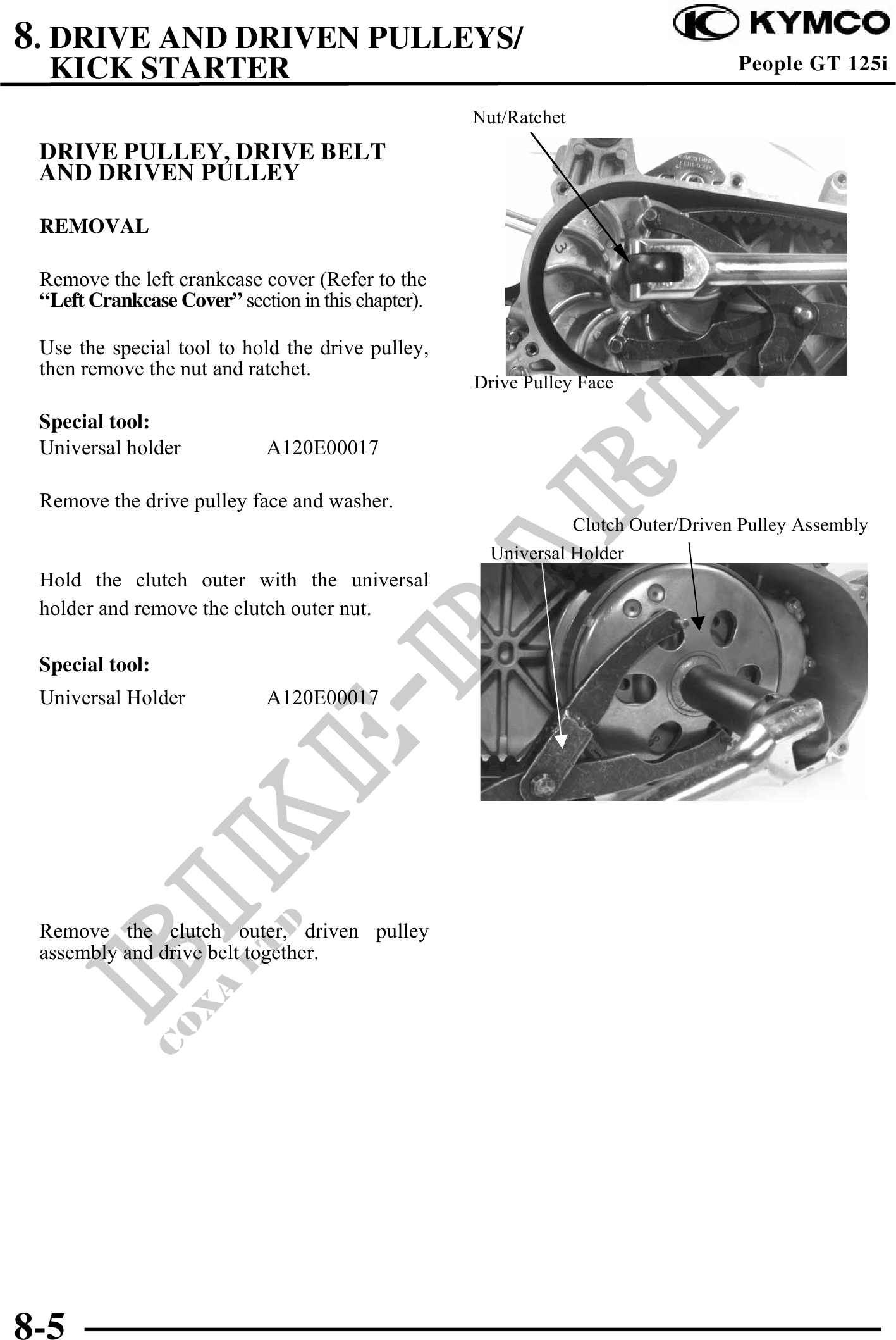

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER People GT 125i
Nut/Ratchet
DRIVE PULLEY, DRIVE BELT
AND DRIVEN PULLEY
REMOVAL
Remove the left crankcase cover (Refer to the
"Left Crankcase Cover" section in this chapter).
Use the special tool to hold the drive pulley,
then remove the nut and ratchet.
Drive Pulley Face
Special tool:
Universal holder A120E00017
Remove the drive pulley face and washer.
Clutch Outer/Driven Pulley Assembly
Universal Holder
Hold the clutch outer with the universal
holder and remove the clutch outer nut.
Special tool:
Universal Holder A120E00017
Remove the clutch outer, driven pulley
assembly and drive belt together.
8-5
