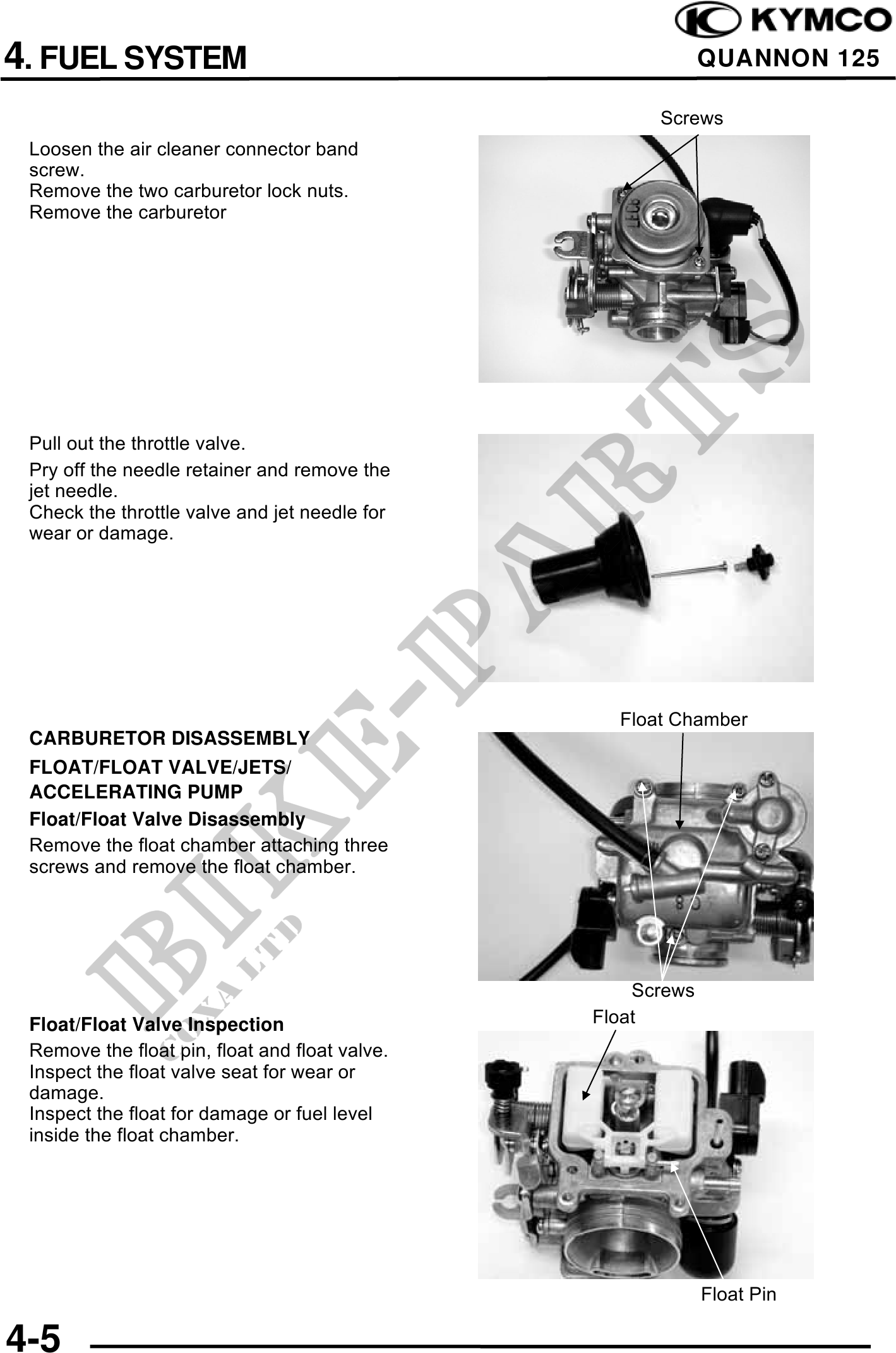

          4. FUEL SYSTEM                                               QUANNON 125

                                                      Screws
 Loosen the air cleaner connector band
 screw.
 Remove the two carburetor lock nuts.
 Remove the carburetor




 Pull out the throttle valve.
 Pry off the needle retainer and remove the
 jet needle.
 Check the throttle valve and jet needle for
 wear or damage.




                                                  Float Chamber
 CARBURETOR DISASSEMBLY
 FLOAT/FLOAT VALVE/JETS/
 ACCELERATING PUMP
 Float/Float Valve Disassembly
 Remove the float chamber attaching three
 screws and remove the float chamber.




                                                    Screws
 Float/Float Valve Inspection                   Float
 Remove the float pin, float and float valve.
 Inspect the float valve seat for wear or
 damage.
 Inspect the float for damage or fuel level
 inside the float chamber.




                                                             Float Pin

4-5
