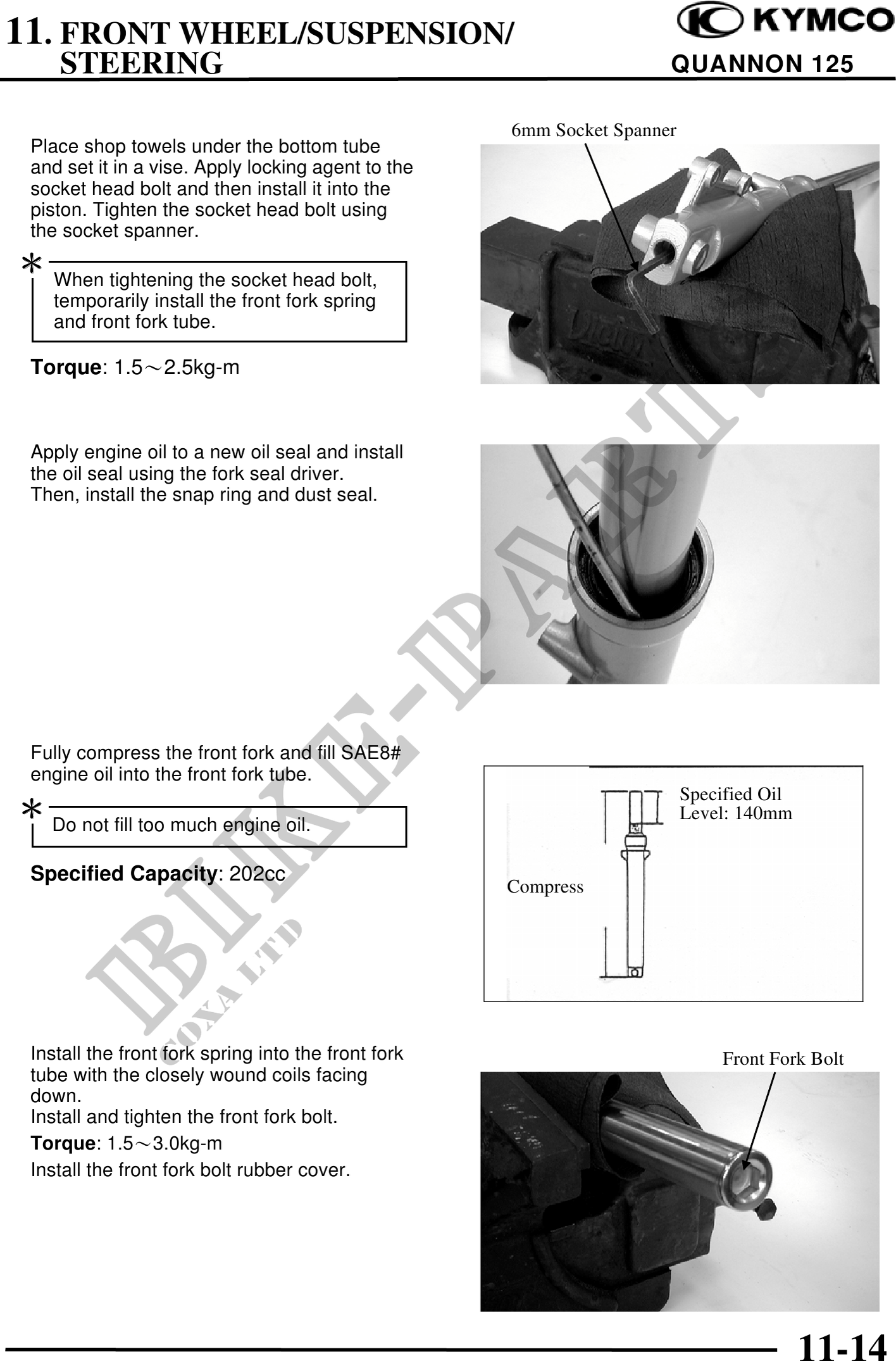

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                          QUANNON 125

                                                     6mm Socket Spanner
 Place shop towels under the bottom tube
 and set it in a vise. Apply locking agent to the
 socket head bolt and then install it into the
 piston. Tighten the socket head bolt using
 the socket spanner.
 When tightening the socket head bolt,
    temporarily install the front fork spring
    and front fork tube.

 Torque: 1.52.5kg-m



 Apply engine oil to a new oil seal and install
 the oil seal using the fork seal driver.
 Then, install the snap ring and dust seal.




 Fully compress the front fork and fill SAE8#
 engine oil into the front fork tube.
                                                                          Specified Oil
 Do not fill too much engine oil.                                         Level: 140mm


 Specified Capacity: 202cc
                                                     Compress




 Install the front fork spring into the front fork                            Front Fork Bolt
 tube with the closely wound coils facing
 down.
 Install and tighten the front fork bolt.
 Torque: 1.53.0kg-m
 Install the front fork bolt rubber cover.




                                                                                          11-14
