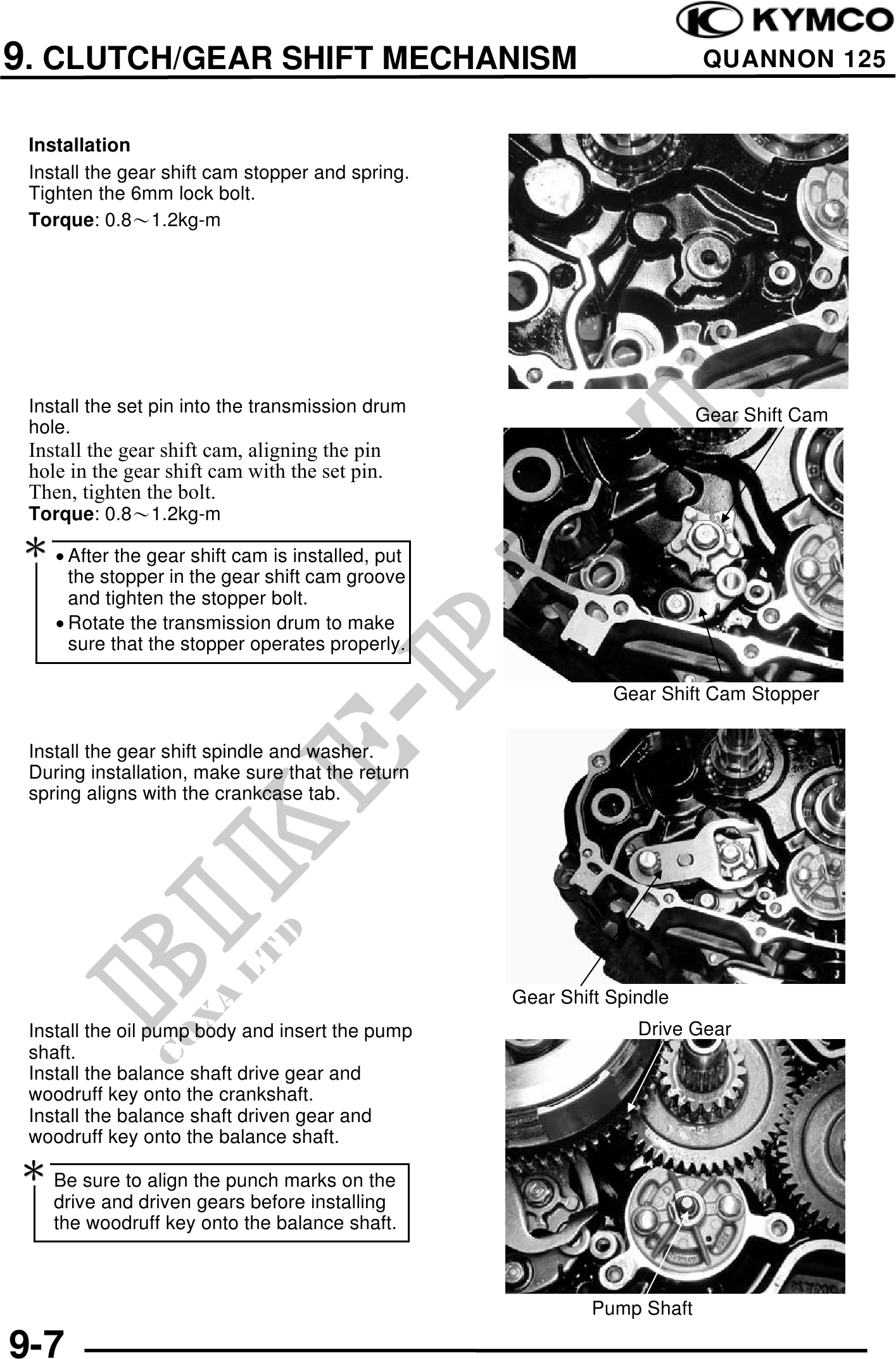

          9. CLUTCH/GEAR SHIFT MECHANISM                                          QUANNON 125


 Installation
 Install the gear shift cam stopper and spring.
 Tighten the 6mm lock bolt.
 Torque: 0.81.2kg-m




 Install the set pin into the transmission drum                         Gear Shift Cam
 hole.
 Install the gear shift cam, aligning the pin
 hole in the gear shift cam with the set pin.
 Then, tighten the bolt.
 Torque: 0.81.2kg-m
 · After the gear shift cam is installed, put
      the stopper in the gear shift cam groove
      and tighten the stopper bolt.
    · Rotate the transmission drum to make
      sure that the stopper operates properly.

                                                             Gear Shift Cam Stopper

 Install the gear shift spindle and washer.
 During installation, make sure that the return
 spring aligns with the crankcase tab.




                                                  Gear Shift Spindle
 Install the oil pump body and insert the pump                  Drive Gear
 shaft.
 Install the balance shaft drive gear and
 woodruff key onto the crankshaft.
 Install the balance shaft driven gear and
 woodruff key onto the balance shaft.
 Be sure to align the punch marks on the
    drive and driven gears before installing
    the woodruff key onto the balance shaft.



                                                           Pump Shaft

9-7
