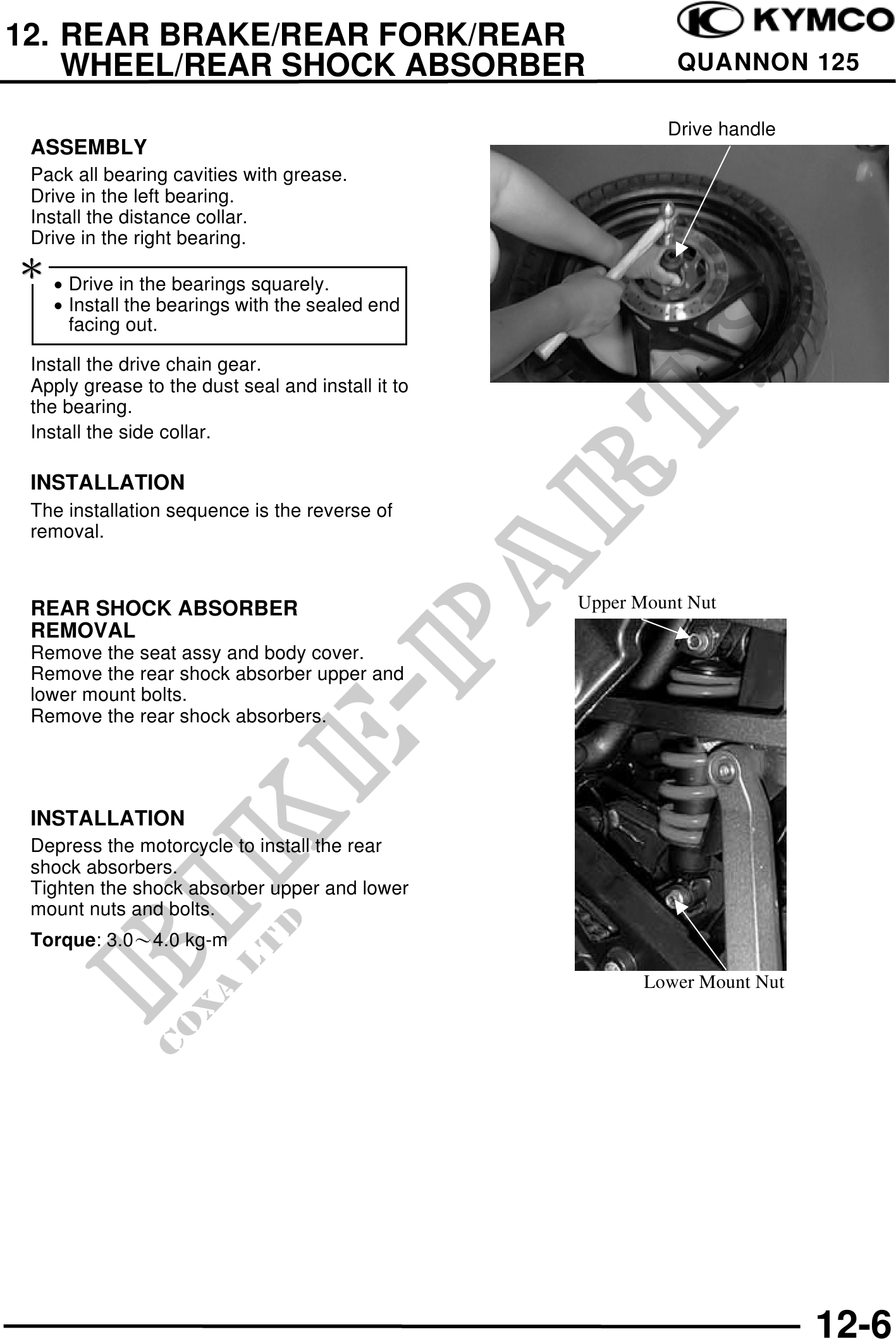

12. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER QUANNON 125
Drive handle
ASSEMBLY
Pack all bearing cavities with grease.
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
· Drive in the bearings squarely.
· Install the bearings with the sealed end
facing out.
Install the drive chain gear.
Apply grease to the dust seal and install it to
the bearing.
Install the side collar.
INSTALLATION
The installation sequence is the reverse of
removal.
REAR SHOCK ABSORBER Upper Mount Nut
REMOVAL
Remove the seat assy and body cover.
Remove the rear shock absorber upper and
lower mount bolts.
Remove the rear shock absorbers.
INSTALLATION
Depress the motorcycle to install the rear
shock absorbers.
Tighten the shock absorber upper and lower
mount nuts and bolts.
Torque: 3.04.0 kg-m
Lower Mount Nut
12-6
