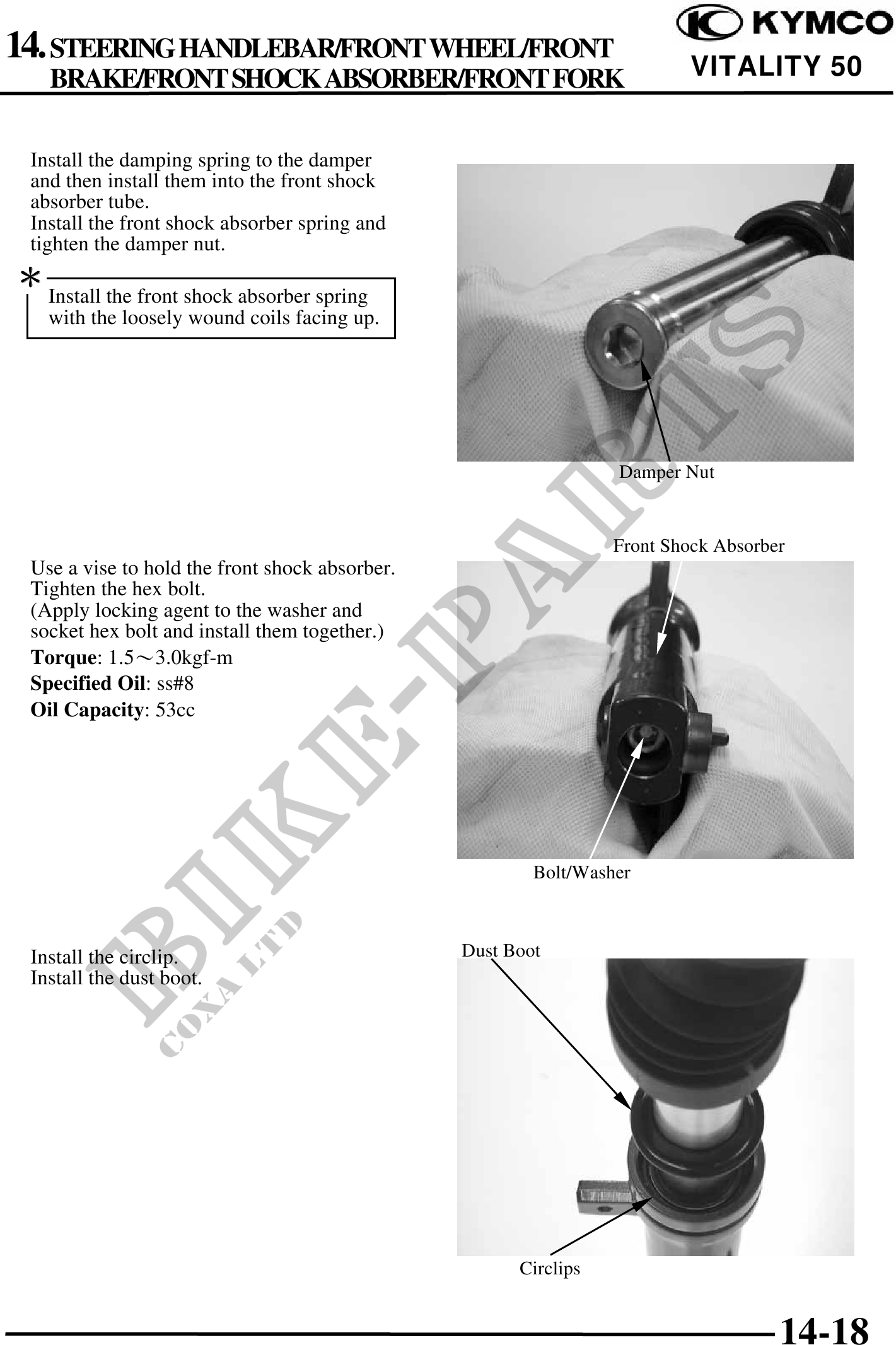

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT                                  VITALITY 50
   BRAKE/FRONT SHOCK ABSORBER/FRONT FORK

 Install the damping spring to the damper
 and then install them into the front shock
 absorber tube.
 Install the front shock absorber spring and
 tighten the damper nut.

   Install the front shock absorber spring
   with the loosely wound coils facing up.




                                                                 Damper Nut


                                                                 Front Shock Absorber
 Use a vise to hold the front shock absorber.
 Tighten the hex bolt.
 (Apply locking agent to the washer and
 socket hex bolt and install them together.)
 Torque: 1.53.0kgf-m
 Specified Oil: ss#8
 Oil Capacity: 53cc




                                                        Bolt/Washer



 Install the circlip.                           Dust Boot
 Install the dust boot.




                                                      Circlips
