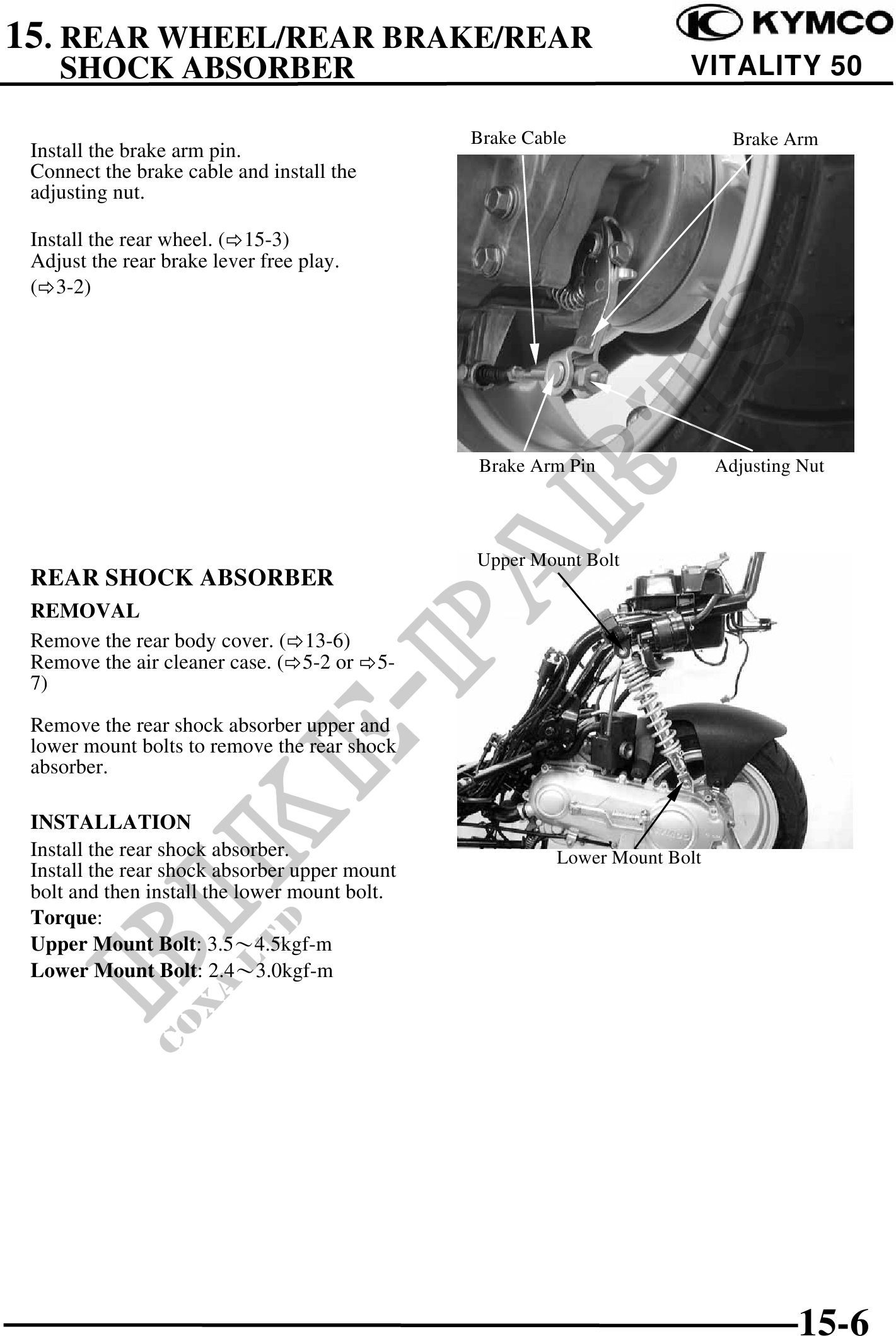

          15. REAR WHEEL/REAR BRAKE/REAR
    SHOCK ABSORBER                                                     VITALITY 50

                                                Brake Cable                   Brake Arm
 Install the brake arm pin.
 Connect the brake cable and install the
 adjusting nut.

 Install the rear wheel. ( 15-3)
 Adjust the rear brake lever free play.
 ( 3-2)




                                                Brake Arm Pin               Adjusting Nut



                                                Upper Mount Bolt
 REAR SHOCK ABSORBER
 REMOVAL
 Remove the rear body cover. ( 13-6)
 Remove the air cleaner case. ( 5-2 or     5-
 7)

 Remove the rear shock absorber upper and
 lower mount bolts to remove the rear shock
 absorber.

 INSTALLATION
 Install the rear shock absorber.                        Lower Mount Bolt
 Install the rear shock absorber upper mount
 bolt and then install the lower mount bolt.
 Torque:
 Upper Mount Bolt: 3.54.5kgf-m
 Lower Mount Bolt: 2.43.0kgf-m




                                                                                     15-6
