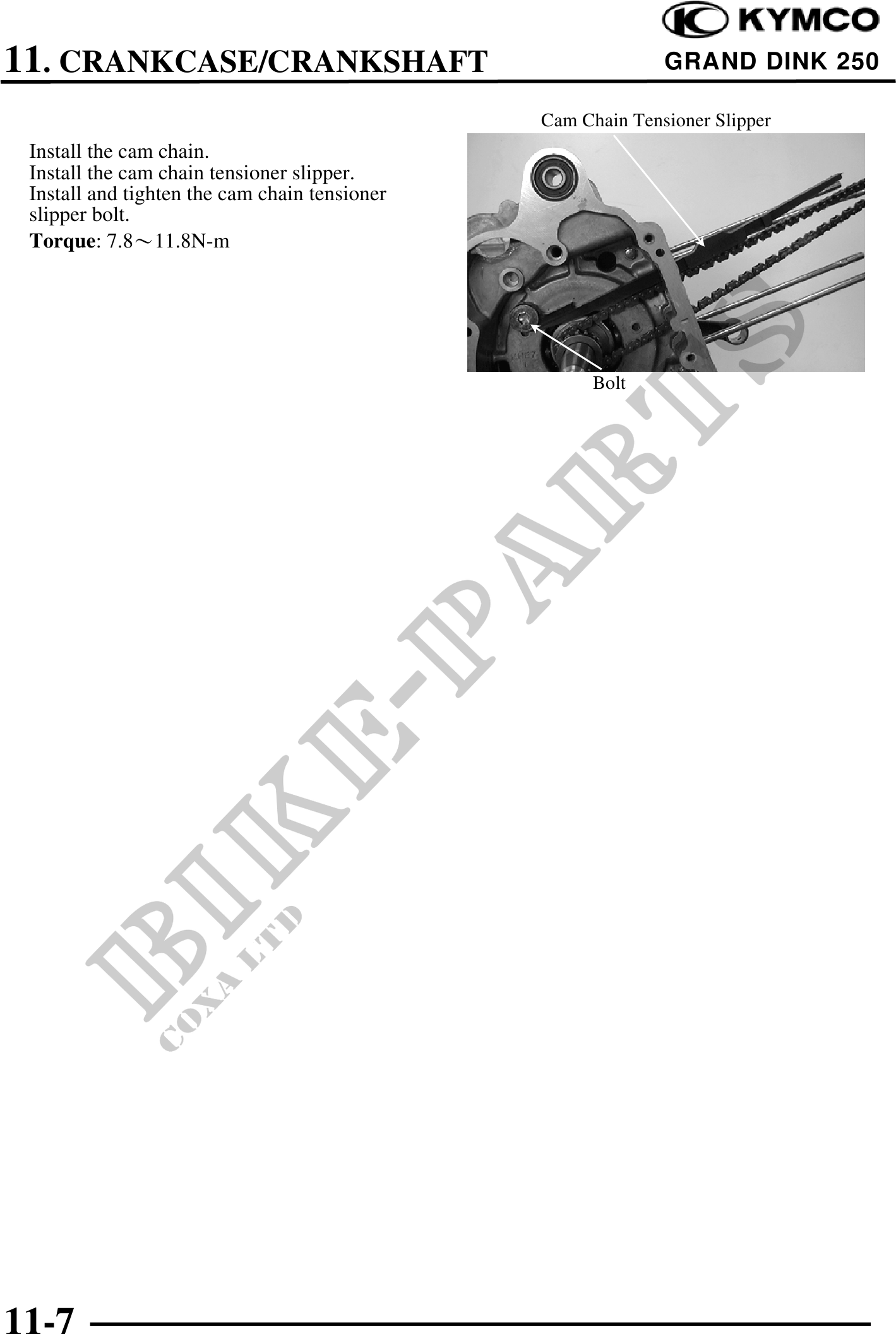

          11. CRANKCASE/CRANKSHAFT                                     GRAND DINK 250

                                               Cam Chain Tensioner Slipper
 Install the cam chain.
 Install the cam chain tensioner slipper.
 Install and tighten the cam chain tensioner
 slipper bolt.
 Torque: 7.811.8N-m




                                                     Bolt
