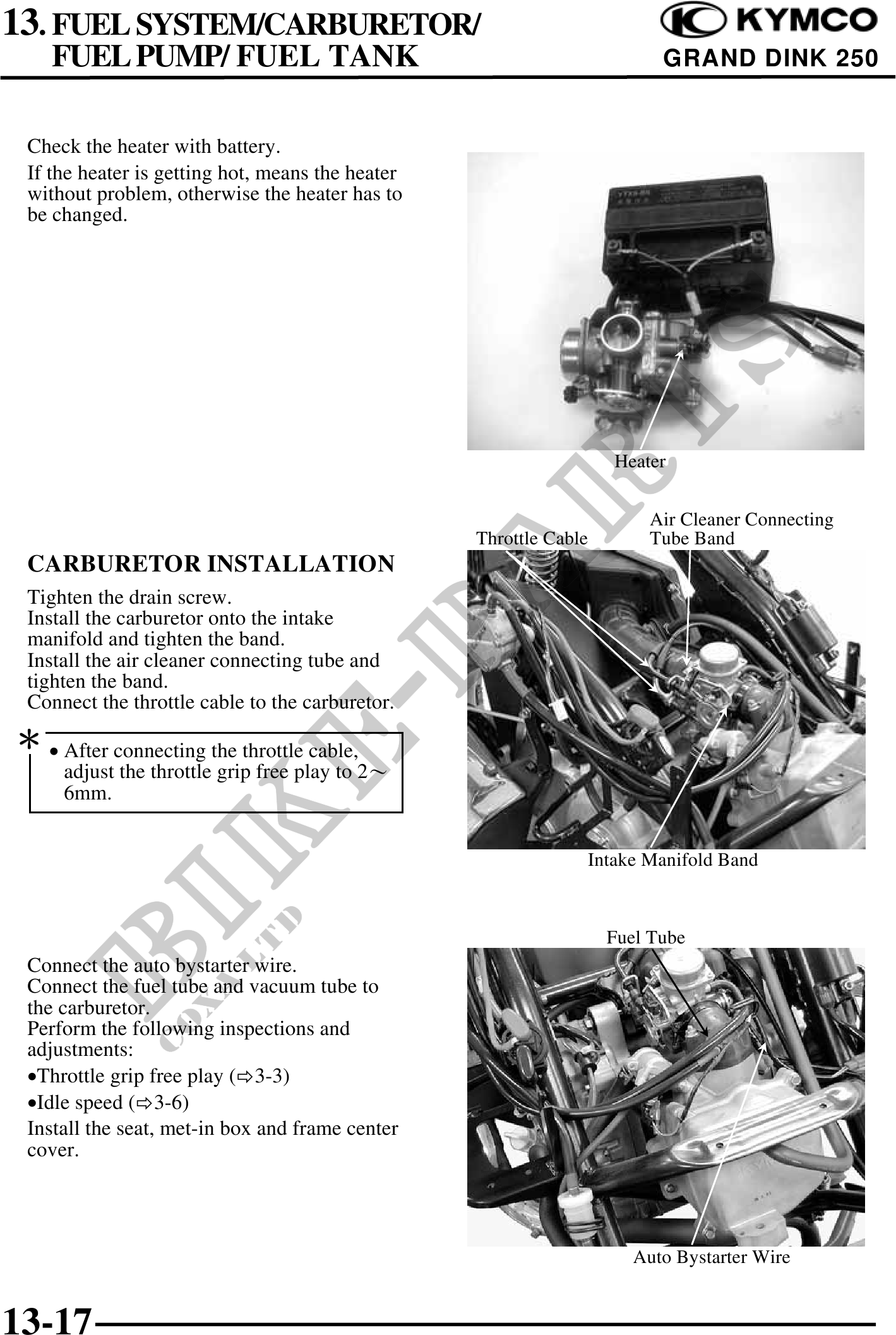

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK                                                 GRAND DINK 250


 Check the heater with battery.
 If the heater is getting hot, means the heater
 without problem, otherwise the heater has to
 be changed.




                                                                   Heater


                                                                        Air Cleaner Connecting
                                                  Throttle Cable        Tube Band
 CARBURETOR INSTALLATION
 Tighten the drain screw.
 Install the carburetor onto the intake
 manifold and tighten the band.
 Install the air cleaner connecting tube and
 tighten the band.
 Connect the throttle cable to the carburetor.
 · After connecting the throttle cable,
     adjust the throttle grip free play to 2
     6mm.


                                                               Intake Manifold Band



                                                                   Fuel Tube
 Connect the auto bystarter wire.
 Connect the fuel tube and vacuum tube to
 the carburetor.
 Perform the following inspections and
 adjustments:
 ·Throttle grip free play ( 3-3)
 ·Idle speed ( 3-6)
 Install the seat, met-in box and frame center
 cover.




                                                                      Auto Bystarter Wire


13-17
