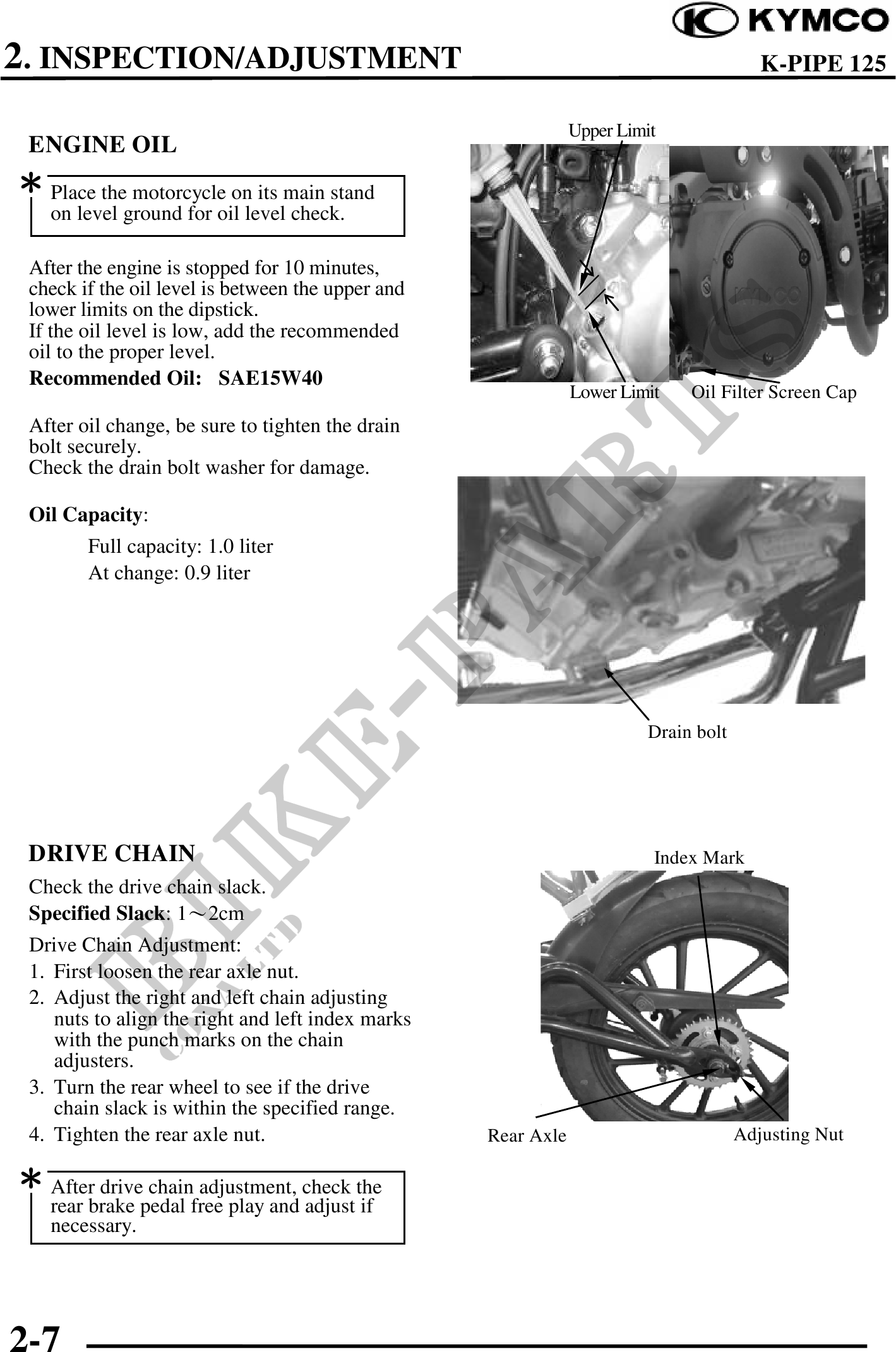

2. INSPECTION/ADJUSTMENT K-PIPE 125
Upper Limit
ENGINE OIL
Place the motorcycle on its main stand
on level ground for oil level check.
After the engine is stopped for 10 minutes,
check if the oil level is between the upper and
lower limits on the dipstick.
If the oil level is low, add the recommended
oil to the proper level.
Recommended Oil: SAE15W40
Lower Limit Oil Filter Screen Cap
After oil change, be sure to tighten the drain
bolt securely.
Check the drain bolt washer for damage.
Oil Capacity:
Full capacity: 1.0 liter
At change: 0.9 liter
Drain bolt
DRIVE CHAIN Index Mark
Check the drive chain slack.
Specified Slack: 12cm
Drive Chain Adjustment:
1. First loosen the rear axle nut.
2. Adjust the right and left chain adjusting
nuts to align the right and left index marks
with the punch marks on the chain
adjusters.
3. Turn the rear wheel to see if the drive
chain slack is within the specified range.
4. Tighten the rear axle nut. Rear Axle Adjusting Nut
After drive chain adjustment, check the
rear brake pedal free play and adjust if
necessary.
2-7
