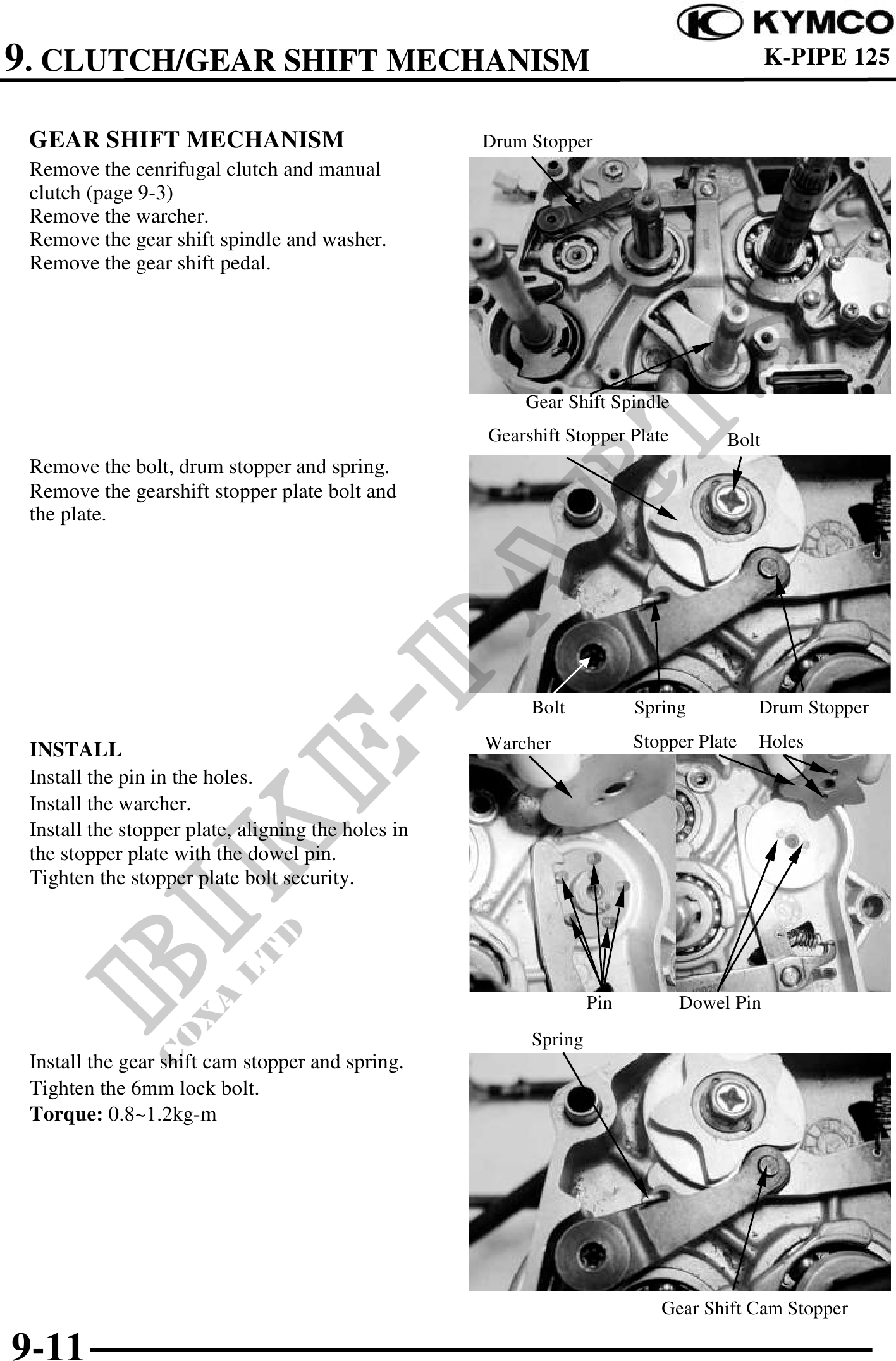

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125
GEAR SHIFT MECHANISM Drum Stopper
Remove the cenrifugal clutch and manual
clutch (page 9-3)
Remove the warcher.
Remove the gear shift spindle and washer.
Remove the gear shift pedal.
Gear Shift Spindle
Gearshift Stopper Plate Bolt
Remove the bolt, drum stopper and spring.
Remove the gearshift stopper plate bolt and
the plate.
Bolt Spring Drum Stopper
INSTALL Warcher Stopper Plate Holes
Install the pin in the holes.
Install the warcher.
Install the stopper plate, aligning the holes in
the stopper plate with the dowel pin.
Tighten the stopper plate bolt security.
Pin Dowel Pin
Spring
Install the gear shift cam stopper and spring.
Tighten the 6mm lock bolt.
Torque: 0.8~1.2kg-m
Gear Shift Cam Stopper
9-11
