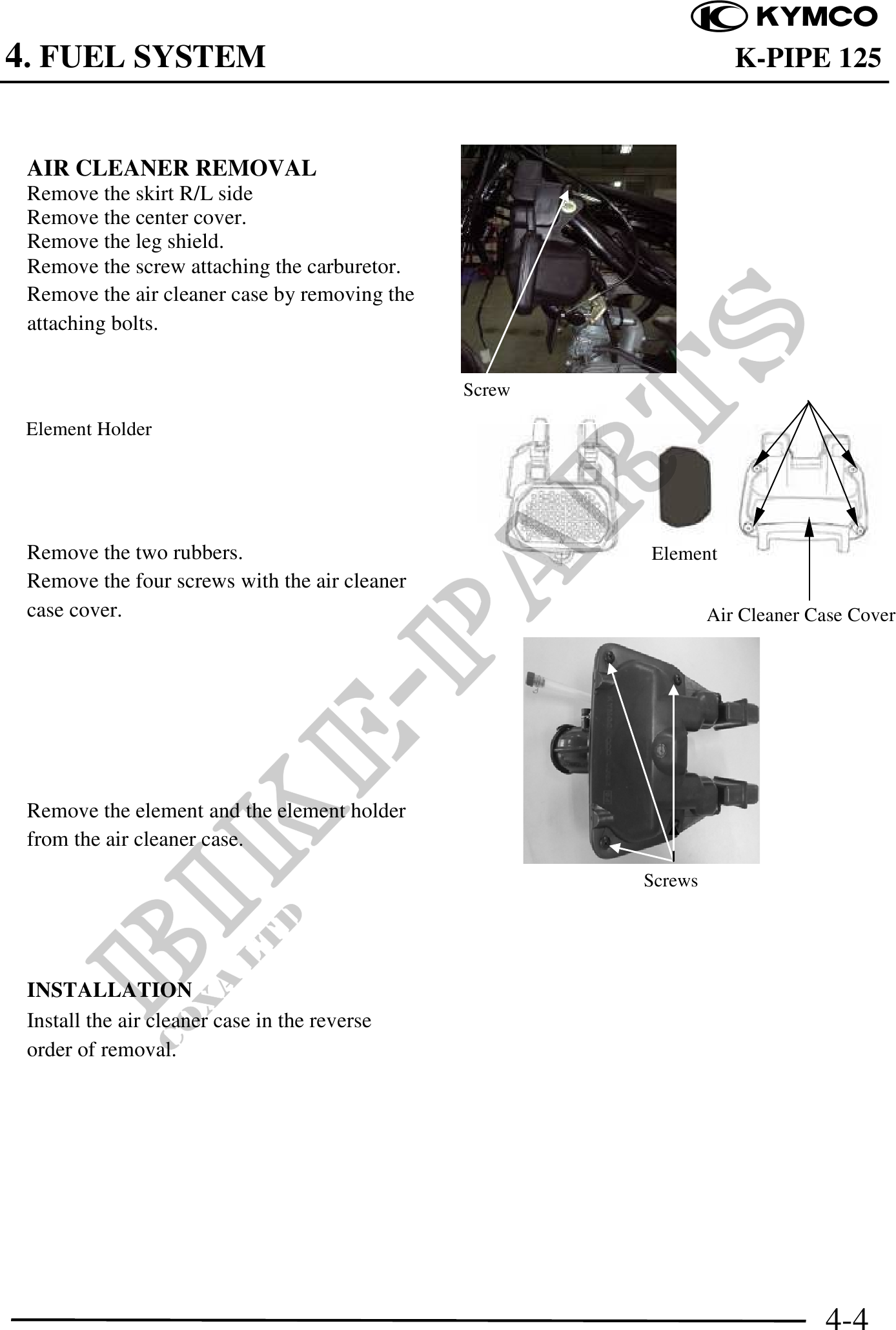

4. FUEL SYSTEM K-PIPE 125
AIR CLEANER REMOVAL
Remove the skirt R/L side
Remove the center cover.
Remove the leg shield.
Remove the screw attaching the carburetor.
Remove the air cleaner case by removing the
attaching bolts.
Screw
Element Holder
Remove the two rubbers. Element
Remove the four screws with the air cleaner
case cover. Air Cleaner Case Cover
Remove the element and the element holder
from the air cleaner case.
Screws
INSTALLATION
Install the air cleaner case in the reverse
order of removal.
4-4
