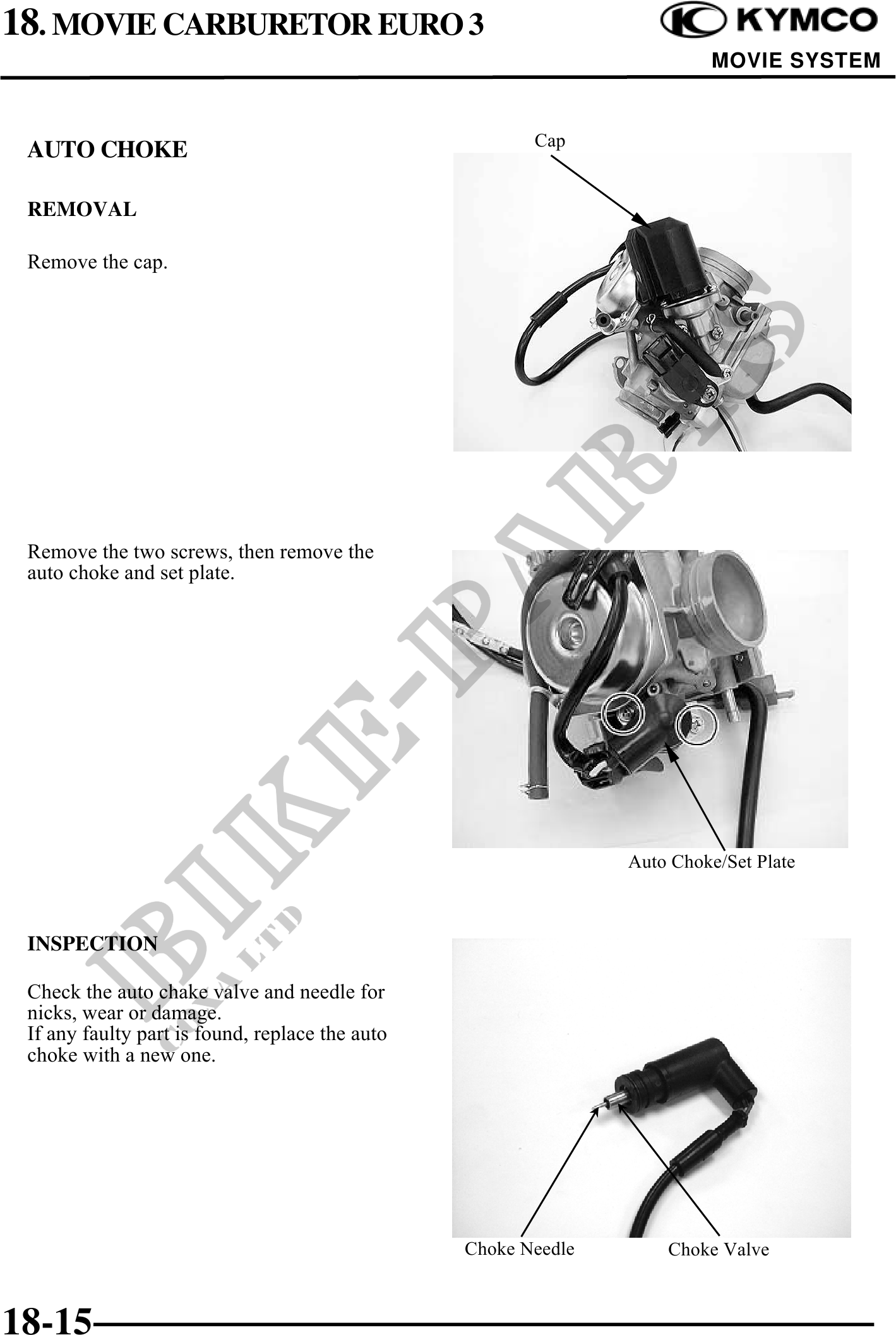

          18. MOVIE CARBURETOR EURO 3
                                                                         MOVIE SYSTEM


                                                        Cap
 AUTO CHOKE

 REMOVAL

 Remove the cap.




 Remove the two screws, then remove the
 auto choke and set plate.




                                                                Auto Choke/Set Plate



 INSPECTION

 Check the auto chake valve and needle for
 nicks, wear or damage.
 If any faulty part is found, replace the auto
 choke with a new one.




                                                 Choke Needle       Choke Valve



18-15
