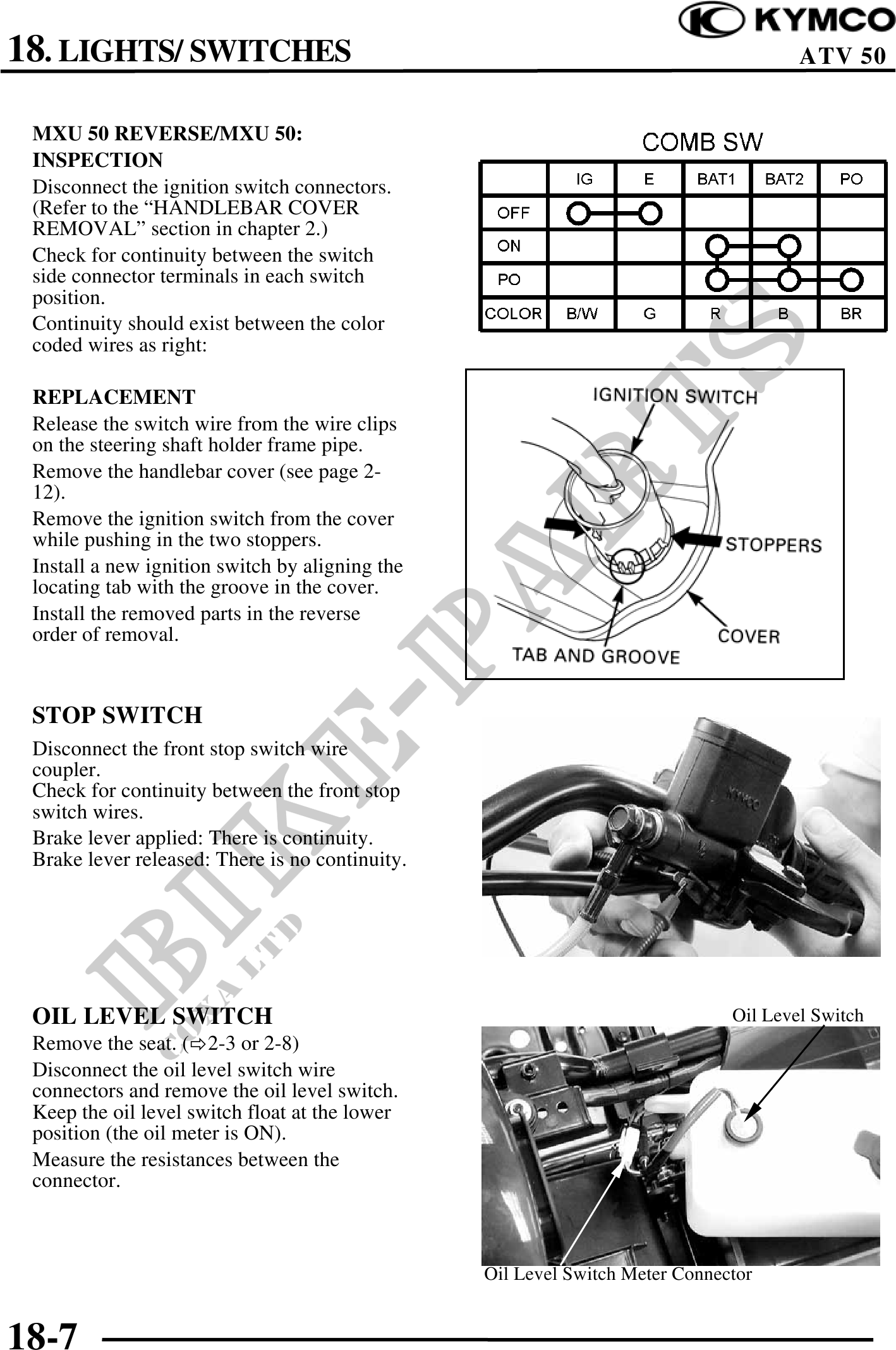

18. LIGHTS/ SWITCHES ATV 50
MXU 50 REVERSE/MXU 50:
INSPECTION
Disconnect the ignition switch connectors.
(Refer to the "HANDLEBAR COVER
REMOVAL" section in chapter 2.)
Check for continuity between the switch
side connector terminals in each switch
position.
Continuity should exist between the color
coded wires as right:
REPLACEMENT
Release the switch wire from the wire clips
on the steering shaft holder frame pipe.
Remove the handlebar cover (see page 2-
12).
Remove the ignition switch from the cover
while pushing in the two stoppers.
Install a new ignition switch by aligning the
locating tab with the groove in the cover.
Install the removed parts in the reverse
order of removal.
STOP SWITCH
Disconnect the front stop switch wire
coupler.
Check for continuity between the front stop
switch wires.
Brake lever applied: There is continuity.
Brake lever released: There is no continuity.
OIL LEVEL SWITCH Oil Level Switch
Remove the seat. ( 2-3 or 2-8)
Disconnect the oil level switch wire
connectors and remove the oil level switch.
Keep the oil level switch float at the lower
position (the oil meter is ON).
Measure the resistances between the
connector.
Oil Level Switch Meter Connector
18-7
