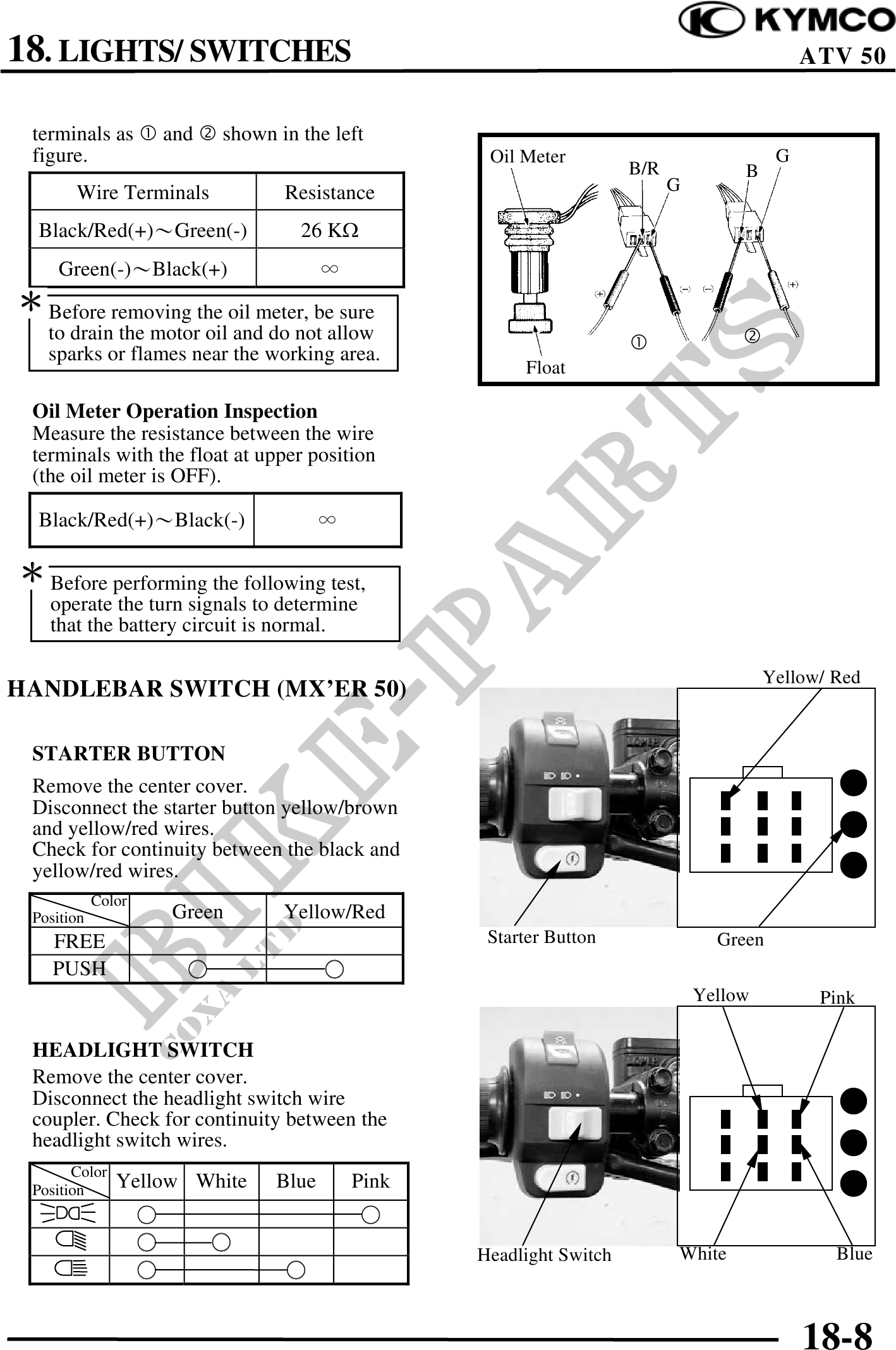

          18. LIGHTS/ SWITCHES                                                                           ATV 50


 terminals as          and   shown in the left
 figure.                                             Oil Meter                             G
                                                                       B/R            B
       Wire Terminals               Resistance                               G

  Black/Red(+)Green(-)                26 K
     Green(-)Black(+)
 Before removing the oil meter, be sure
   to drain the motor oil and do not allow
   sparks or flames near the working area.
                                                         Float

 Oil Meter Operation Inspection
 Measure the resistance between the wire
 terminals with the float at upper position
 (the oil meter is OFF).

  Black/Red(+)Black(-)

 Before performing the following test,
   operate the turn signals to determine
   that the battery circuit is normal.

                                                                                          Yellow/ Red
HANDLEBAR SWITCH (MX'ER 50)

 STARTER BUTTON
 Remove the center cover.
 Disconnect the starter button yellow/brown
 and yellow/red wires.
 Check for continuity between the black and
 yellow/red wires.
            Color
 Position              Green        Yellow/Red
    FREE                                             Starter Button                Green
    PUSH
                                                                                 Yellow         Pink

 HEADLIGHT SWITCH
 Remove the center cover.
 Disconnect the headlight switch wire
 coupler. Check for continuity between the
 headlight switch wires.
       Color
 Position      Yellow White        Blue      Pink


                                                    Headlight Switch         White                Blue
