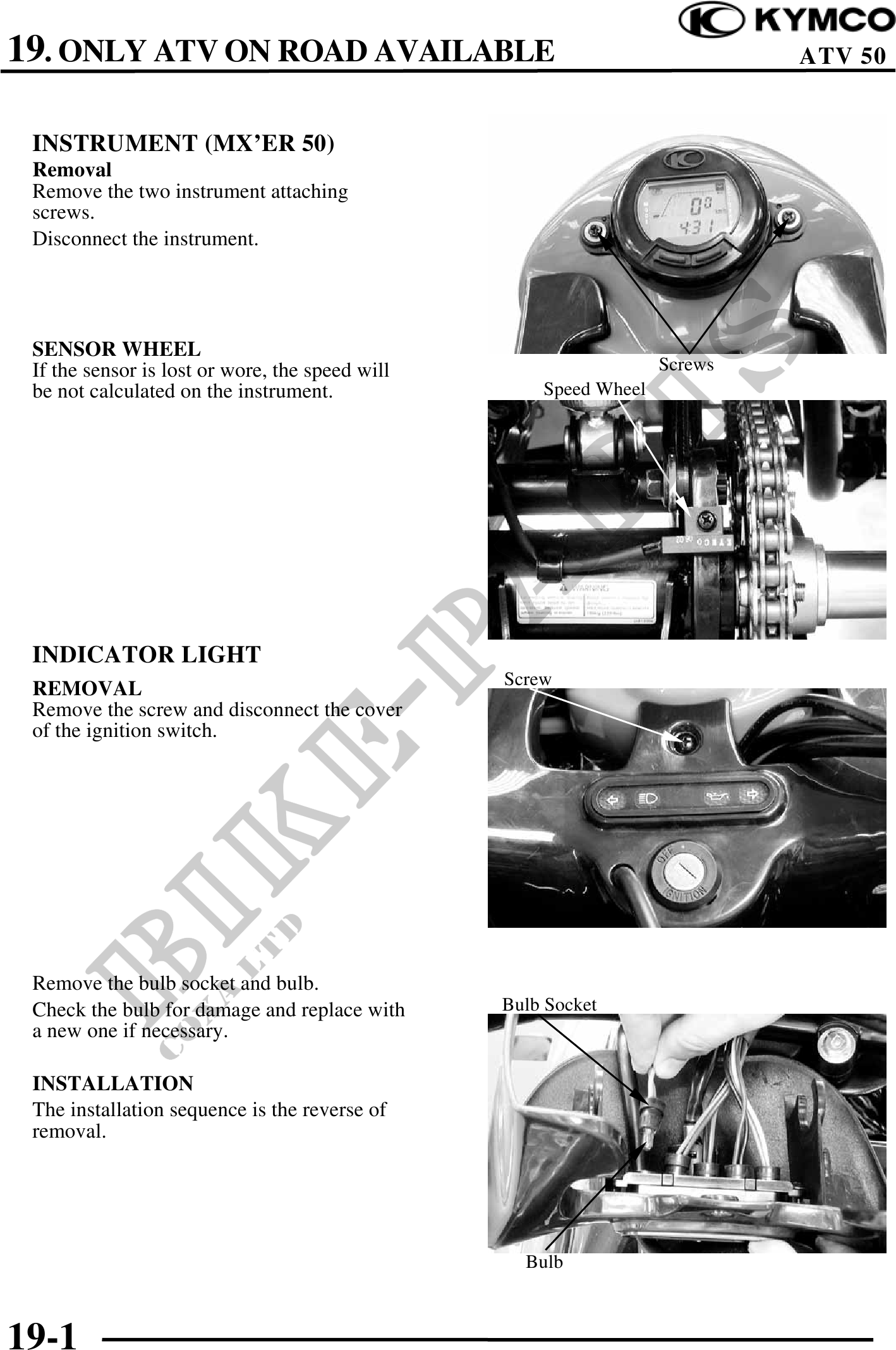

19. ONLY ATV ON ROAD AVAILABLE ATV 50
INSTRUMENT (MX'ER 50)
Removal
Remove the two instrument attaching
screws.
Disconnect the instrument.
SENSOR WHEEL
If the sensor is lost or wore, the speed will Screws
be not calculated on the instrument. Speed Wheel
INDICATOR LIGHT
Screw
REMOVAL
Remove the screw and disconnect the cover
of the ignition switch.
Remove the bulb socket and bulb.
Check the bulb for damage and replace with Bulb Socket
a new one if necessary.
INSTALLATION
The installation sequence is the reverse of
removal.
Bulb
19-1
