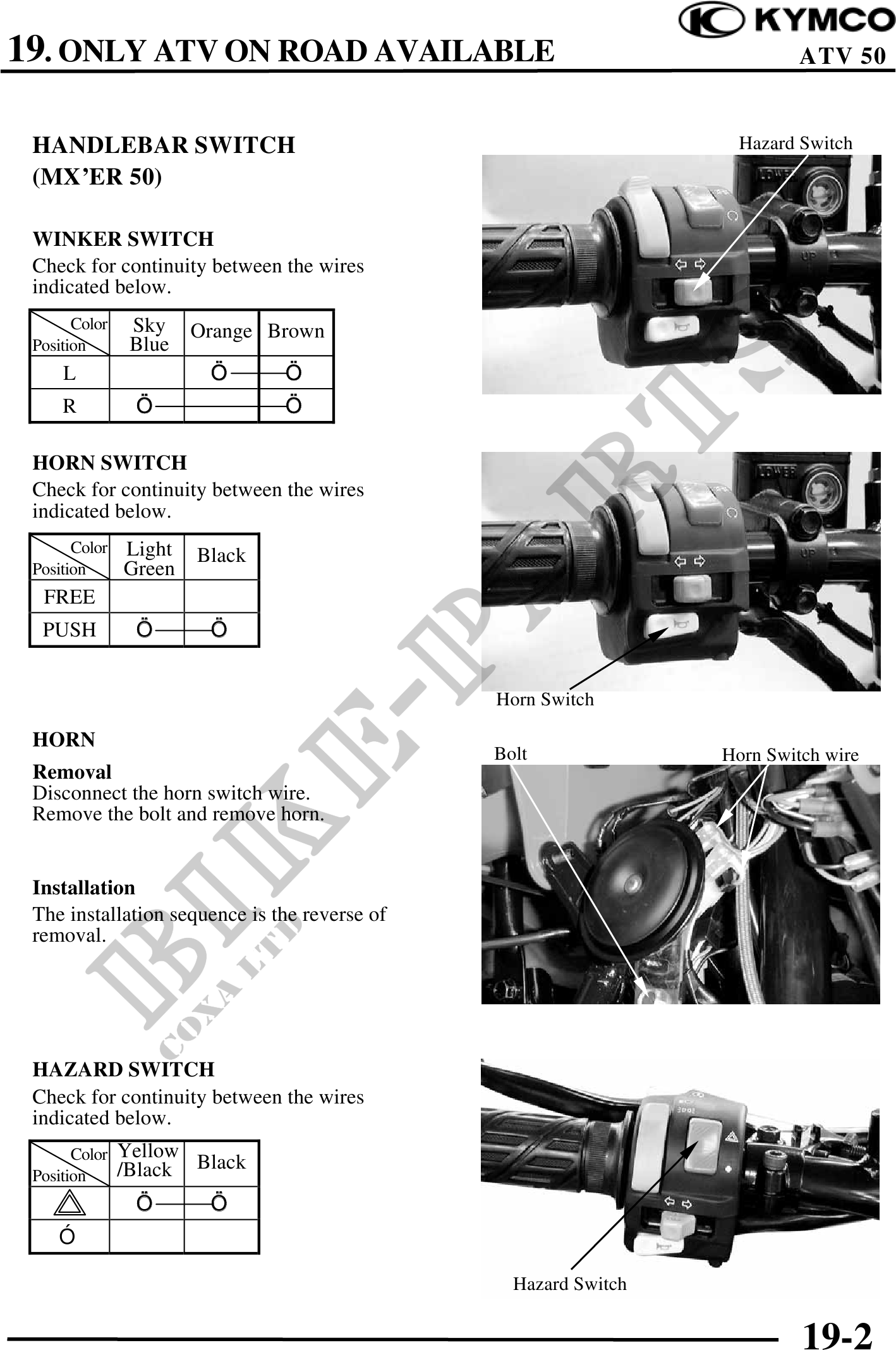

19. ONLY ATV ON ROAD AVAILABLE ATV 50
HANDLEBAR SWITCH Hazard Switch
(MX'ER 50)
WINKER SWITCH
Check for continuity between the wires
indicated below.
Color Sky Orange Brown
Position Blue
L
R
HORN SWITCH
Check for continuity between the wires
indicated below.
Color Light Black
Position Green
FREE
PUSH
Horn Switch
HORN
Bolt Horn Switch wire
Removal
Disconnect the horn switch wire.
Remove the bolt and remove horn.
Installation
The installation sequence is the reverse of
removal.
HAZARD SWITCH
Check for continuity between the wires
indicated below.
Color Yellow Black
Position /Black
Hazard Switch
19-2
