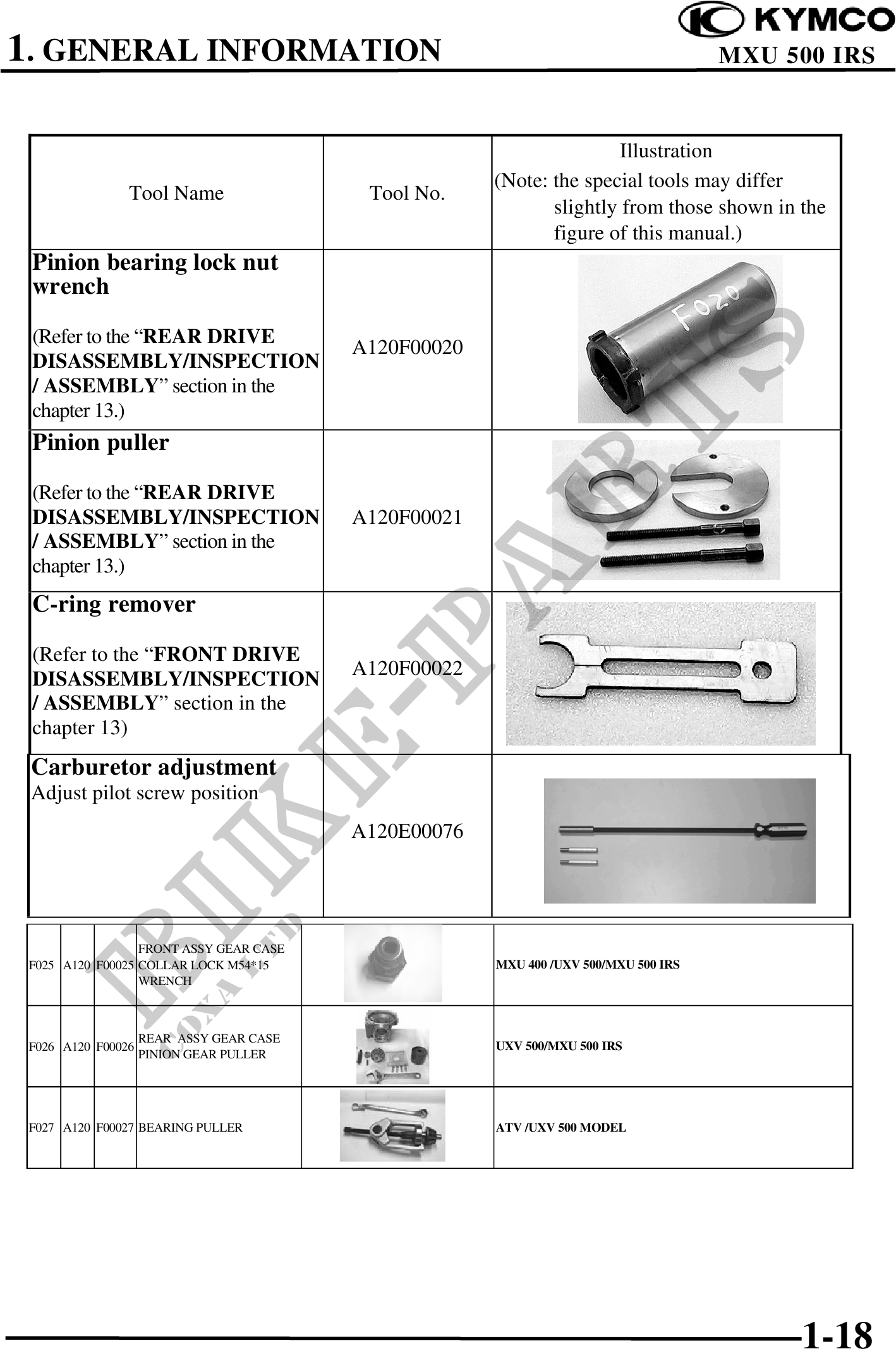

1. GENERAL INFORMATION MXU 500 IRS
Illustration
(Note: the special tools may differ
Tool Name Tool No.
slightly from those shown in the
figure of this manual.)
Pinion bearing lock nut
wrench
(Refer to the "REAR DRIVE
A120F00020
DISASSEMBLY/INSPECTION
/ ASSEMBLY" section in the
chapter 13.)
Pinion puller
(Refer to the "REAR DRIVE
DISASSEMBLY/INSPECTION A120F00021
/ ASSEMBLY" section in the
chapter 13.)
C-ring remover
(Refer to the "FRONT DRIVE
DISASSEMBLY/INSPECTION A120F00022
/ ASSEMBLY" section in the
chapter 13)
Carburetor adjustment
Adjust pilot screw position
A120E00076
FRONT ASSY GEAR CASE
F025 A120 F00025 COLLAR LOCK M54*15 MXU 400 /UXV 500/MXU 500 IRS
WRENCH
REAR ASSY GEAR CASE
F026 A120 F00026 UXV 500/MXU 500 IRS
PINION GEAR PULLER
F027 A120 F00027 BEARING PULLER ATV /UXV 500 MODEL
1-18
