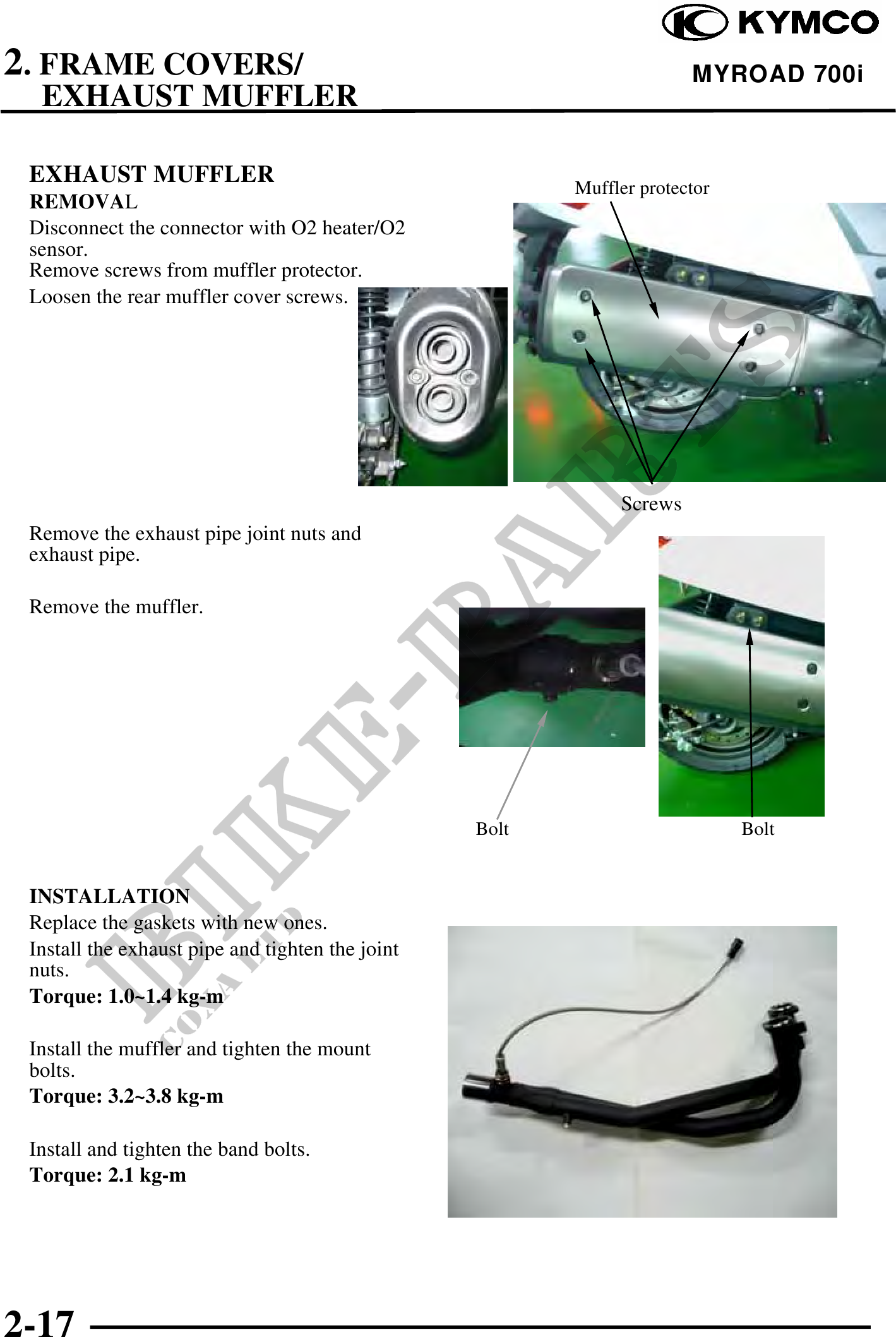

2. FRAME COVERS/ MYROAD 700i EXHAUST MUFFLER EXHAUST MUFFLER Muffler protector REMOVAL Disconnect the connector with O2 heater/O2 sensor. Remove screws from muffler protector. Loosen the rear muffler cover screws. Screws Remove the exhaust pipe joint nuts and exhaust pipe. Remove the muffler. Bolt Bolt INSTALLATION Replace the gaskets with new ones. Install the exhaust pipe and tighten the joint nuts. Torque: 1.0~1.4 kg-m Install the muffler and tighten the mount bolts. Torque: 3.2~3.8 kg-m Install and tighten the band bolts. Torque: 2.1 kg-m 2-17
