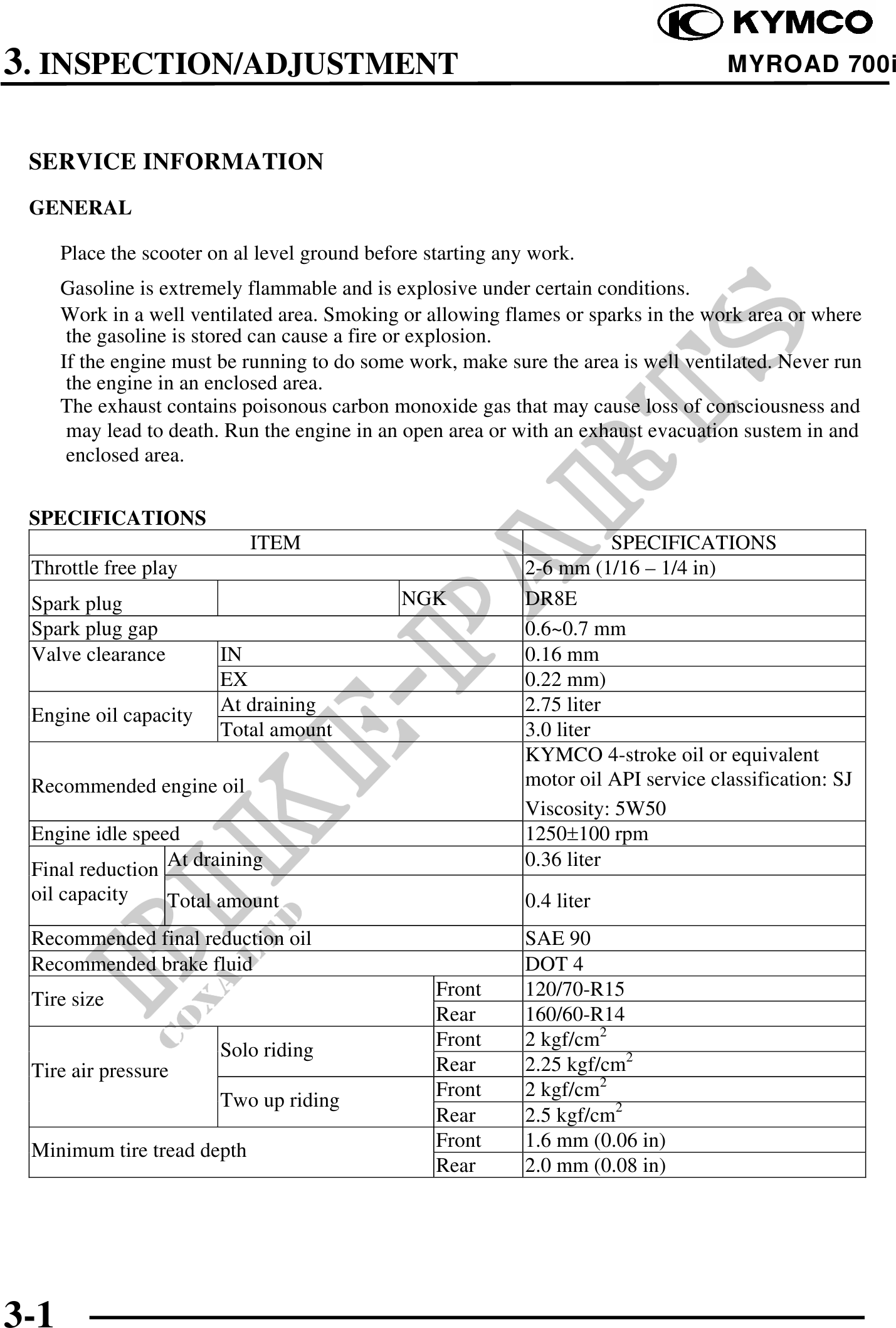

          3. INSPECTION/ADJUSTMENT                                                              MYROAD 700i


 SERVICE INFORMATION
 GENERAL

      Place the scooter on al level ground before starting any work.
      Gasoline is extremely flammable and is explosive under certain conditions.
      Work in a well ventilated area. Smoking or allowing flames or sparks in the work area or where
       the gasoline is stored can cause a fire or explosion.
      If the engine must be running to do some work, make sure the area is well ventilated. Never run
       the engine in an enclosed area.
      The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and
       may lead to death. Run the engine in an open area or with an exhaust evacuation sustem in and
       enclosed area.


 SPECIFICATIONS
                            ITEM                                         SPECIFICATIONS
 Throttle free play                                           2-6 mm (1/16 ­ 1/4 in)
 Spark plug                                    NGK            DR8E
 Spark plug gap                                               0.6~0.7 mm
 Valve clearance         IN                                   0.16 mm
                         EX                                   0.22 mm)
                         At draining                          2.75 liter
 Engine oil capacity
                         Total amount                         3.0 liter
                                                              KYMCO 4-stroke oil or equivalent
 Recommended engine oil                                       motor oil API service classification: SJ
                                                              Viscosity: 5W50
 Engine idle speed                                            1250100 rpm
 Final reduction At draining                                  0.36 liter
 oil capacity      Total amount                               0.4 liter
 Recommended final reduction oil                              SAE 90
 Recommended brake fluid                                      DOT 4
                                                   Front      120/70-R15
 Tire size
                                                   Rear       160/60-R14
                                                   Front      2 kgf/cm2
                         Solo riding
 Tire air pressure                                 Rear       2.25 kgf/cm2
                                                   Front      2 kgf/cm2
                         Two up riding
                                                   Rear       2.5 kgf/cm2
                                                   Front      1.6 mm (0.06 in)
 Minimum tire tread depth
                                                   Rear       2.0 mm (0.08 in)




3-1
