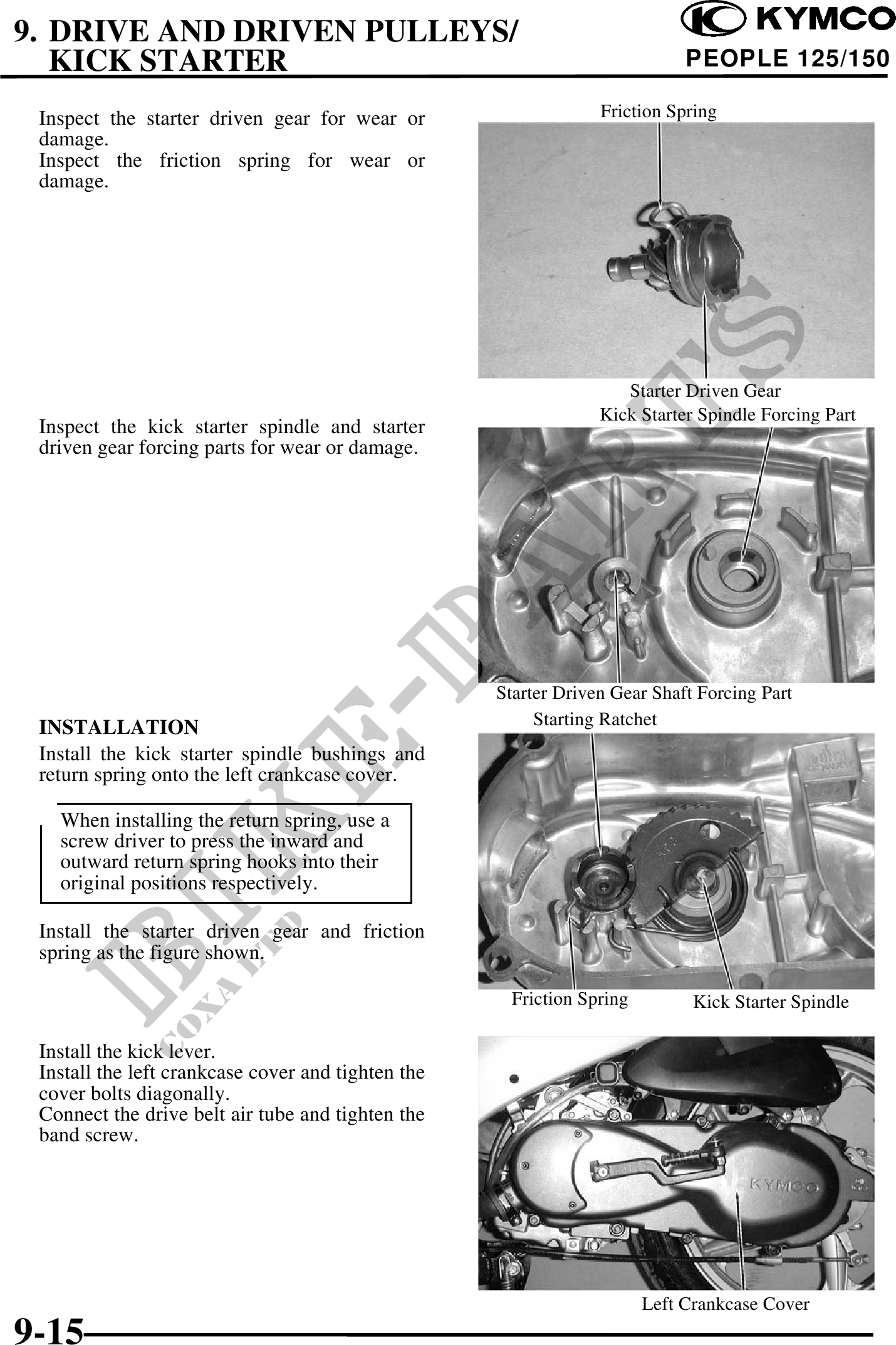

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER PEOPLE 125/150
Inspect the starter driven gear for wear or Friction Spring
damage.
Inspect the friction spring for wear or
damage.
Starter Driven Gear
Kick Starter Spindle Forcing Part
Inspect the kick starter spindle and starter
driven gear forcing parts for wear or damage.
Starter Driven Gear Shaft Forcing Part
INSTALLATION Starting Ratchet
Install the kick starter spindle bushings and
return spring onto the left crankcase cover.
When installing the return spring, use a
screw driver to press the inward and
outward return spring hooks into their
original positions respectively.
Install the starter driven gear and friction
spring as the figure shown.
Friction Spring Kick Starter Spindle
Install the kick lever.
Install the left crankcase cover and tighten the
cover bolts diagonally.
Connect the drive belt air tube and tighten the
band screw.
Left Crankcase Cover
9-15
