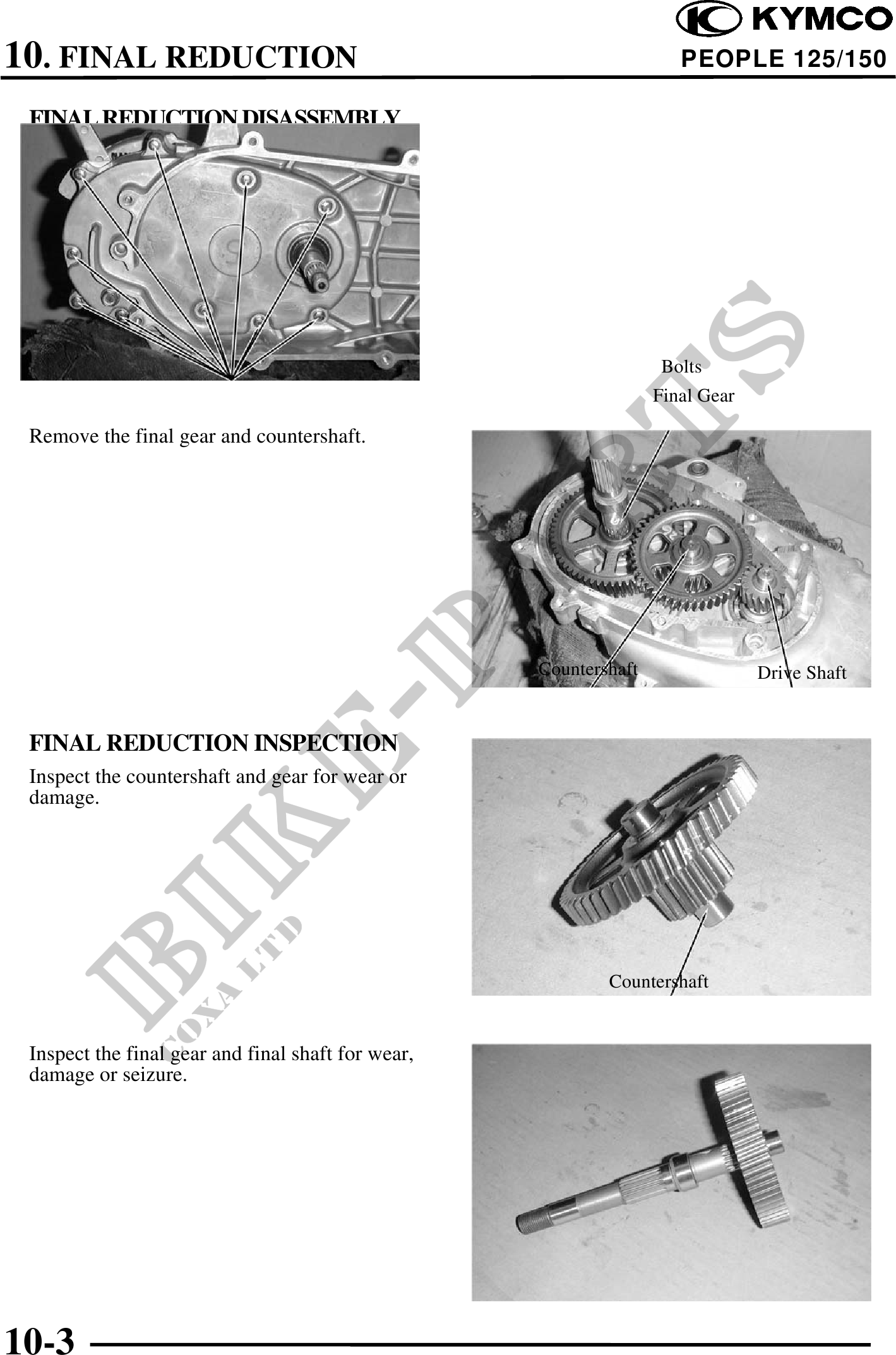

10. FINAL REDUCTION PEOPLE 125/150
FINAL REDUCTION DISASSEMBLY
Remove the exhaust muffler.
Remove the rear wheel. ( 13-2)
Remove the rear brake cable. ( 13-3)
Remove the left crankcase cover. ( 9-2)
Remove the clutch/driven pulley. ( 9-8)
Drain the transmission gear oil into a clean
container.
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins. Bolts
Final Gear
Remove the final gear and countershaft.
Countershaft Drive Shaft
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear or
damage.
Countershaft
Inspect the final gear and final shaft for wear,
damage or seizure.
10-3
