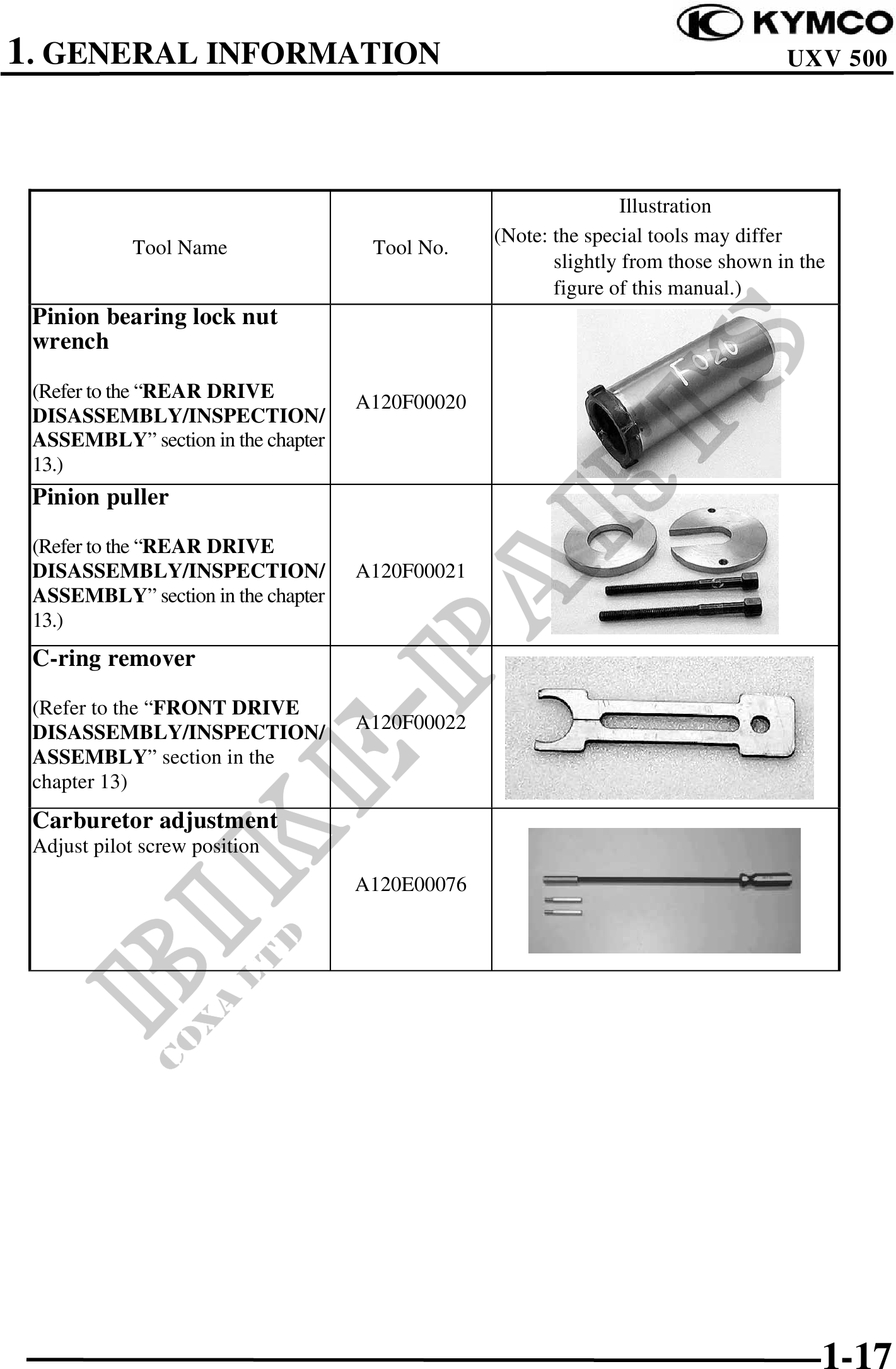

1. GENERAL INFORMATION UXV 500
Illustration
(Note: the special tools may differ
Tool Name Tool No.
slightly from those shown in the
figure of this manual.)
Pinion bearing lock nut
wrench
(Refer to the "REAR DRIVE
A120F00020
DISASSEMBLY/INSPECTION/
ASSEMBLY" section in the chapter
13.)
Pinion puller
(Refer to the "REAR DRIVE
DISASSEMBLY/INSPECTION/ A120F00021
ASSEMBLY" section in the chapter
13.)
C-ring remover
(Refer to the "FRONT DRIVE
DISASSEMBLY/INSPECTION/ A120F00022
ASSEMBLY" section in the
chapter 13)
Carburetor adjustment
Adjust pilot screw position
A120E00076
1-17
