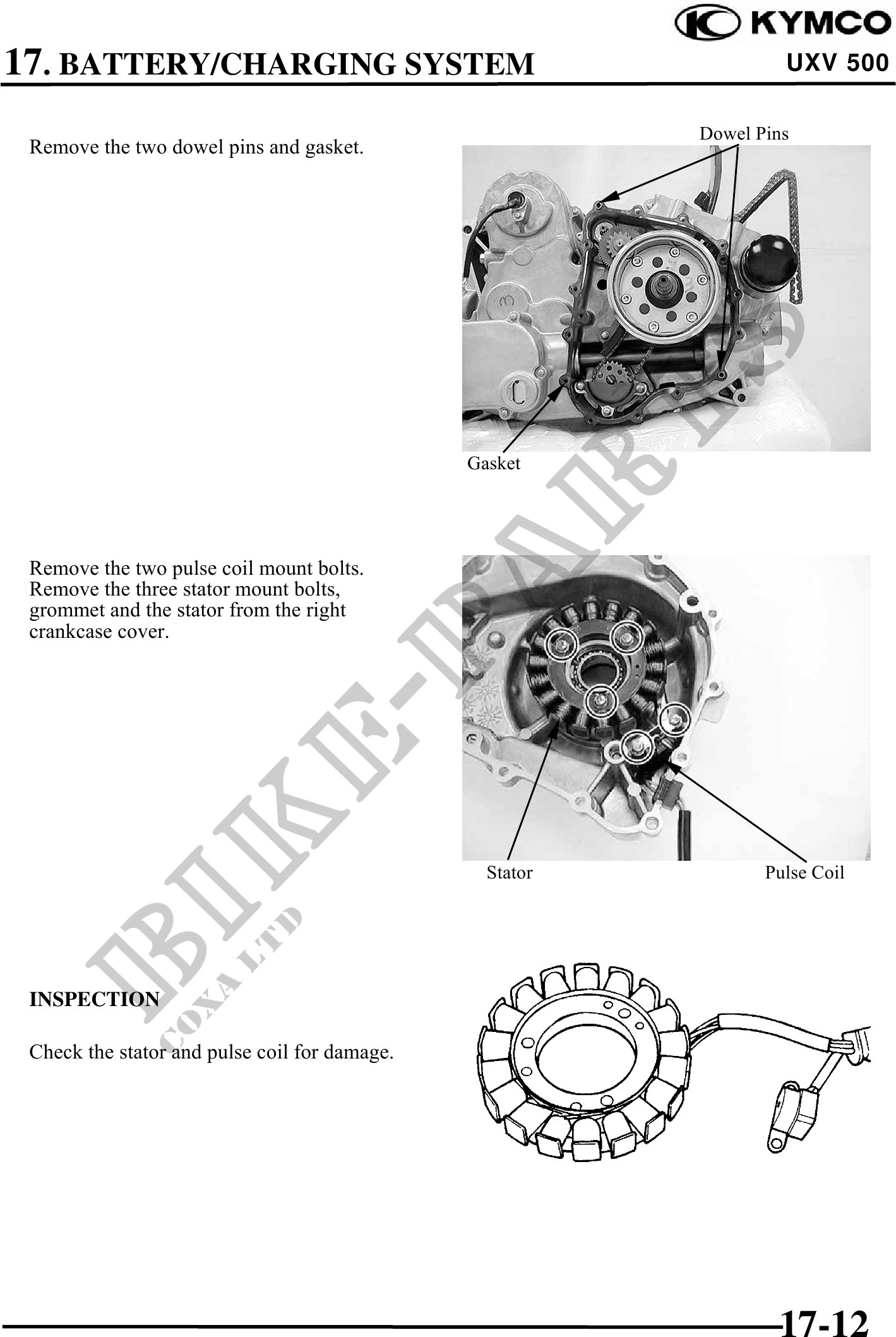

          17. BATTERY/CHARGING SYSTEM                                        UXV 500

                                                          Dowel Pins
 Remove the two dowel pins and gasket.




                                               Gasket




 Remove the two pulse coil mount bolts.
 Remove the three stator mount bolts,
 grommet and the stator from the right
 crankcase cover.




                                                 Stator          Pulse Coil




 INSPECTION

 Check the stator and pulse coil for damage.




                                                                  17-12
