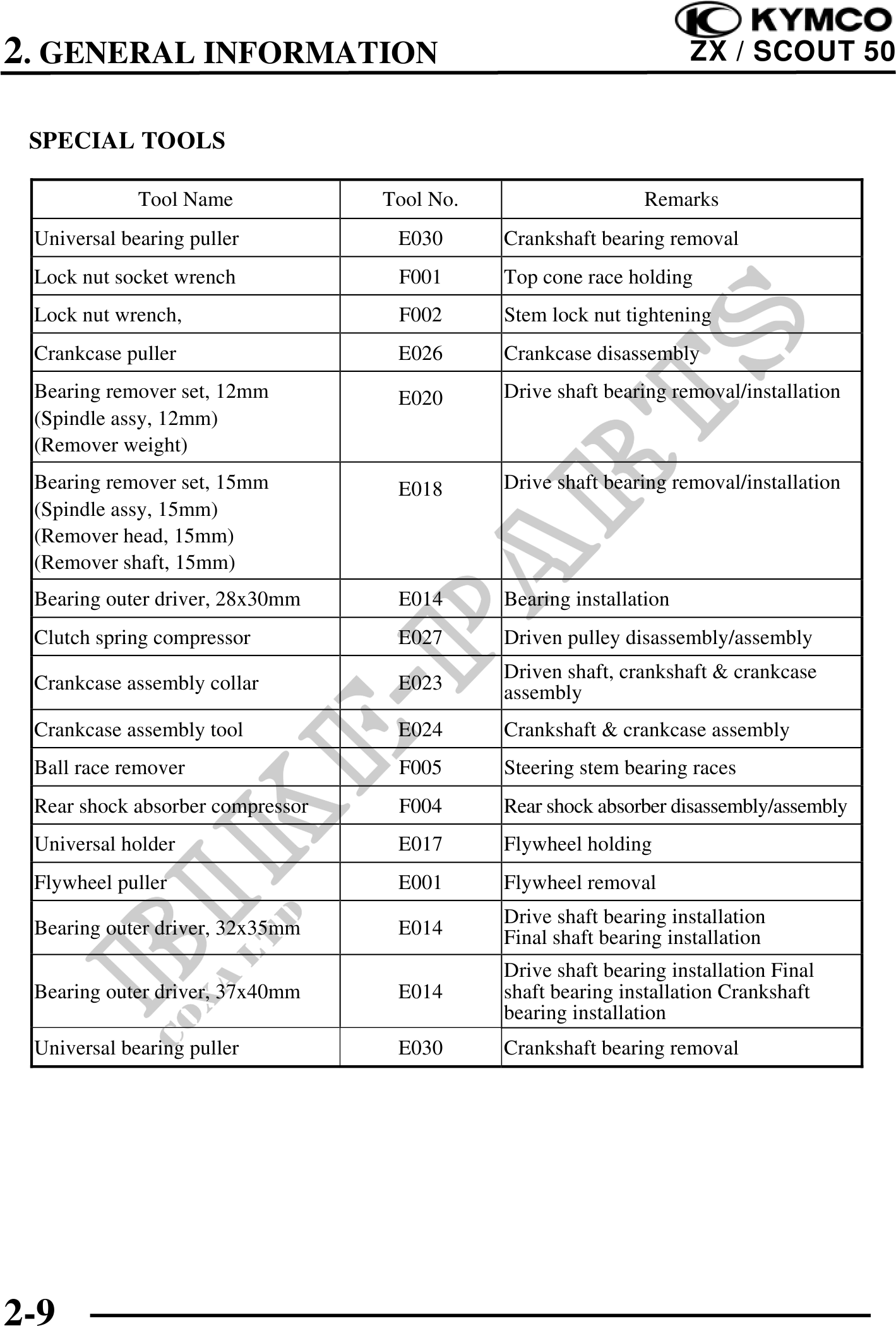

2. GENERAL INFORMATION ZX / SCOUT 50
SPECIAL TOOLS
Tool Name Tool No. Remarks
Universal bearing puller E030 Crankshaft bearing removal
Lock nut socket wrench F001 Top cone race holding
Lock nut wrench, F002 Stem lock nut tightening
Crankcase puller E026 Crankcase disassembly
Bearing remover set, 12mm E020 Drive shaft bearing removal/installation
(Spindle assy, 12mm)
(Remover weight)
Bearing remover set, 15mm E018 Drive shaft bearing removal/installation
(Spindle assy, 15mm)
(Remover head, 15mm)
(Remover shaft, 15mm)
Bearing outer driver, 28x30mm E014 Bearing installation
Clutch spring compressor E027 Driven pulley disassembly/assembly
Driven shaft, crankshaft & crankcase
Crankcase assembly collar E023 assembly
Crankcase assembly tool E024 Crankshaft & crankcase assembly
Ball race remover F005 Steering stem bearing races
Rear shock absorber compressor F004 Rear shock absorber disassembly/assembly
Universal holder E017 Flywheel holding
Flywheel puller E001 Flywheel removal
Drive shaft bearing installation
Bearing outer driver, 32x35mm E014 Final shaft bearing installation
Drive shaft bearing installation Final
Bearing outer driver, 37x40mm E014 shaft bearing installation Crankshaft
bearing installation
Universal bearing puller E030 Crankshaft bearing removal
2-9
