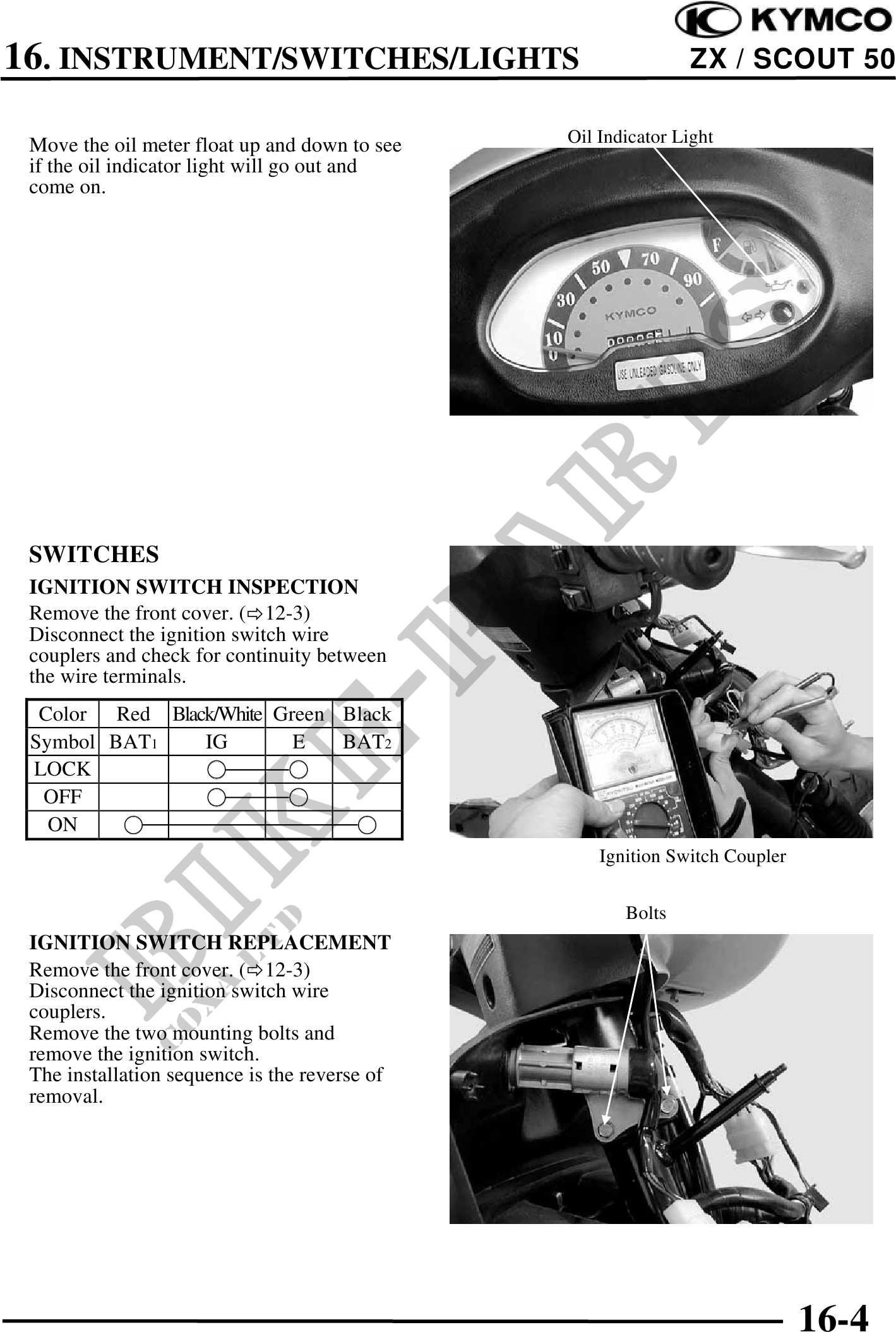

16. INSTRUMENT/SWITCHES/LIGHTS ZX / SCOUT 50
Move the oil meter float up and down to see Oil Indicator Light
if the oil indicator light will go out and
come on.
SWITCHES
IGNITION SWITCH INSPECTION
Remove the front cover. ( 12-3)
Disconnect the ignition switch wire
couplers and check for continuity between
the wire terminals.
Color Red Black/White Green Black
Symbol BAT1 IG E BAT2
LOCK
OFF
ON
Ignition Switch Coupler
Bolts
IGNITION SWITCH REPLACEMENT
Remove the front cover. ( 12-3)
Disconnect the ignition switch wire
couplers.
Remove the two mounting bolts and
remove the ignition switch.
The installation sequence is the reverse of
removal.
16-4
