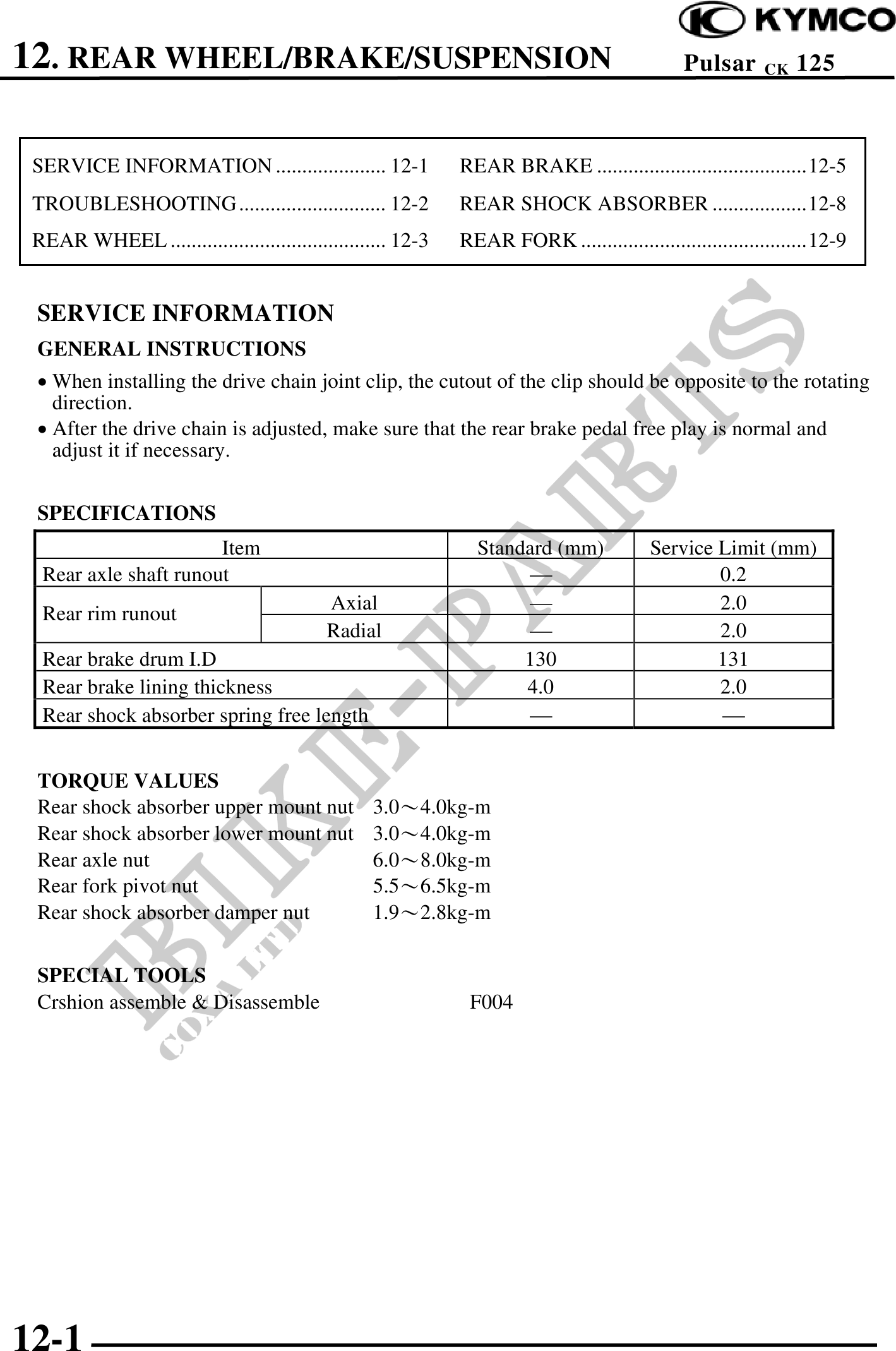

12. REAR WHEEL/BRAKE/SUSPENSION Pulsar CK 125
SERVICE INFORMATION ..................... 12-1 REAR BRAKE ........................................12-5
TROUBLESHOOTING ............................ 12-2 REAR SHOCK ABSORBER ..................12-8
REAR WHEEL ......................................... 12-3 REAR FORK ...........................................12-9
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When installing the drive chain joint clip, the cutout of the clip should be opposite to the rotating
direction.
· After the drive chain is adjusted, make sure that the rear brake pedal free play is normal and
adjust it if necessary.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Rear axle shaft runout 0.2
Axial 2.0
Rear rim runout
Radial 2.0
Rear brake drum I.D 130 131
Rear brake lining thickness 4.0 2.0
Rear shock absorber spring free length
TORQUE VALUES
Rear shock absorber upper mount nut 3.04.0kg-m
Rear shock absorber lower mount nut 3.04.0kg-m
Rear axle nut 6.08.0kg-m
Rear fork pivot nut 5.56.5kg-m
Rear shock absorber damper nut 1.92.8kg-m
SPECIAL TOOLS
Crshion assemble & Disassemble F004
12-1
