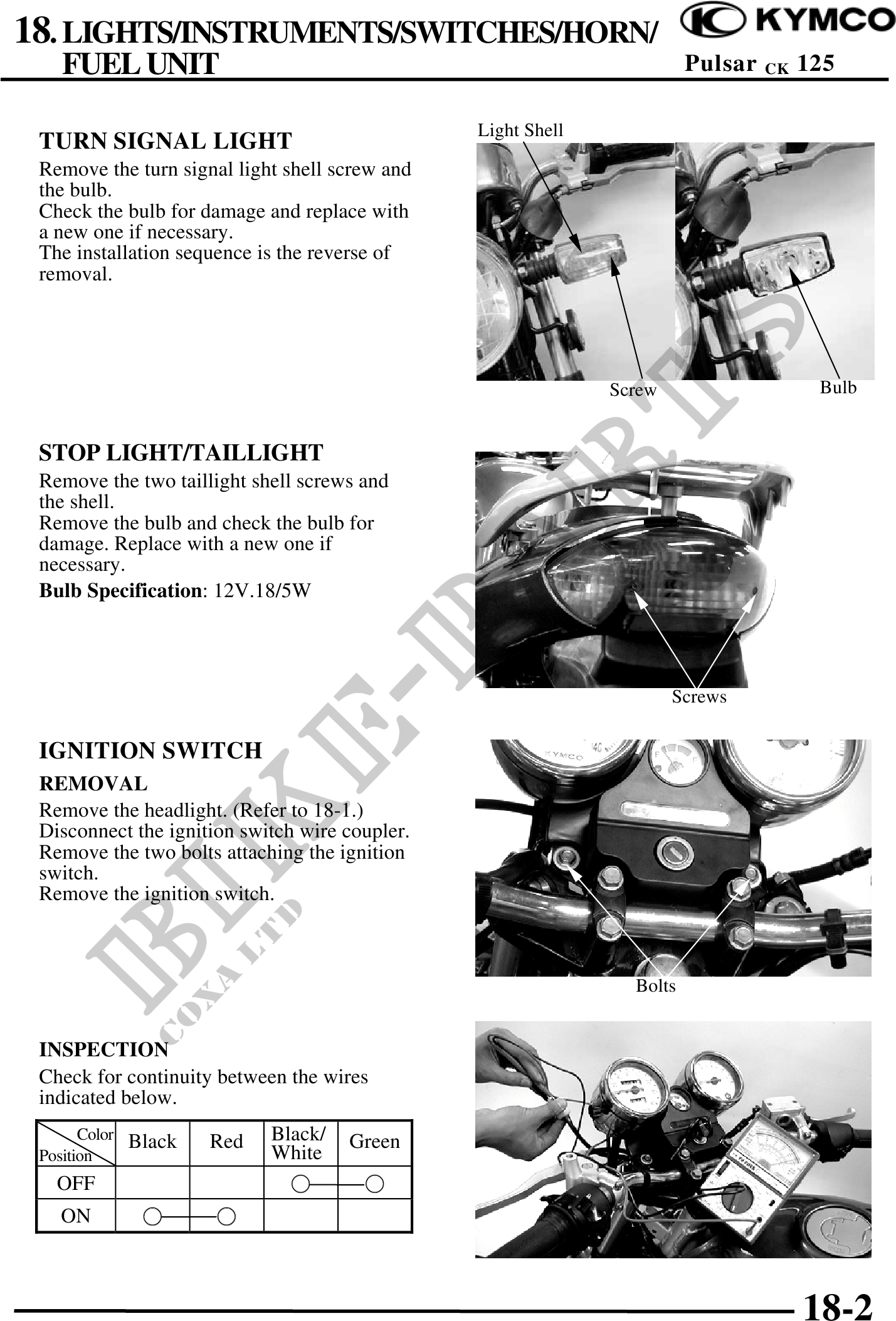

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
FUEL UNIT Pulsar CK 125
Light Shell
TURN SIGNAL LIGHT
Remove the turn signal light shell screw and
the bulb.
Check the bulb for damage and replace with
a new one if necessary.
The installation sequence is the reverse of
removal.
Screw Bulb
STOP LIGHT/TAILLIGHT
Remove the two taillight shell screws and
the shell.
Remove the bulb and check the bulb for
damage. Replace with a new one if
necessary.
Bulb Specification: 12V.18/5W
Screws
IGNITION SWITCH
REMOVAL
Remove the headlight. (Refer to 18-1.)
Disconnect the ignition switch wire coupler.
Remove the two bolts attaching the ignition
switch.
Remove the ignition switch.
Bolts
INSPECTION
Check for continuity between the wires
indicated below.
Color Black Red Black/ Green
Position White
OFF
ON
18-2
