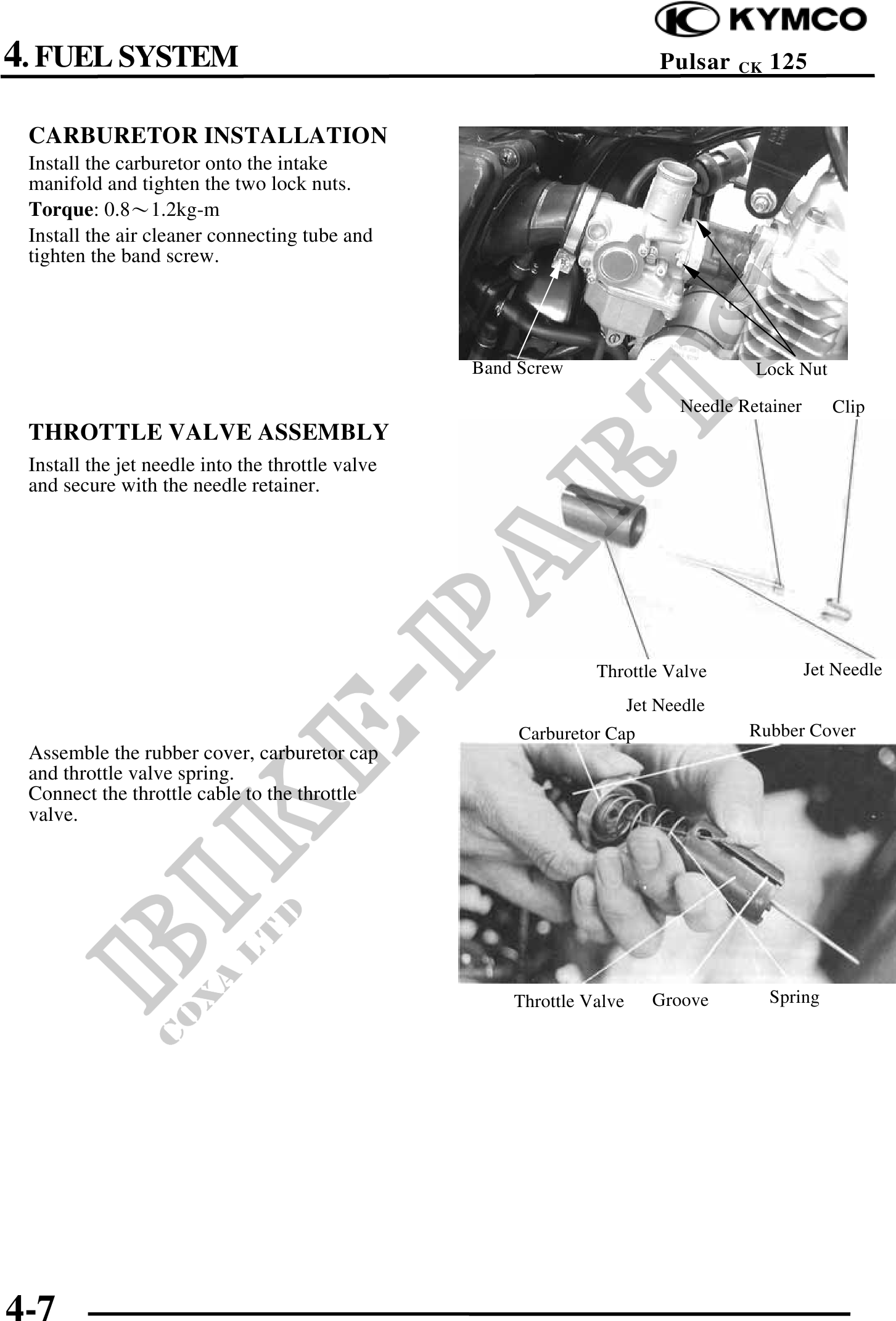

4. FUEL SYSTEM Pulsar CK 125
CARBURETOR INSTALLATION
Install the carburetor onto the intake
manifold and tighten the two lock nuts.
Torque: 0.81.2kg-m
Install the air cleaner connecting tube and
tighten the band screw.
Band Screw Lock Nut
Needle Retainer Clip
THROTTLE VALVE ASSEMBLY Clip Needle Retainer
Install the jet needle into the throttle valve
and secure with the needle retainer.
Throttle Valve Jet Needle
Jet Needle
Carburetor Cap Rubber Cover
Assemble the rubber cover, carburetor cap
and throttle valve spring.
Connect the throttle cable to the throttle
valve.
Throttle Valve Groove Spring
4-7
