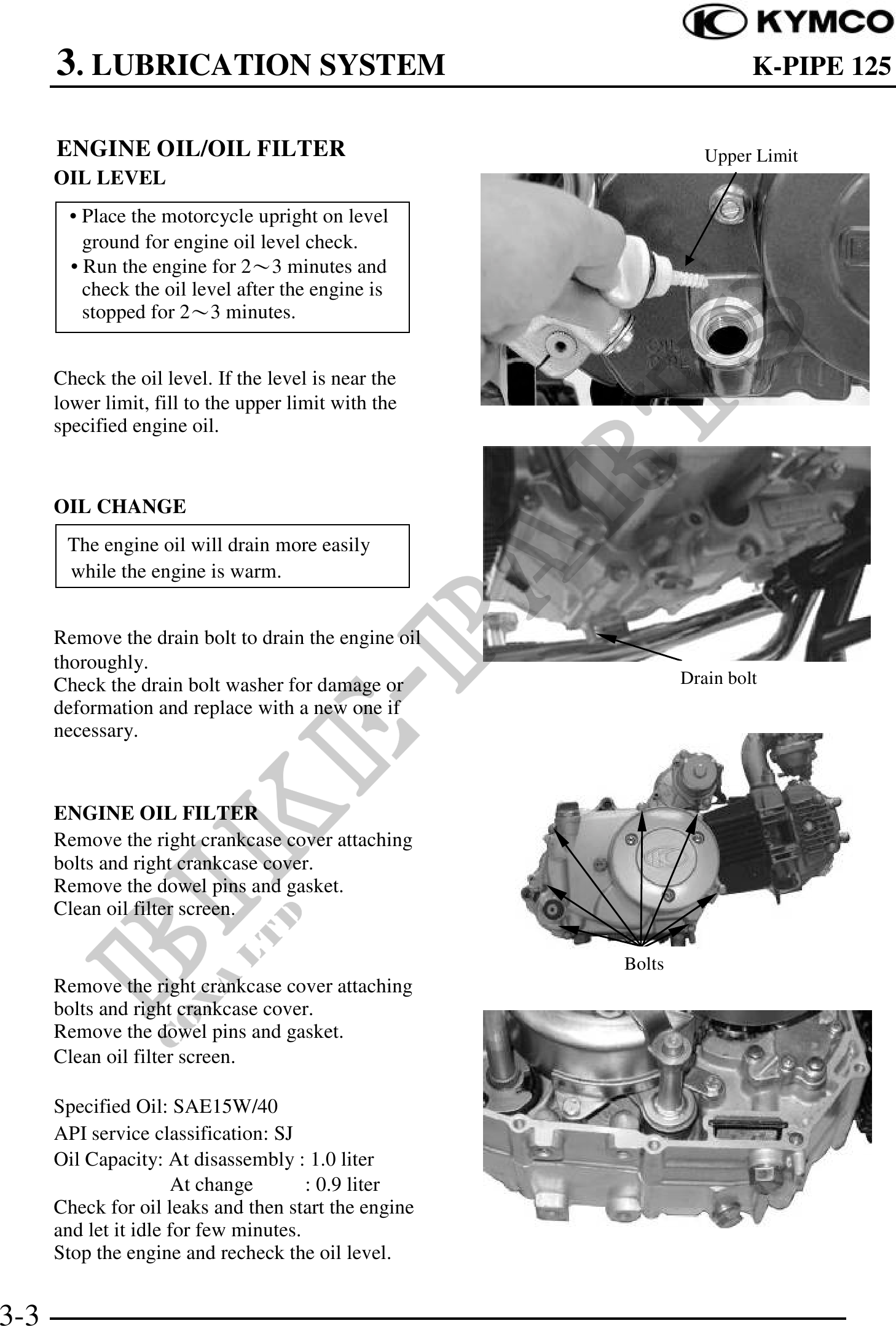

3. LUBRICATION SYSTEM K-PIPE 125
ENGINE OIL/OIL FILTER Upper Limit
OIL LEVEL
· Place the motorcycle upright on level
ground for engine oil level check.
· Run the engine for 23 minutes and
check the oil level after the engine is
stopped for 23 minutes.
Check the oil level. If the level is near the
lower limit, fill to the upper limit with the
specified engine oil.
OIL CHANGE
The engine oil will drain more easily
while the engine is warm.
Remove the drain bolt to drain the engine oil
thoroughly.
Check the drain bolt washer for damage or Drain bolt
deformation and replace with a new one if
necessary.
ENGINE OIL FILTER
Remove the right crankcase cover attaching
bolts and right crankcase cover.
Remove the dowel pins and gasket.
Clean oil filter screen.
Bolts
Remove the right crankcase cover attaching
bolts and right crankcase cover.
Remove the dowel pins and gasket.
Clean oil filter screen.
Specified Oil: SAE15W/40
API service classification: SJ
Oil Capacity: At disassembly : 1.0 liter
At change : 0.9 liter
Check for oil leaks and then start the engine
and let it idle for few minutes.
Stop the engine and recheck the oil level.
3-3
