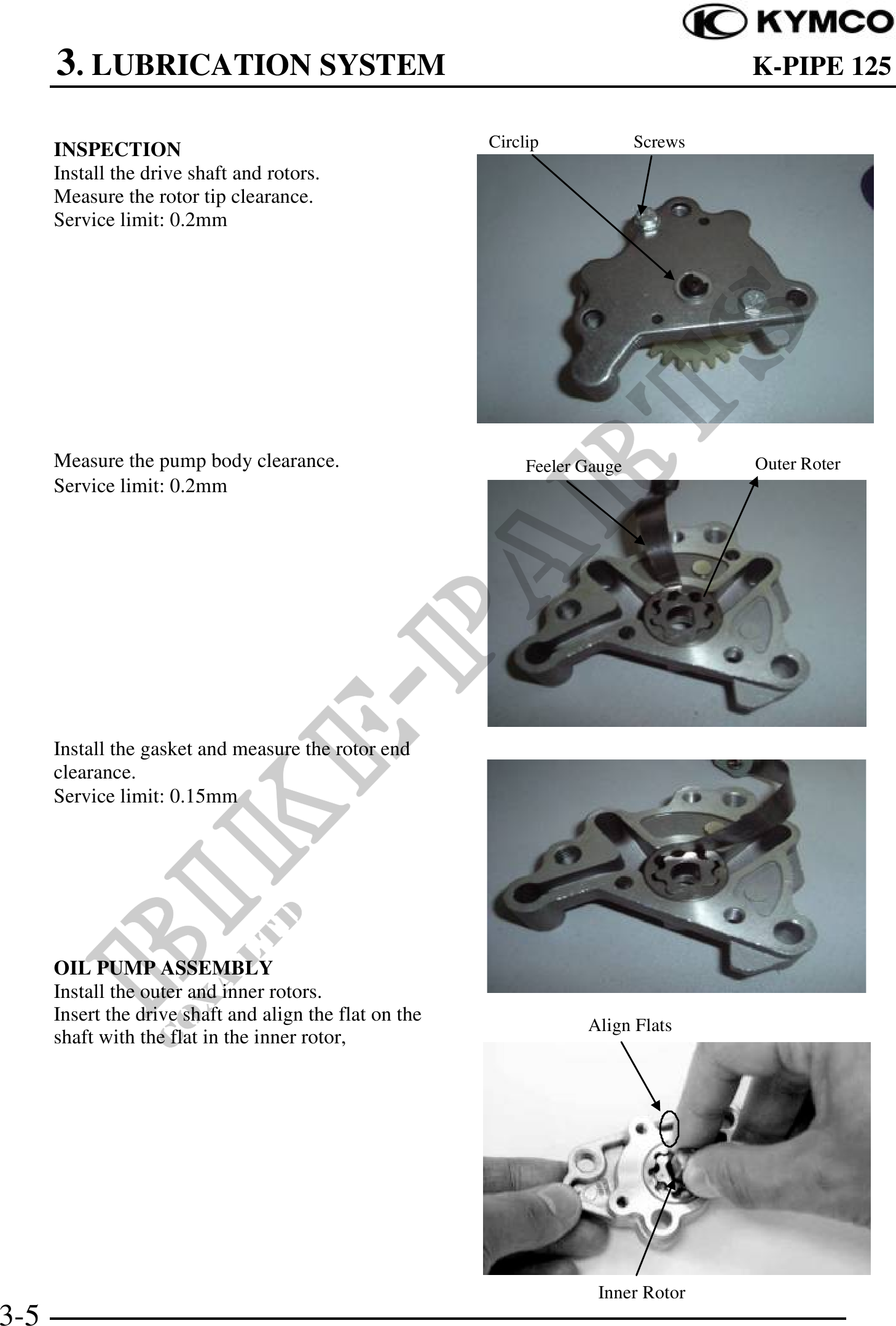

3. LUBRICATION SYSTEM K-PIPE 125
INSPECTION Circlip Screws
Install the drive shaft and rotors.
Measure the rotor tip clearance.
Service limit: 0.2mm
Measure the pump body clearance. Feeler Gauge Outer Roter
Service limit: 0.2mm
Install the gasket and measure the rotor end
clearance.
Service limit: 0.15mm
OIL PUMP ASSEMBLY
Install the outer and inner rotors.
Insert the drive shaft and align the flat on the Align Flats
shaft with the flat in the inner rotor,
Inner Rotor
3-5
