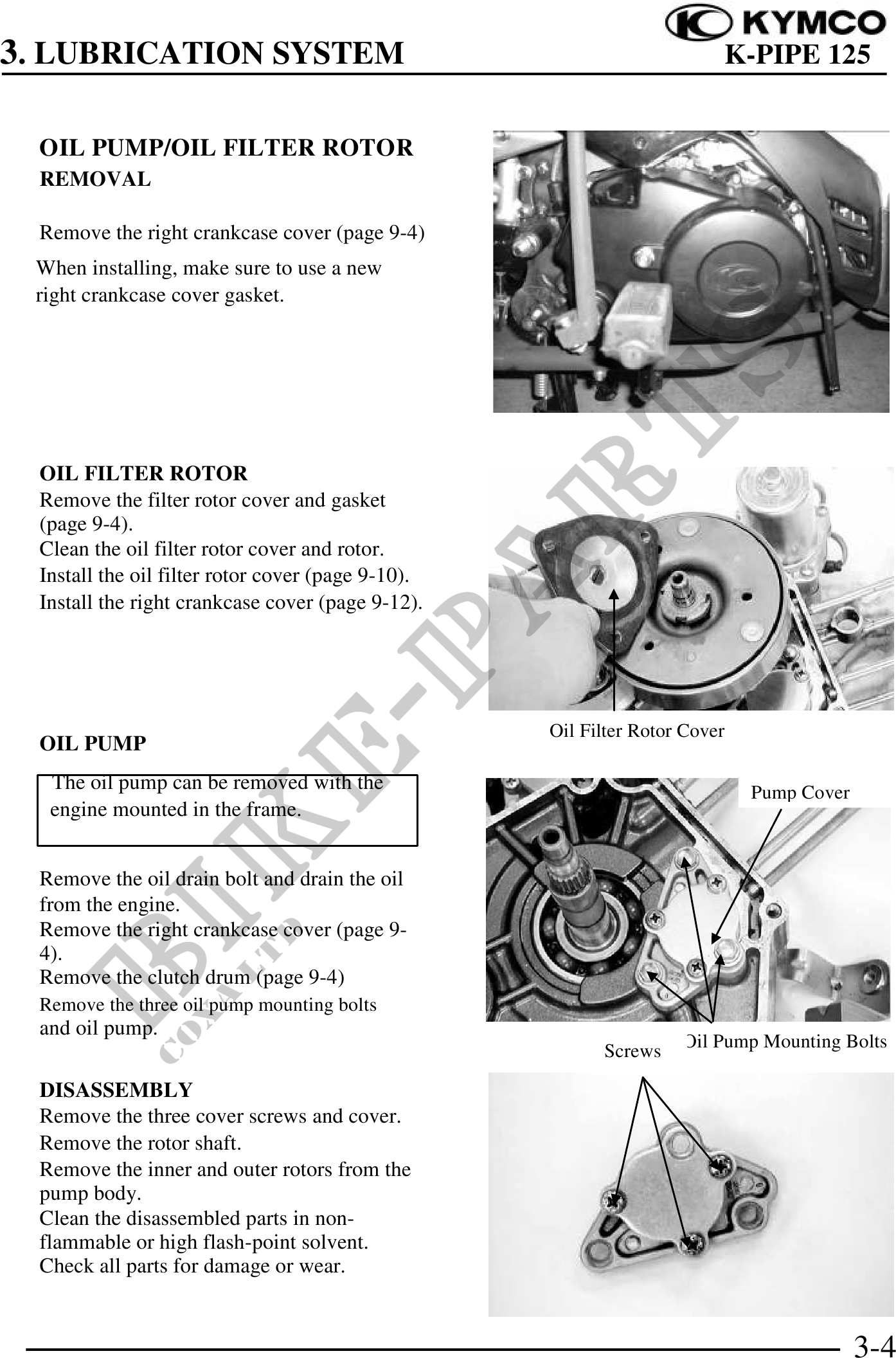

3. LUBRICATION SYSTEM K-PIPE 125
OIL PUMP/OIL FILTER ROTOR
REMOVAL
Remove the right crankcase cover (page 9-4)
When installing, make sure to use a new
right crankcase cover gasket.
OIL FILTER ROTOR
Remove the filter rotor cover and gasket
(page 9-4).
Clean the oil filter rotor cover and rotor.
Install the oil filter rotor cover (page 9-10).
Install the right crankcase cover (page 9-12).
Oil Filter Rotor Cover
OIL PUMP
The oil pump can be removed with the Pump Cover
engine mounted in the frame.
Remove the oil drain bolt and drain the oil
from the engine.
Remove the right crankcase cover (page 9-
4).
Remove the clutch drum (page 9-4)
Remove the three oil pump mounting bolts
and oil pump.
Screws Oil Pump Mounting Bolts
DISASSEMBLY
Remove the three cover screws and cover.
Remove the rotor shaft.
Remove the inner and outer rotors from the
pump body.
Clean the disassembled parts in non-
flammable or high flash-point solvent.
Check all parts for damage or wear.
3-4
