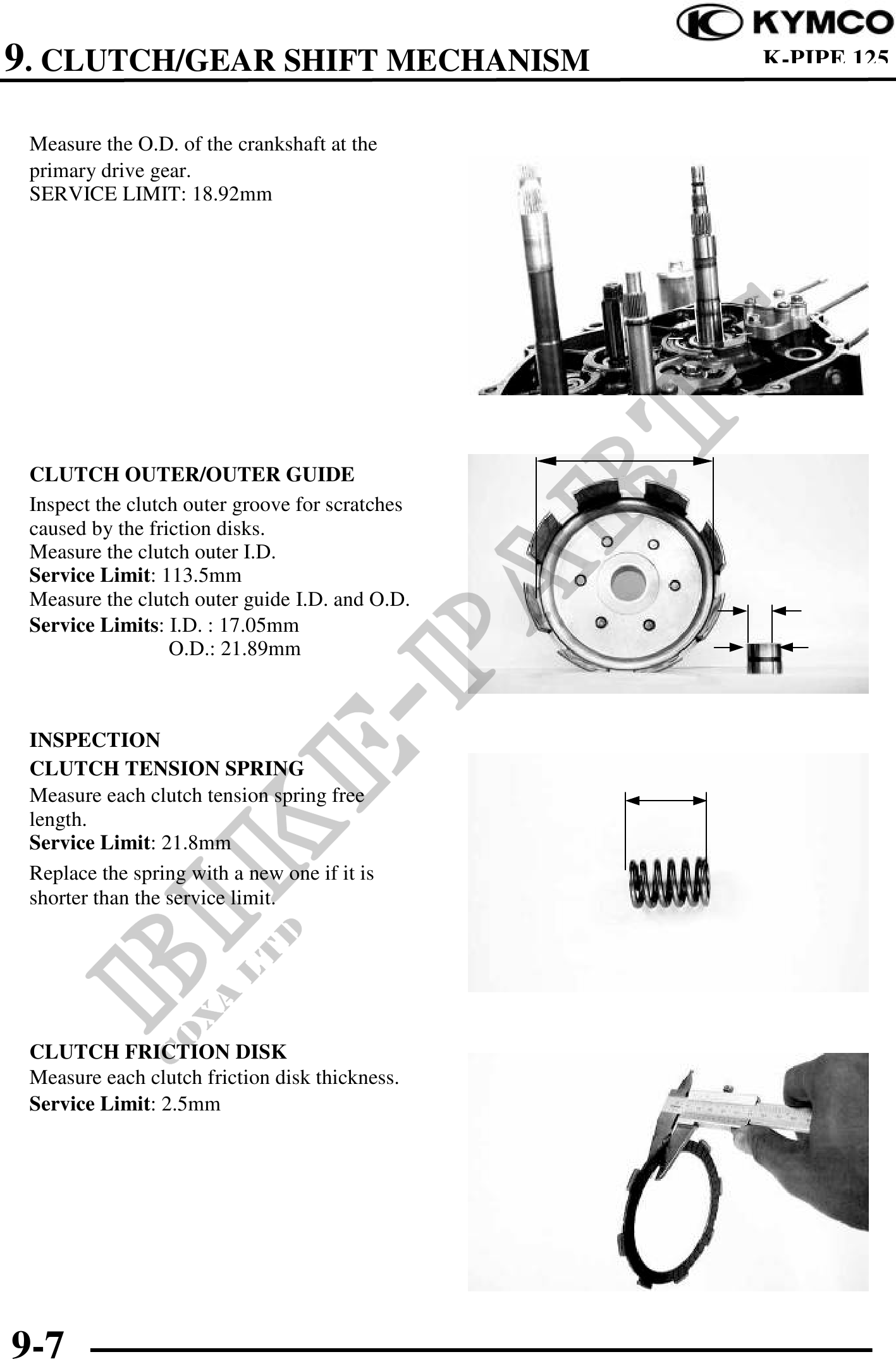

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125
Measure the O.D. of the crankshaft at the
primary drive gear.
SERVICE LIMIT: 18.92mm
CLUTCH OUTER/OUTER GUIDE
Inspect the clutch outer groove for scratches
caused by the friction disks.
Measure the clutch outer I.D.
Service Limit: 113.5mm
Measure the clutch outer guide I.D. and O.D.
Service Limits: I.D. : 17.05mm
O.D.: 21.89mm
INSPECTION
CLUTCH TENSION SPRING
Measure each clutch tension spring free
length.
Service Limit: 21.8mm
Replace the spring with a new one if it is
shorter than the service limit.
CLUTCH FRICTION DISK
Measure each clutch friction disk thickness.
Service Limit: 2.5mm
9-7
