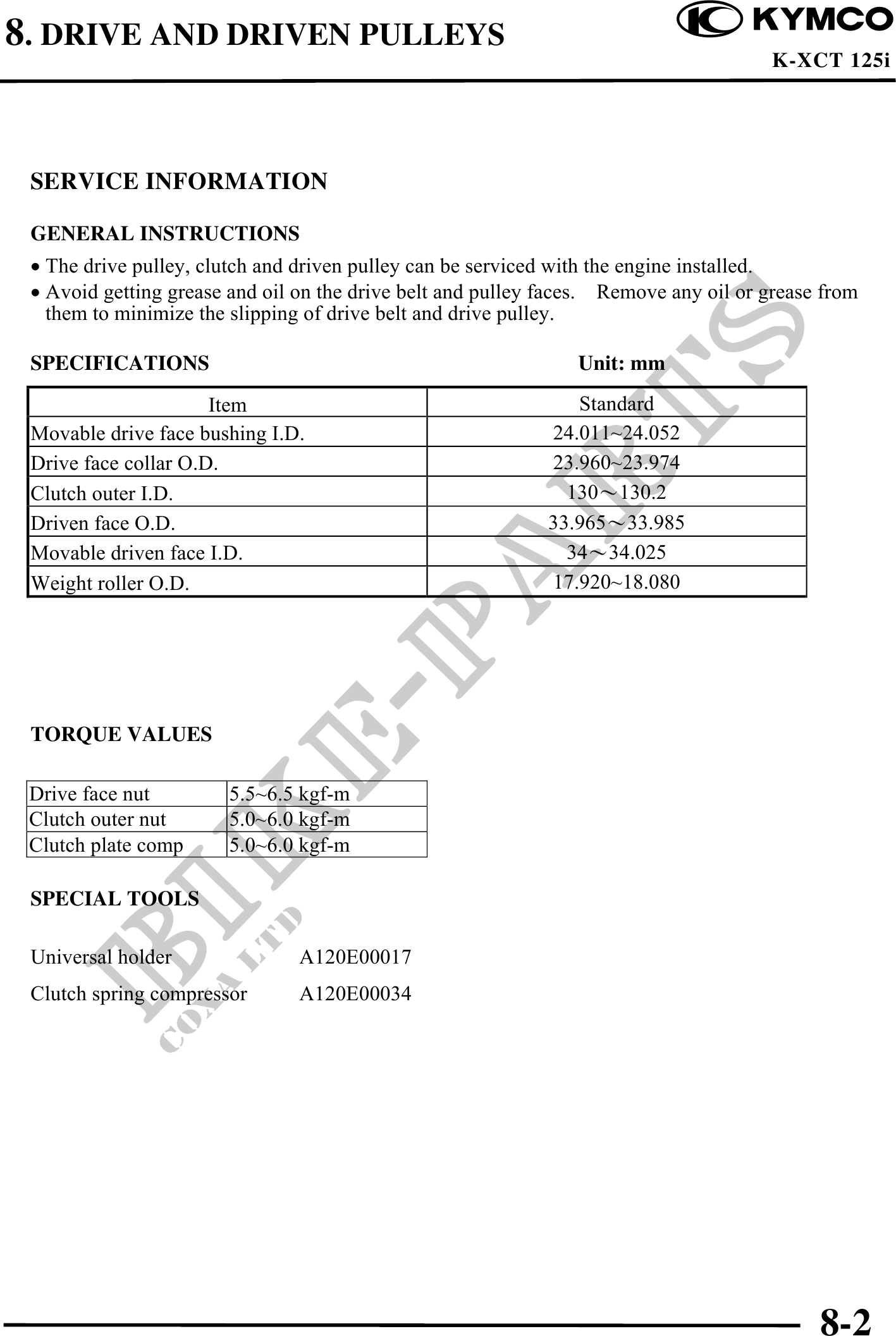

8. DRIVE AND DRIVEN PULLEYS
K-XCT 125i
SERVICE INFORMATION
GENERAL INSTRUCTIONS
The drive pulley, clutch and driven pulley can be serviced with the engine installed.
Avoid getting grease and oil on the drive belt and pulley faces. Remove any oil or grease from
them to minimize the slipping of drive belt and drive pulley.
SPECIFICATIONS Unit: mm
Item Standard
Movable drive face bushing I.D. 24.011~24.052
Drive face collar O.D. 23.960~23.974
Clutch outer I.D. 130130.2
Driven face O.D. 33.96533.985
Movable driven face I.D. 3434.025
Weight roller O.D. 17.920~18.080
TORQUE VALUES
Drive face nut ( 5.5~6.5 kgf-m
Clutch outer nut 5.0~6.0 kgf-m
Clutch plate comp 5.0~6.0 kgf-m
SPECIAL TOOLS
Bearing installer A120E00014
Universal holder A120E00017
Clutch spring compressor A120E00034
8-2
