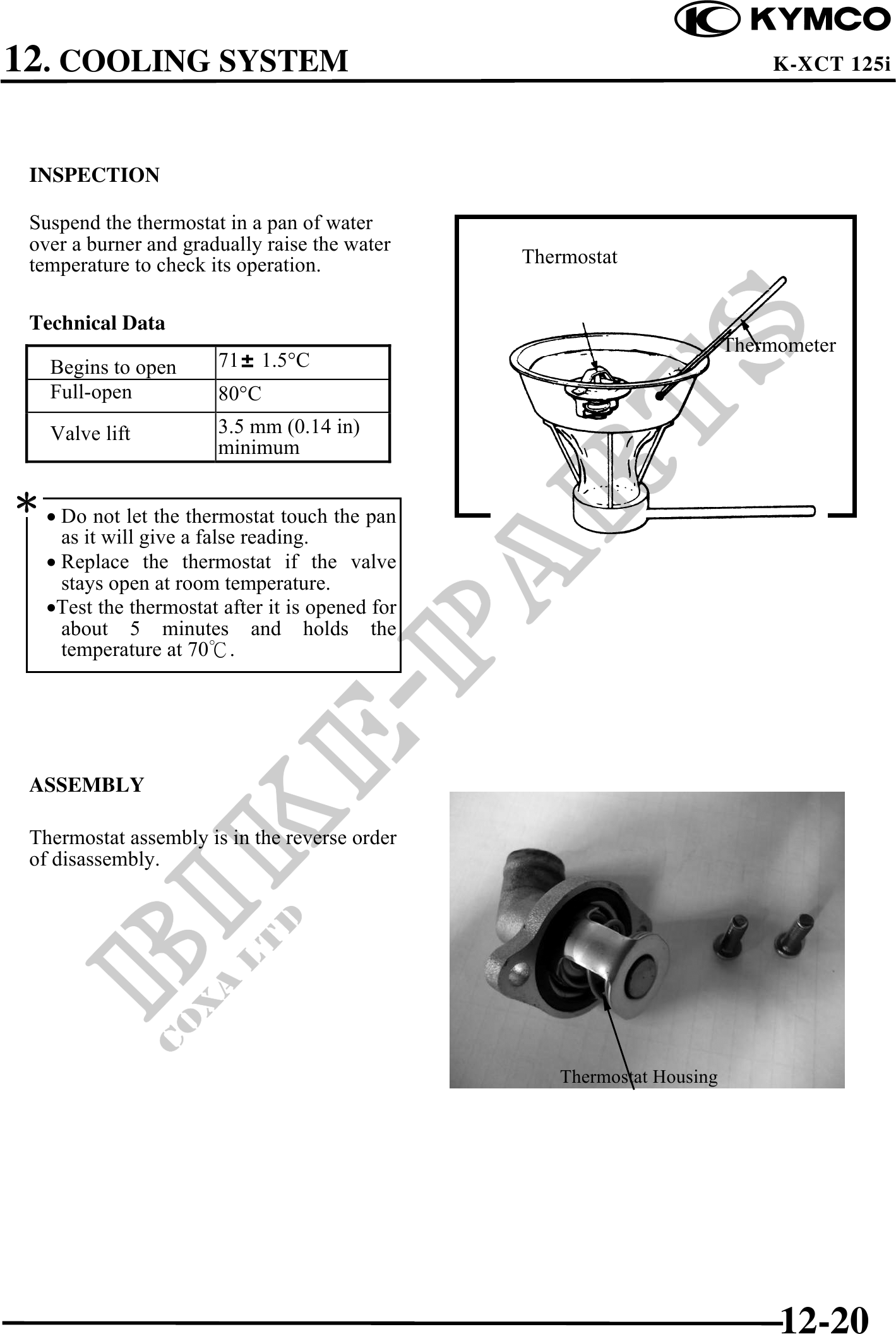

12. COOLING SYSTEM K-XCT 125i
INSPECTION
Suspend the thermostat in a pan of water
over a burner and gradually raise the water
temperature to check its operation. Thermostat
Technical Data
Thermometer
Begins to open 71 1.5°C
Full-open 80°C
Valve lift 3.5 mm (0.14 in)
minimum
Do not let the thermostat touch the pan
as it will give a false reading.
Replace the thermostat if the valve
stays open at room temperature.
Test the thermostat after it is opened for
about 5 minutes and holds the
temperature at 70.
ASSEMBLY
Thermostat assembly is in the reverse order
of disassembly.
Thermostat Housing
12-20
