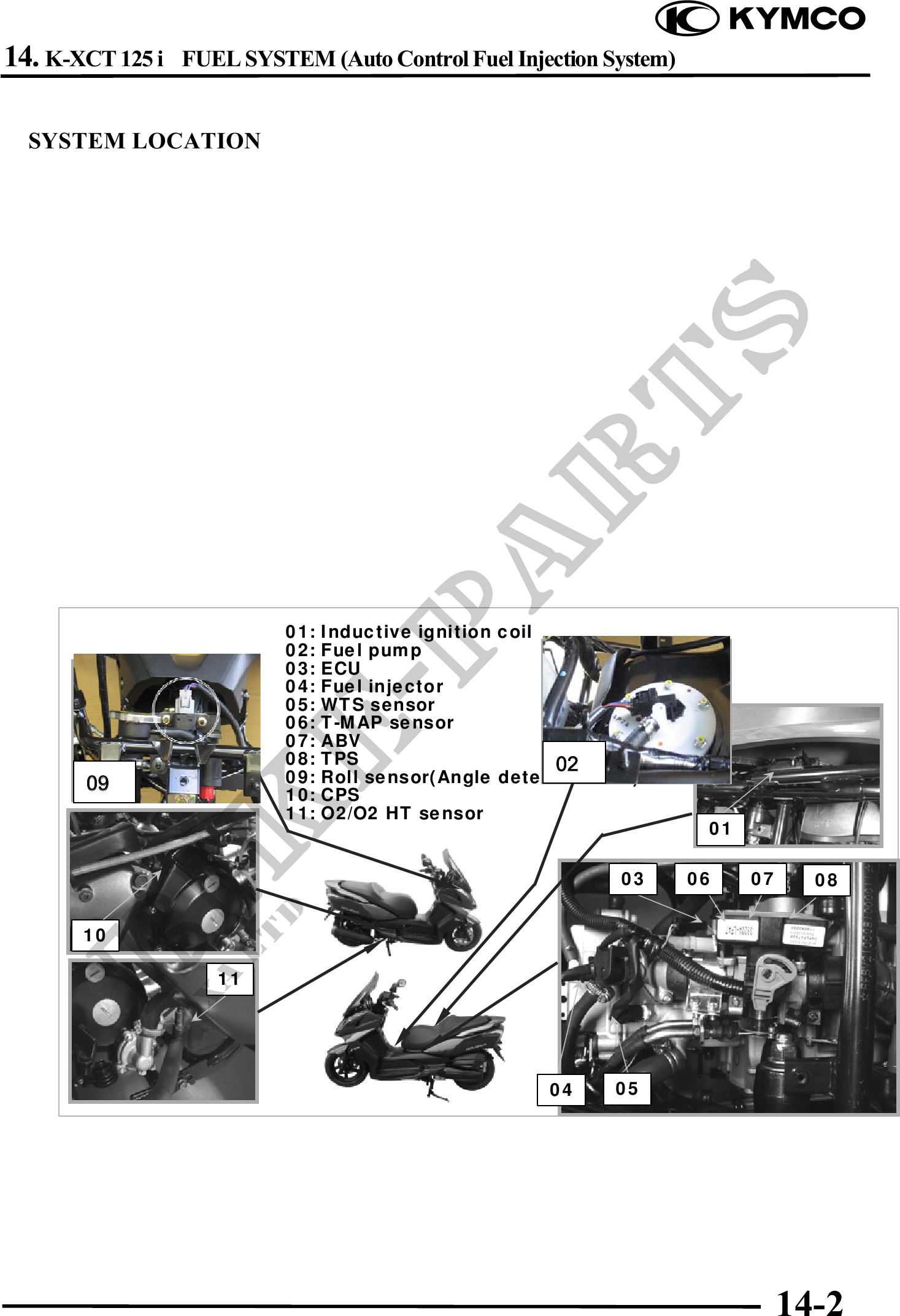

          14. K-XCT 125 i   FUEL SYSTEM (Auto Control Fuel Injection System)


  SYSTEM LOCATION




                            01: Inductive ignition coil
                            02: Fuel pump
                            03: ECU
                            04: Fuel injector
                            05: WTS sensor
                            06: T-MAP sensor
                            07: ABV
                            08: TPS                     02
                                                        02
       09                   09: Roll sensor(Angle detect sensor)
                            10: CPS
                            11: O2/O2 HT sensor
                                                                      01

                                                              03     06    07     08


       10

                     11




                                                      04     05
