          1. GENERAL INFORMATION                                                  Mongoose/KXR 90/50


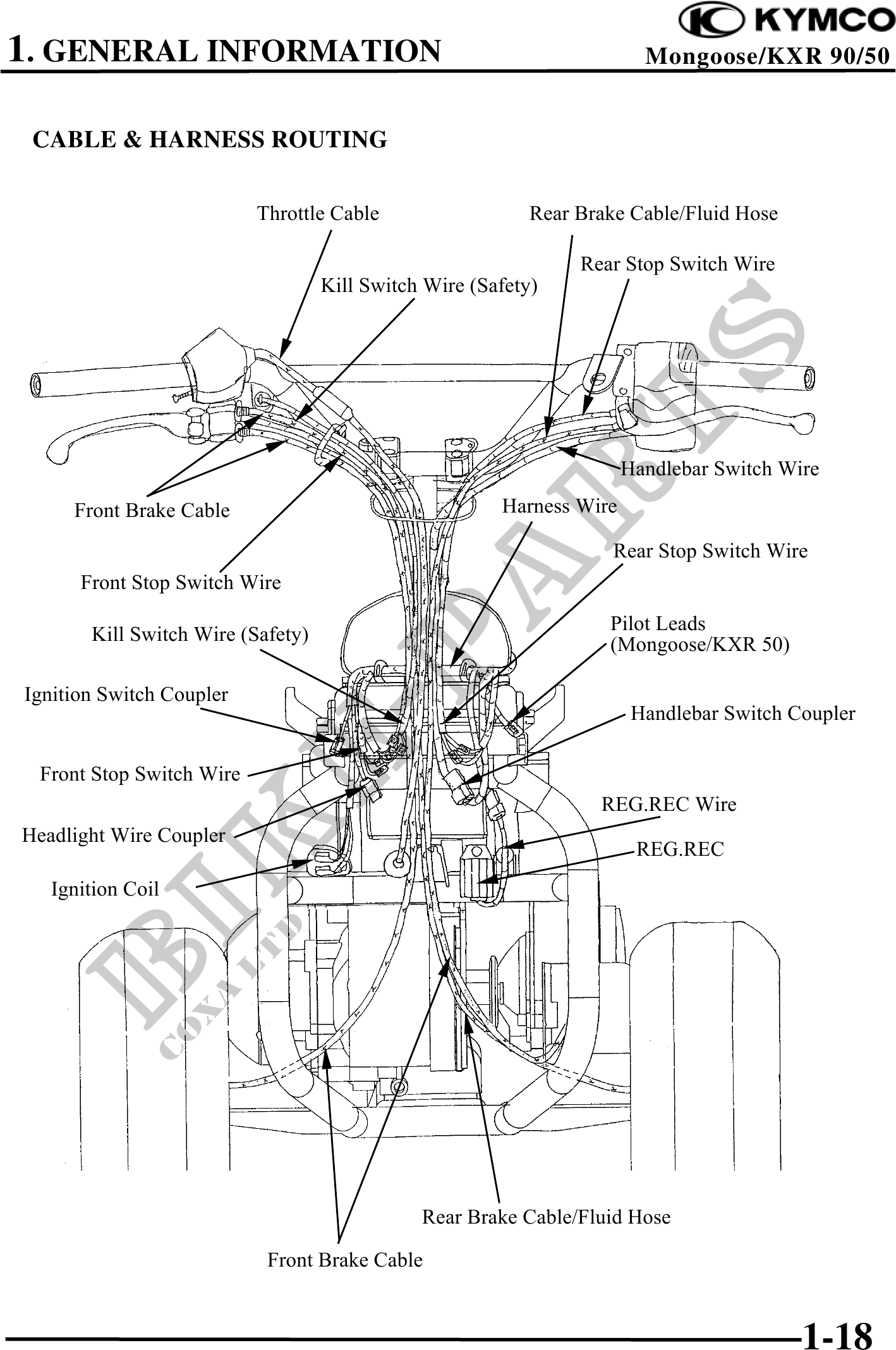

 CABLE & HARNESS ROUTING

                          Throttle Cable                   Rear Brake Cable/Fluid Hose

                                                                Rear Stop Switch Wire
                                   Kill Switch Wire (Safety)




                                                                      Handlebar Switch Wire
     Front Brake Cable                                 Harness Wire

                                                                    Rear Stop Switch Wire
      Front Stop Switch Wire
                                                                   Pilot Leads
       Kill Switch Wire (Safety)                                   (Mongoose/KXR 50)

Ignition Switch Coupler
                                                                       Handlebar Switch Coupler

 Front Stop Switch Wire
                                                                  REG.REC Wire
Headlight Wire Coupler
                                                                       REG.REC
   Ignition Coil




                                              Rear Brake Cable/Fluid Hose

                           Front Brake Cable
