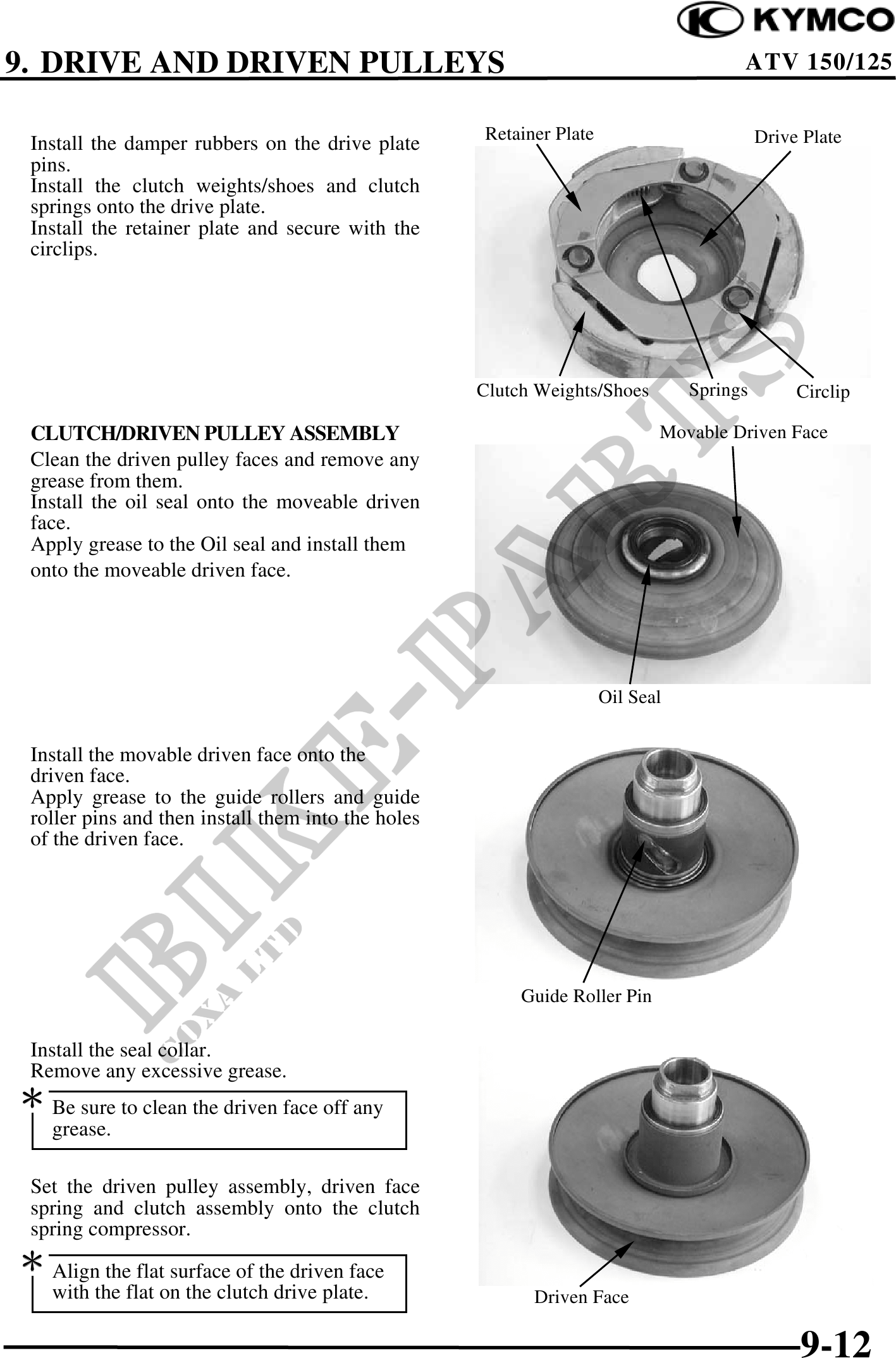

          9. DRIVE AND DRIVEN PULLEYS                                                           ATV 150/125

                                                    Retainer Plate                        Drive Plate
 Install the damper rubbers on the drive plate
 pins.
 Install the clutch weights/shoes and clutch
 springs onto the drive plate.
 Install the retainer plate and secure with the
 circlips.




                                                    Clutch Weights/Shoes        Springs        Circlip

 CLUTCH/DRIVEN PULLEY ASSEMBLY                                              Movable Driven Face
 Clean the driven pulley faces and remove any
 grease from them.
 Install the oil seal onto the moveable driven
 face.
 Apply grease to the Oil seal and install them
 onto the moveable driven face.




                                                                     Oil Seal


 Install the movable driven face onto the
 driven face.
 Apply grease to the guide rollers and guide
 roller pins and then install them into the holes
 of the driven face.




                                                         Guide Roller Pin

 Install the seal collar.
 Remove any excessive grease.
 Be sure to clean the driven face off any
    grease.

 Set the driven pulley assembly, driven face
 spring and clutch assembly onto the clutch
 spring compressor.
 Align the flat surface of the driven face
    with the flat on the clutch drive plate.              Driven Face

                                                                                               9-12
