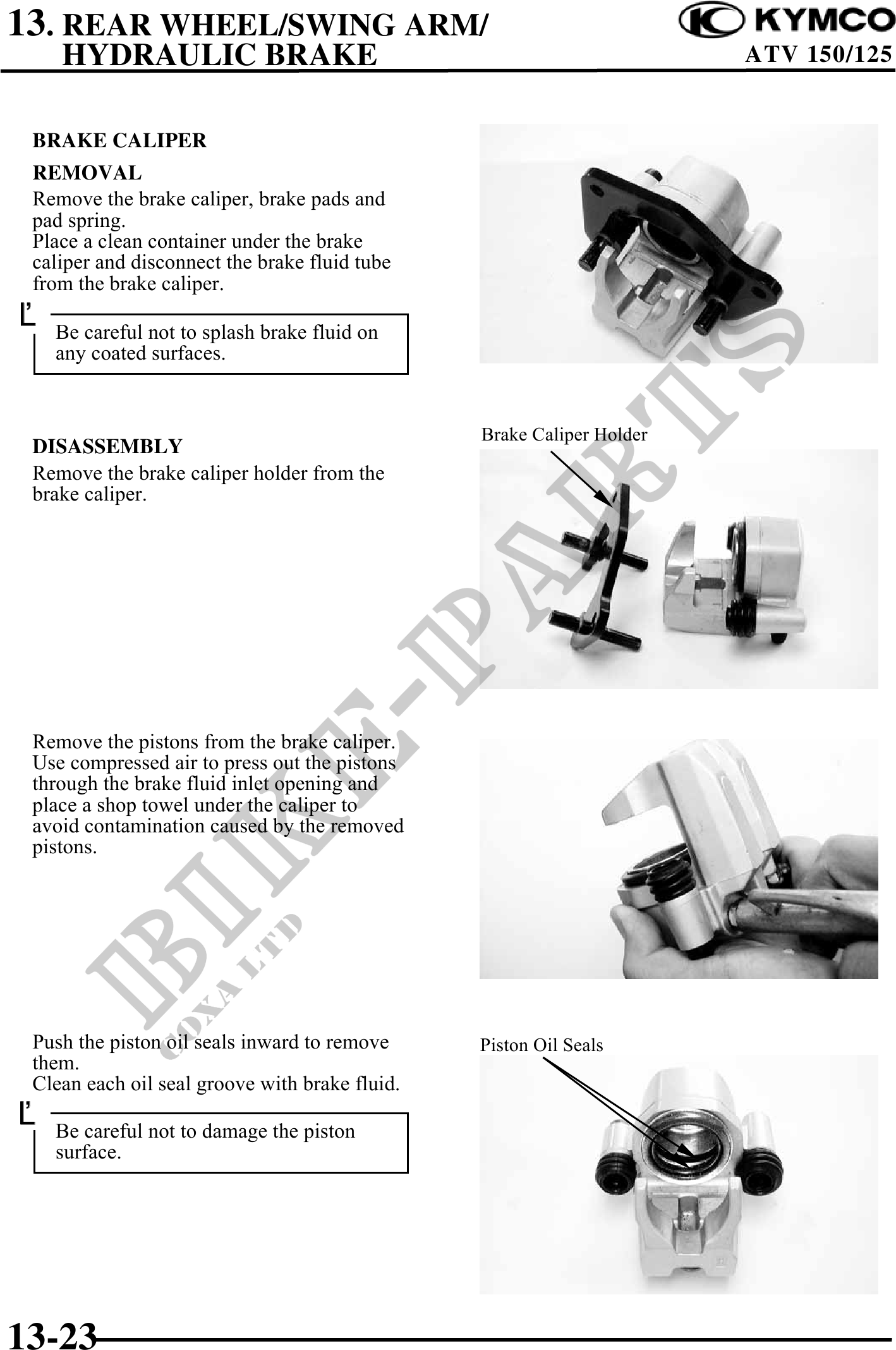

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 150/125
BRAKE CALIPER
REMOVAL
Remove the brake caliper, brake pads and
pad spring.
Place a clean container under the brake
caliper and disconnect the brake fluid tube
from the brake caliper.
Be careful not to splash brake fluid on
any coated surfaces.
Brake Caliper Holder
DISASSEMBLY
Remove the brake caliper holder from the
brake caliper.
Remove the pistons from the brake caliper.
Use compressed air to press out the pistons
through the brake fluid inlet opening and
place a shop towel under the caliper to
avoid contamination caused by the removed
pistons.
Push the piston oil seals inward to remove Piston Oil Seals
them.
Clean each oil seal groove with brake fluid.
Be careful not to damage the piston
surface.
13-23
