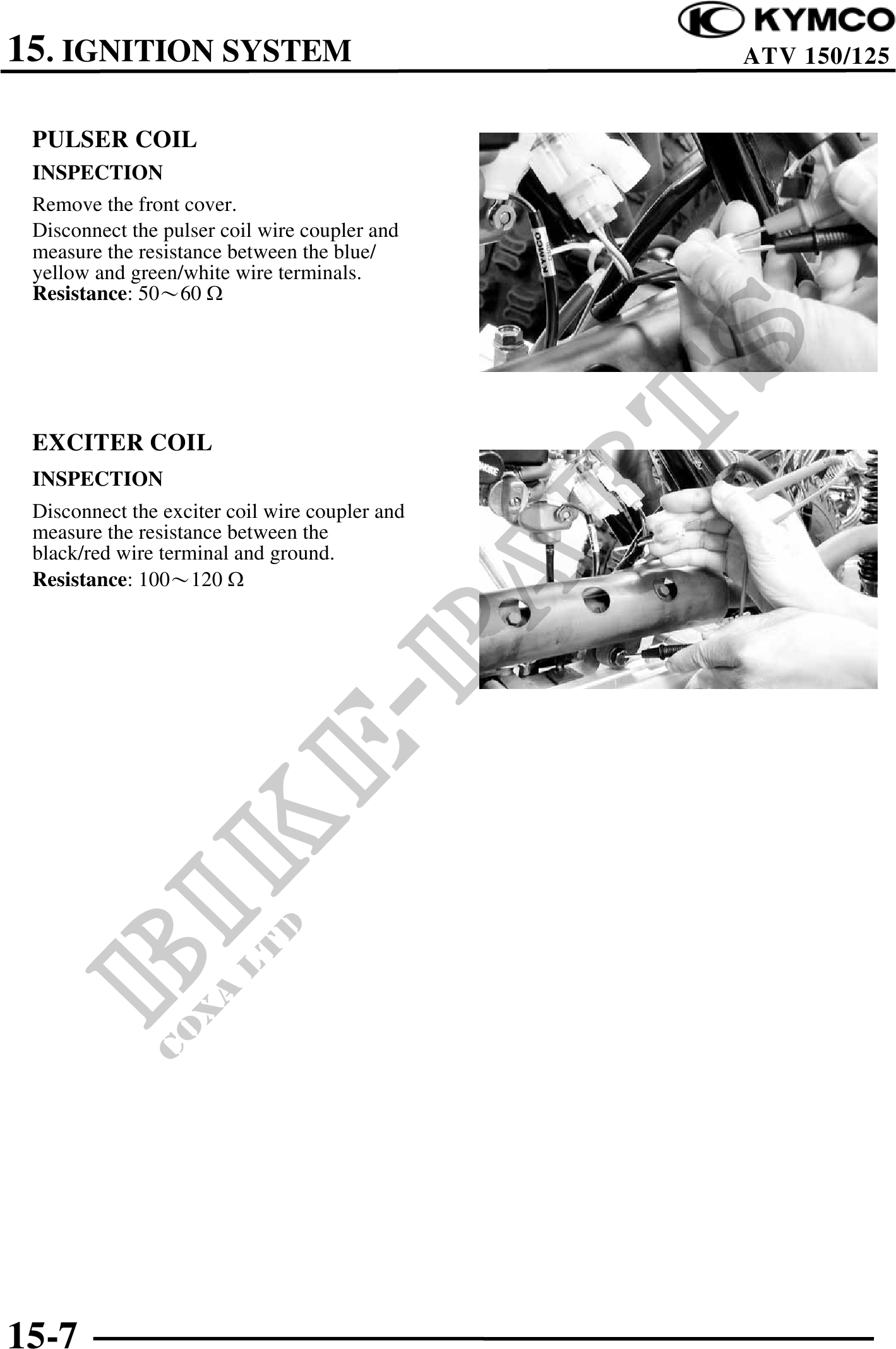

          15. IGNITION SYSTEM                             ATV 150/125


 PULSER COIL
 INSPECTION
 Remove the front cover.
 Disconnect the pulser coil wire coupler and
 measure the resistance between the blue/
 yellow and green/white wire terminals.
 Resistance: 5060




 EXCITER COIL
 INSPECTION
 Disconnect the exciter coil wire coupler and
 measure the resistance between the
 black/red wire terminal and ground.
 Resistance: 100120




15-7
