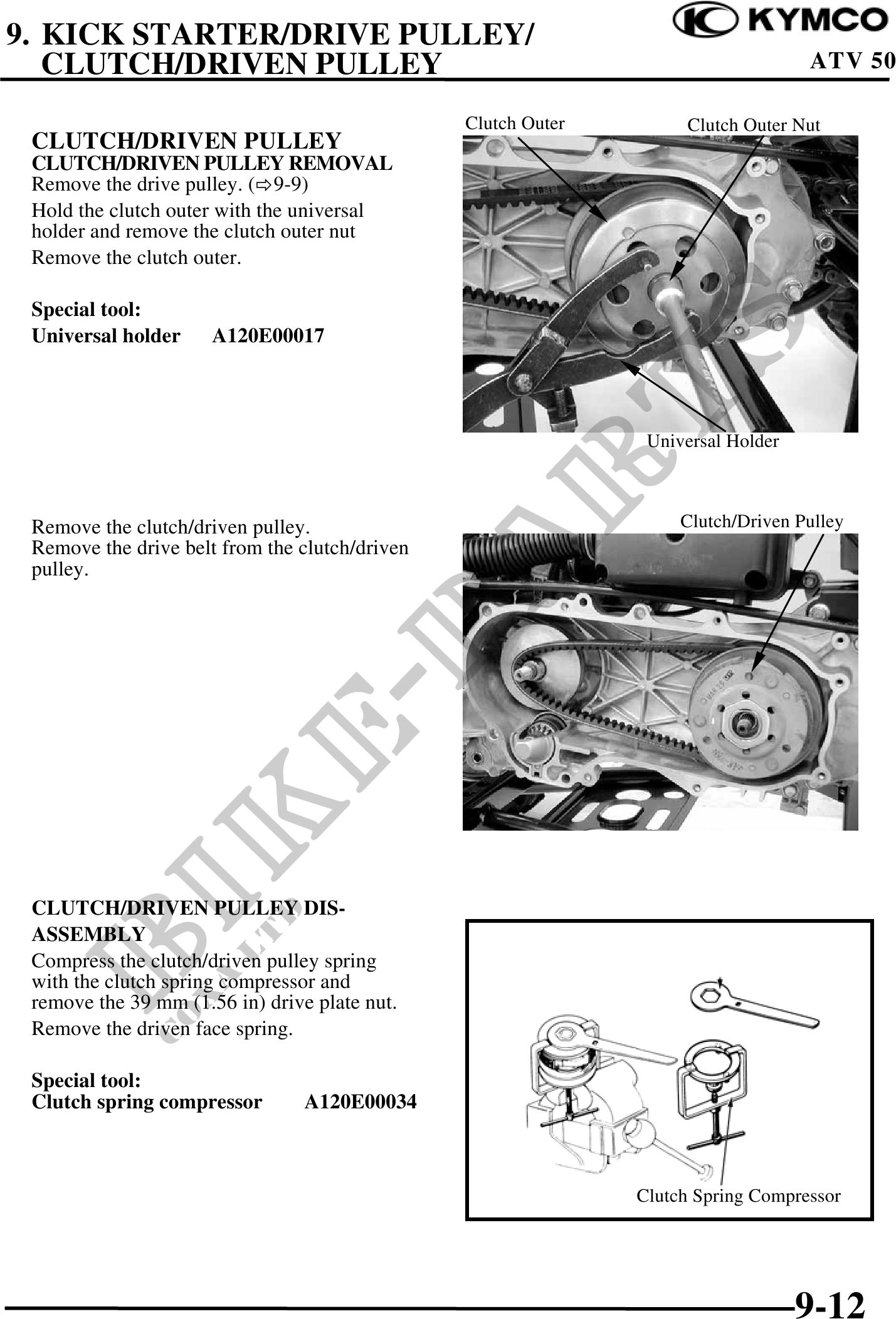

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Clutch Outer Clutch Outer Nut
CLUTCH/DRIVEN PULLEY
CLUTCH/DRIVEN PULLEY REMOVAL
Remove the drive pulley. ( 9-9)
Hold the clutch outer with the universal
holder and remove the clutch outer nut
Remove the clutch outer.
Special tool:
Universal holder A120E00017
Universal Holder
Remove the clutch/driven pulley. Clutch/Driven Pulley
Remove the drive belt from the clutch/driven
pulley.
CLUTCH/DRIVEN PULLEY DIS-
ASSEMBLY
Compress the clutch/driven pulley spring
with the clutch spring compressor and
remove the 39 mm (1.56 in) drive plate nut.
Remove the driven face spring.
Special tool:
Clutch spring compressor A120E00034
Clutch Spring Compressor
9-12
