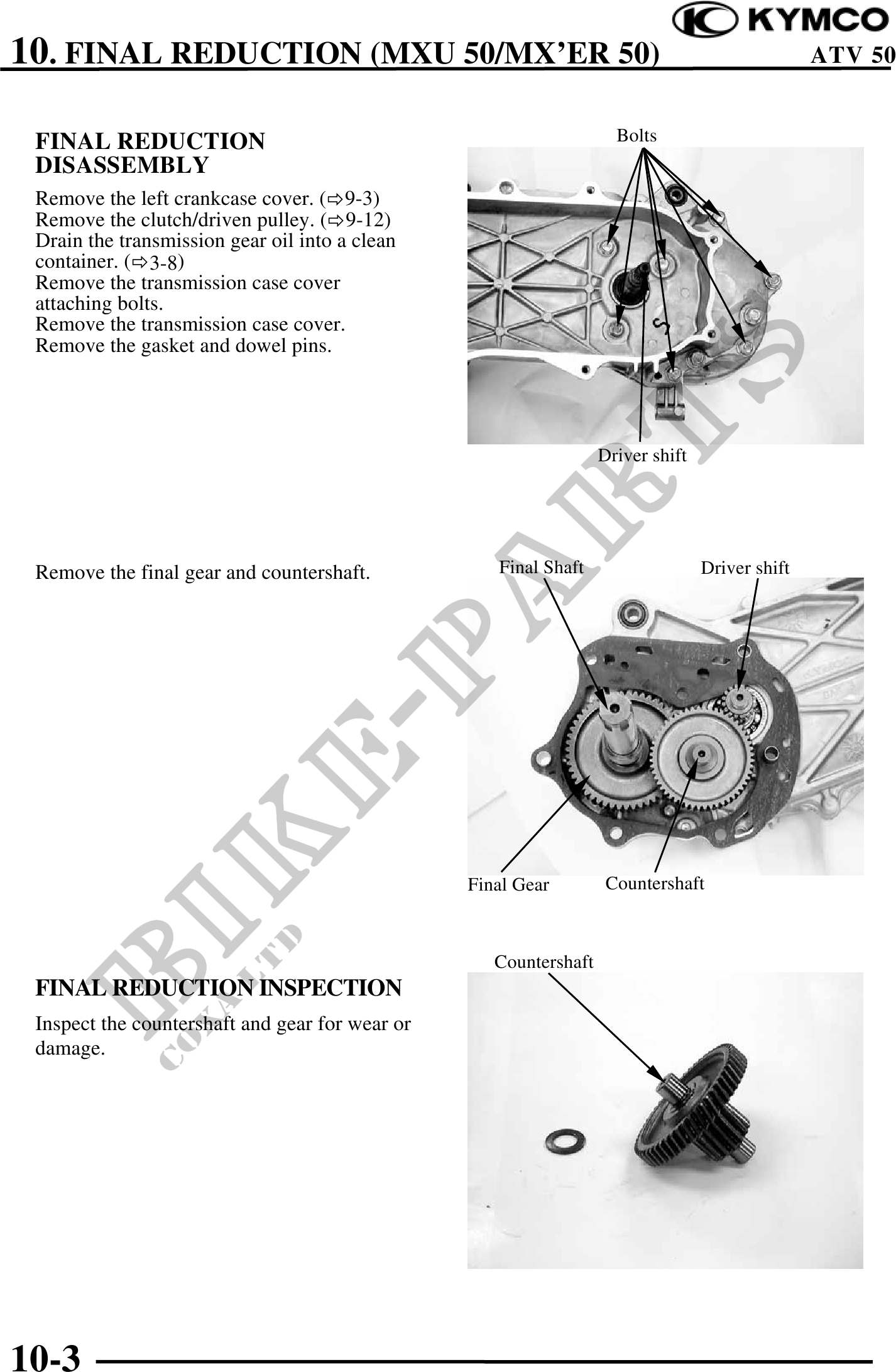

10. FINAL REDUCTION (MXU 50/MX'ER 50) ATV 50
FINAL REDUCTION Bolts
DISASSEMBLY
Remove the left crankcase cover. ( 9-3)
Remove the clutch/driven pulley. ( 9-12)
Drain the transmission gear oil into a clean
container. ( 3-8)
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins.
Driver shift
Remove the final gear and countershaft. Final Shaft Driver shift
Final Gear Countershaft
Countershaft
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear or
damage.
