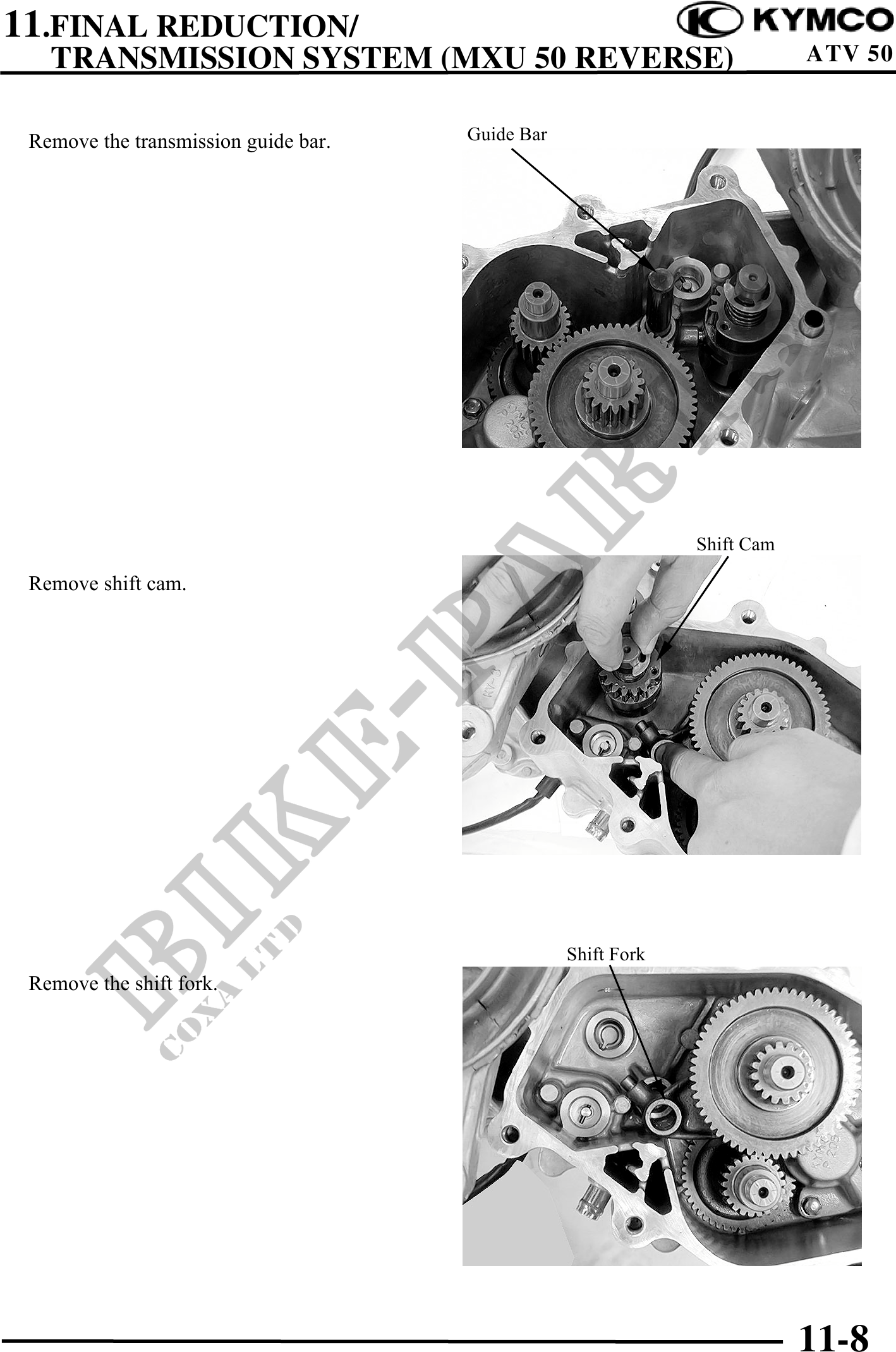

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM (MXU 50 REVERSE)                                    ATV 50


 Remove the transmission guide bar.   Guide Bar




                                                               Shift Cam

 Remove shift cam.




                                                  Shift Fork
 Remove the shift fork.
