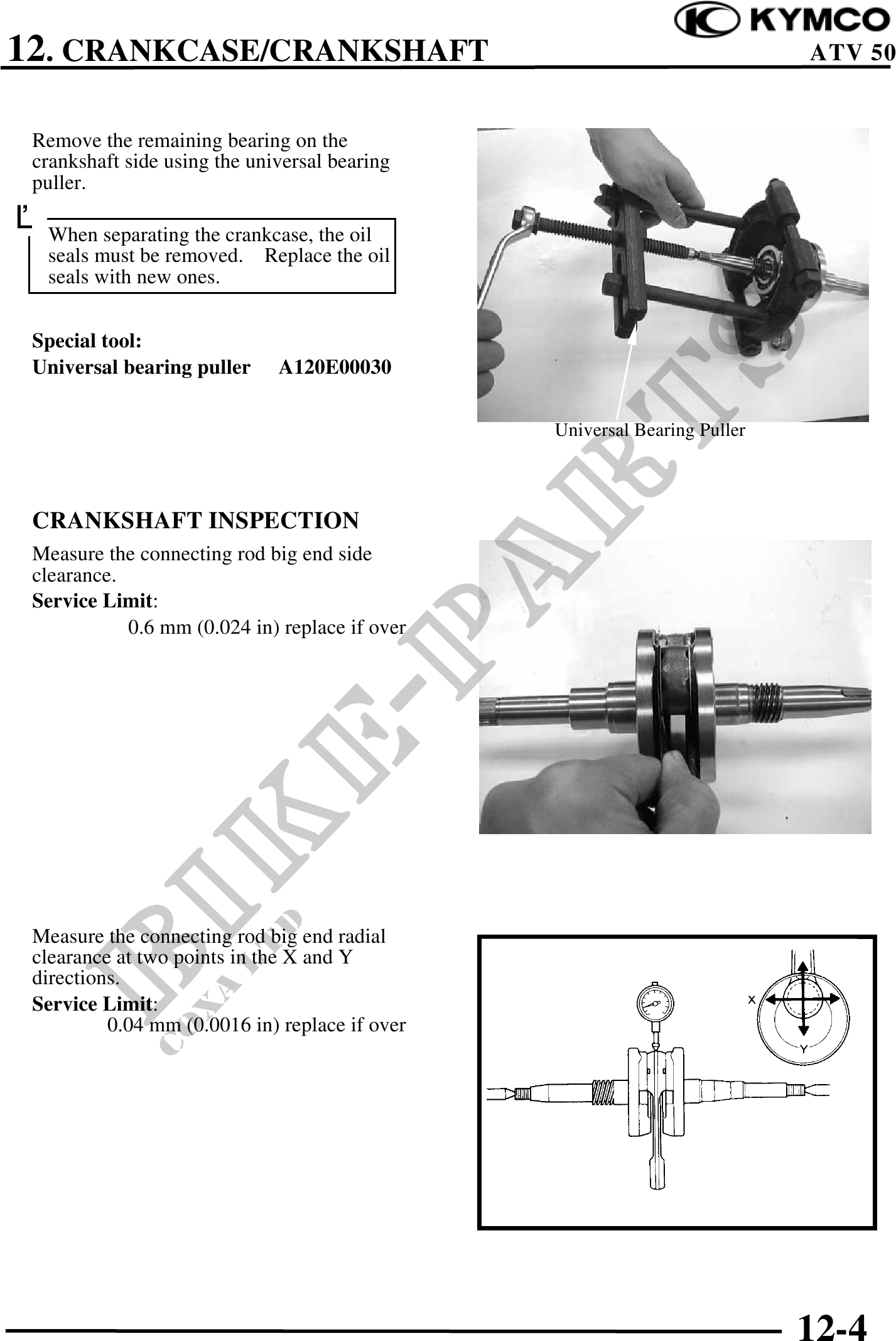

12. CRANKCASE/CRANKSHAFT ATV 50
Remove the remaining bearing on the
crankshaft side using the universal bearing
puller.
When separating the crankcase, the oil
seals must be removed. Replace the oil
seals with new ones.
Special tool:
Universal bearing puller A120E00030
Universal Bearing Puller
CRANKSHAFT INSPECTION
Measure the connecting rod big end side
clearance.
Service Limit:
0.6 mm (0.024 in) replace if over
Measure the connecting rod big end radial
clearance at two points in the X and Y
directions.
Service Limit:
0.04 mm (0.0016 in) replace if over
12-4
