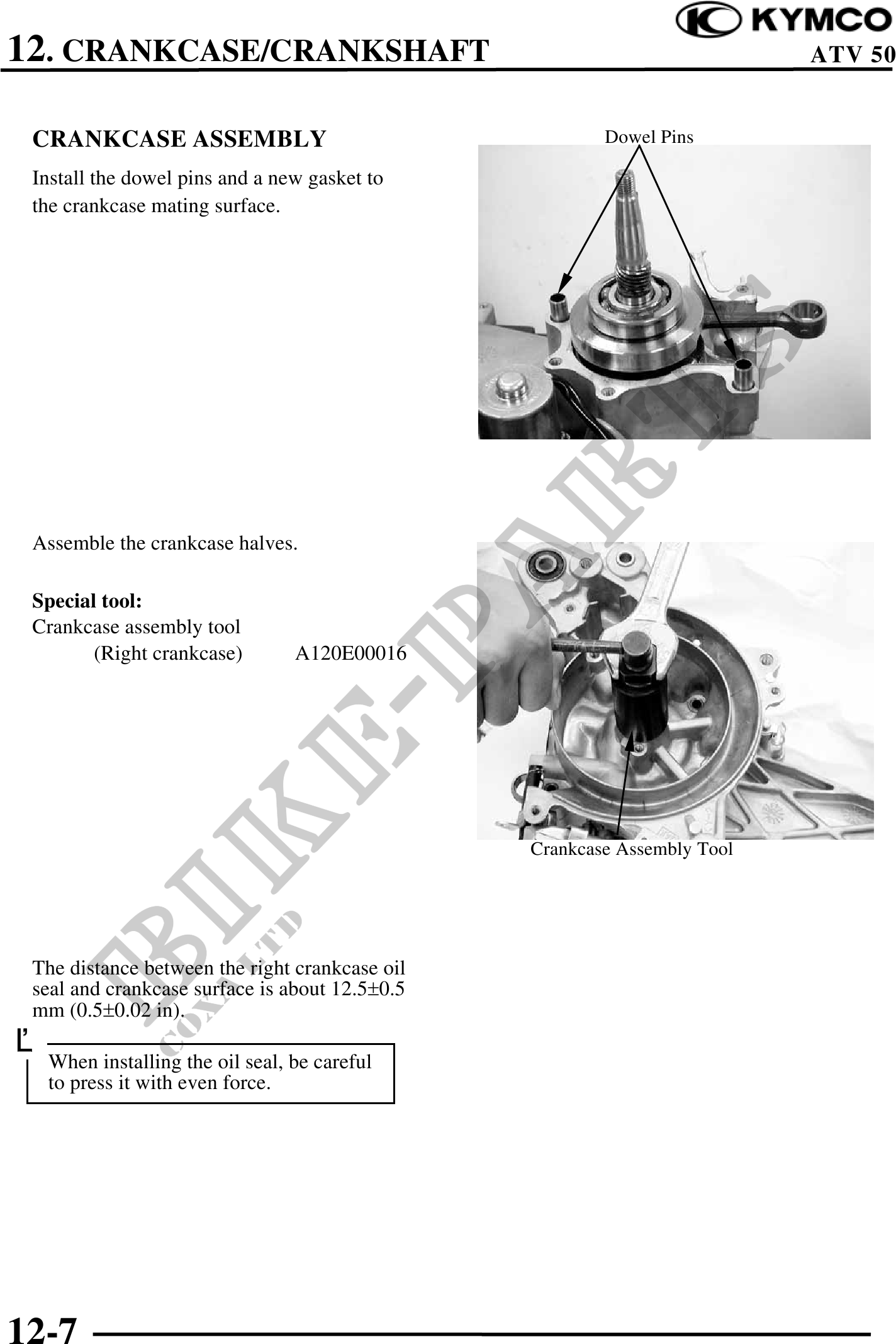

12. CRANKCASE/CRANKSHAFT ATV 50
CRANKCASE ASSEMBLY Dowel Pins
Install the dowel pins and a new gasket to
the crankcase mating surface.
Assemble the crankcase halves.
Special tool:
Crankcase assembly tool
(Right crankcase) A120E00016
Crankcase Assembly Tool
The distance between the right crankcase oil
seal and crankcase surface is about 12.50.5
mm (0.50.02 in).
When installing the oil seal, be careful
to press it with even force.
12-7
