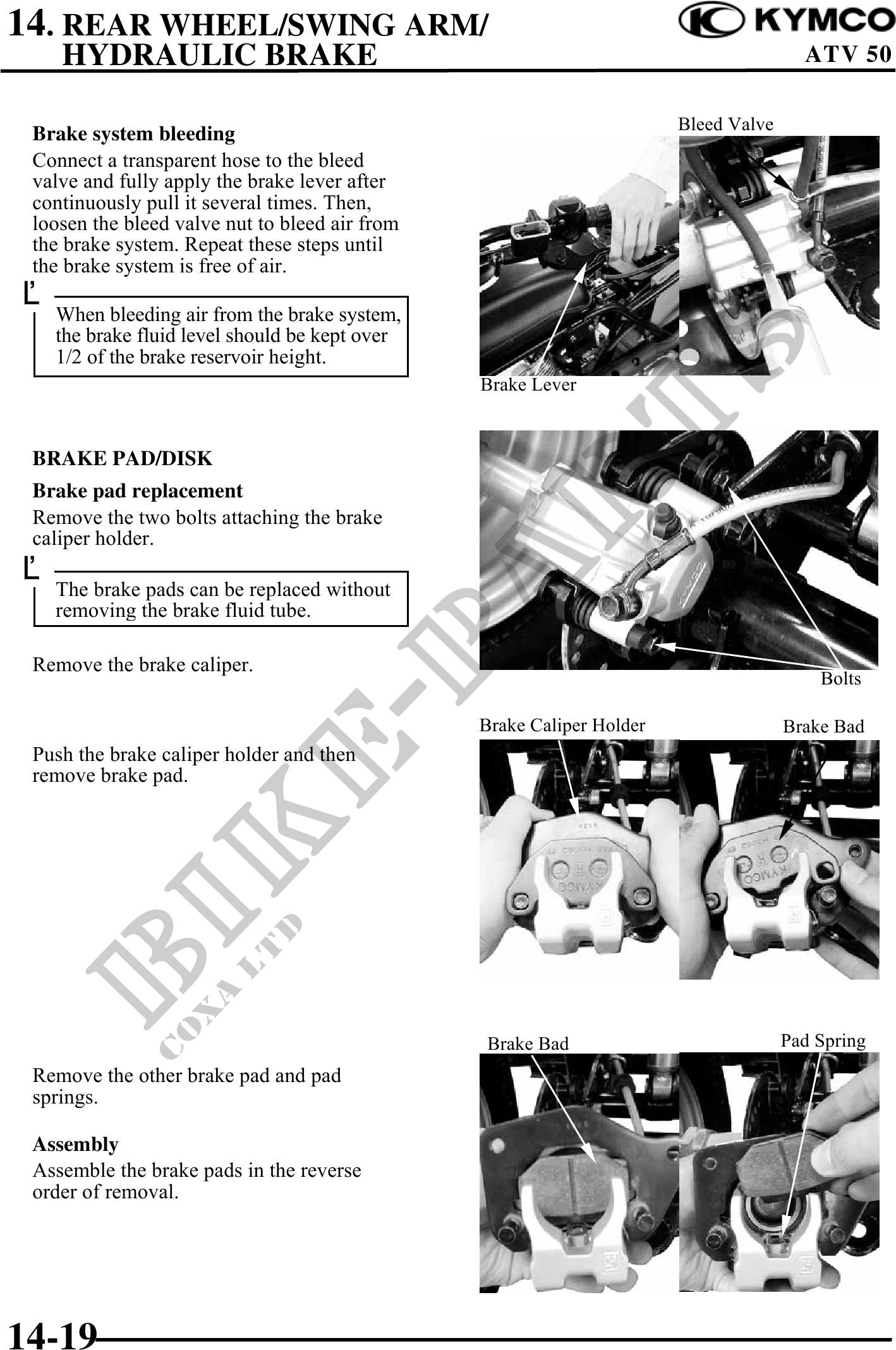

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
Bleed Valve
Brake system bleeding
Connect a transparent hose to the bleed
valve and fully apply the brake lever after
continuously pull it several times. Then,
loosen the bleed valve nut to bleed air from
the brake system. Repeat these steps until
the brake system is free of air.
When bleeding air from the brake system,
the brake fluid level should be kept over
1/2 of the brake reservoir height.
Brake Lever
BRAKE PAD/DISK
Brake pad replacement
Remove the two bolts attaching the brake
caliper holder.
The brake pads can be replaced without
removing the brake fluid tube.
Remove the brake caliper.
Bolts
Brake Caliper Holder Brake Bad
Push the brake caliper holder and then
remove brake pad.
Brake Bad Pad Spring
Remove the other brake pad and pad
springs.
Assembly
Assemble the brake pads in the reverse
order of removal.
14-19
