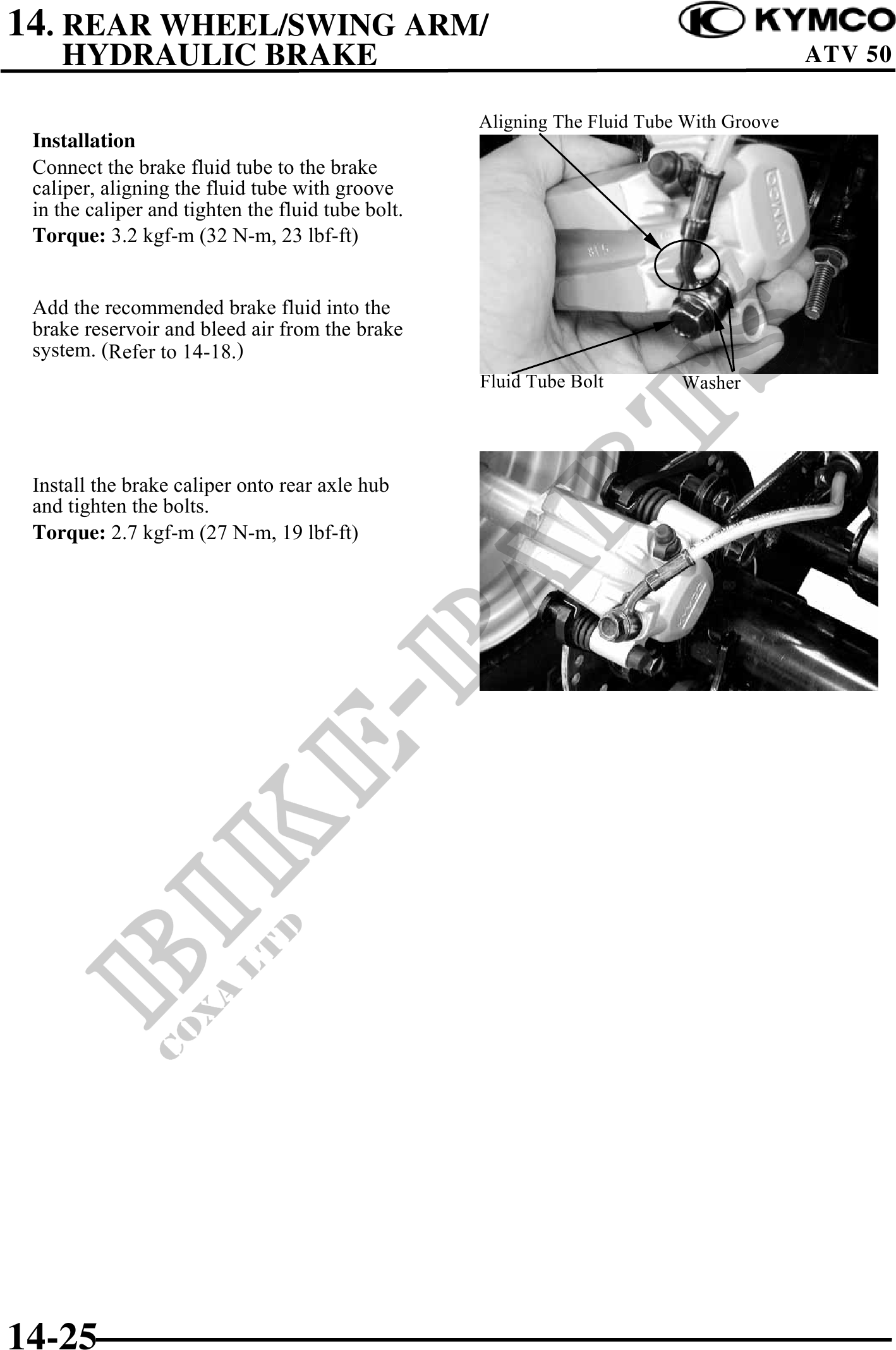

14. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE ATV 50
Aligning The Fluid Tube With Groove
Installation
Connect the brake fluid tube to the brake
caliper, aligning the fluid tube with groove
in the caliper and tighten the fluid tube bolt.
Torque: 3.2 kgf-m (32 N-m, 23 lbf-ft)
Add the recommended brake fluid into the
brake reservoir and bleed air from the brake
system. (Refer to 14-18.)
Fluid Tube Bolt Washer
Install the brake caliper onto rear axle hub
and tighten the bolts.
Torque: 2.7 kgf-m (27 N-m, 19 lbf-ft)
14-25
