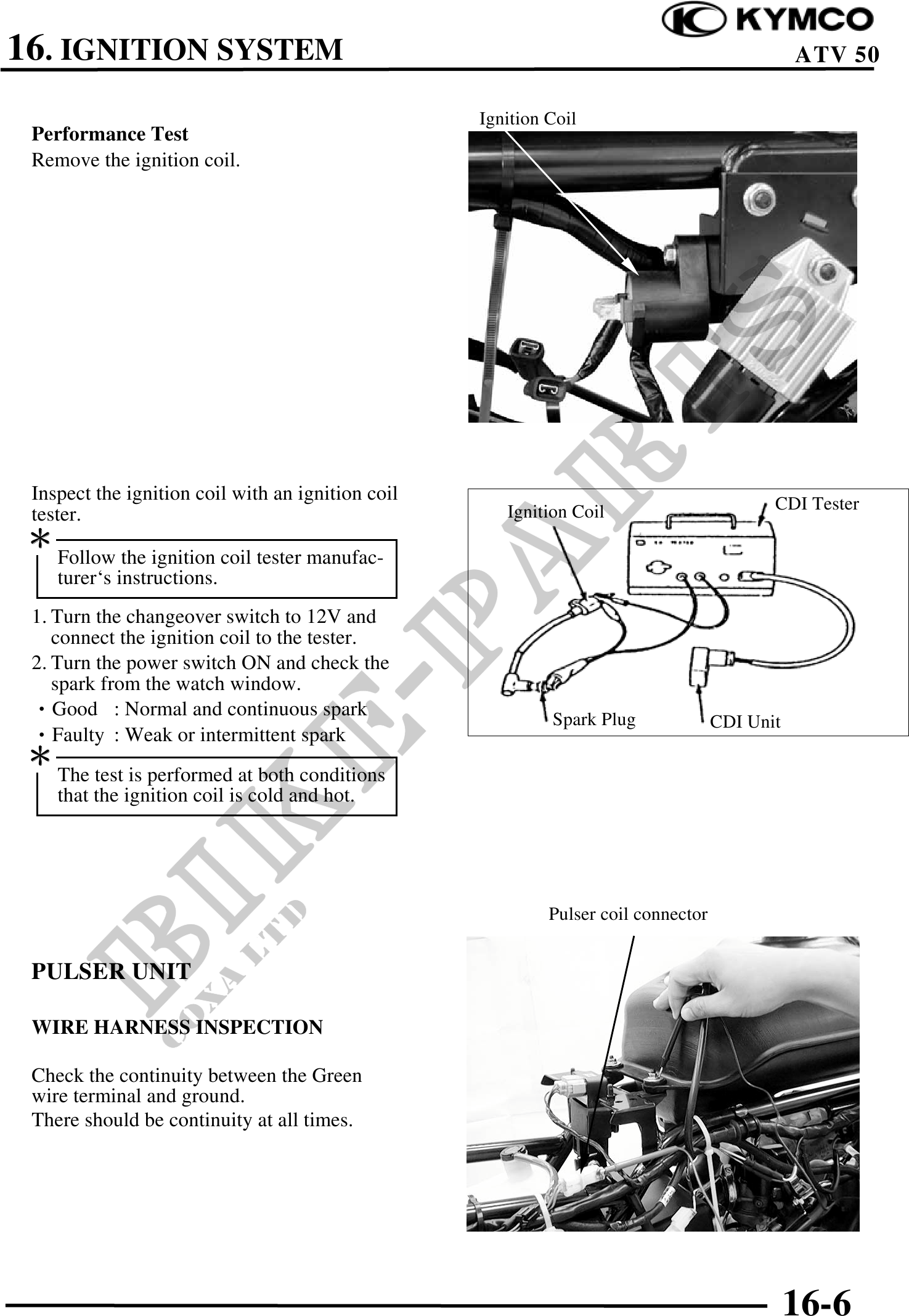

16. IGNITION SYSTEM ATV 50
Ignition Coil
Performance Test
Remove the ignition coil.
Inspect the ignition coil with an ignition coil CDI Tester
tester. Ignition Coil
Follow the ignition coil tester manufac-
turer`s instructions.
1. Turn the changeover switch to 12V and
connect the ignition coil to the tester.
2. Turn the power switch ON and check the
spark from the watch window.
Good : Normal and continuous spark Spark Plug CDI Unit
Faulty : Weak or intermittent spark
The test is performed at both conditions
that the ignition coil is cold and hot.
Pulser coil connector
PULSER UNIT
WIRE HARNESS INSPECTION
Check the continuity between the Green
wire terminal and ground.
There should be continuity at all times.
