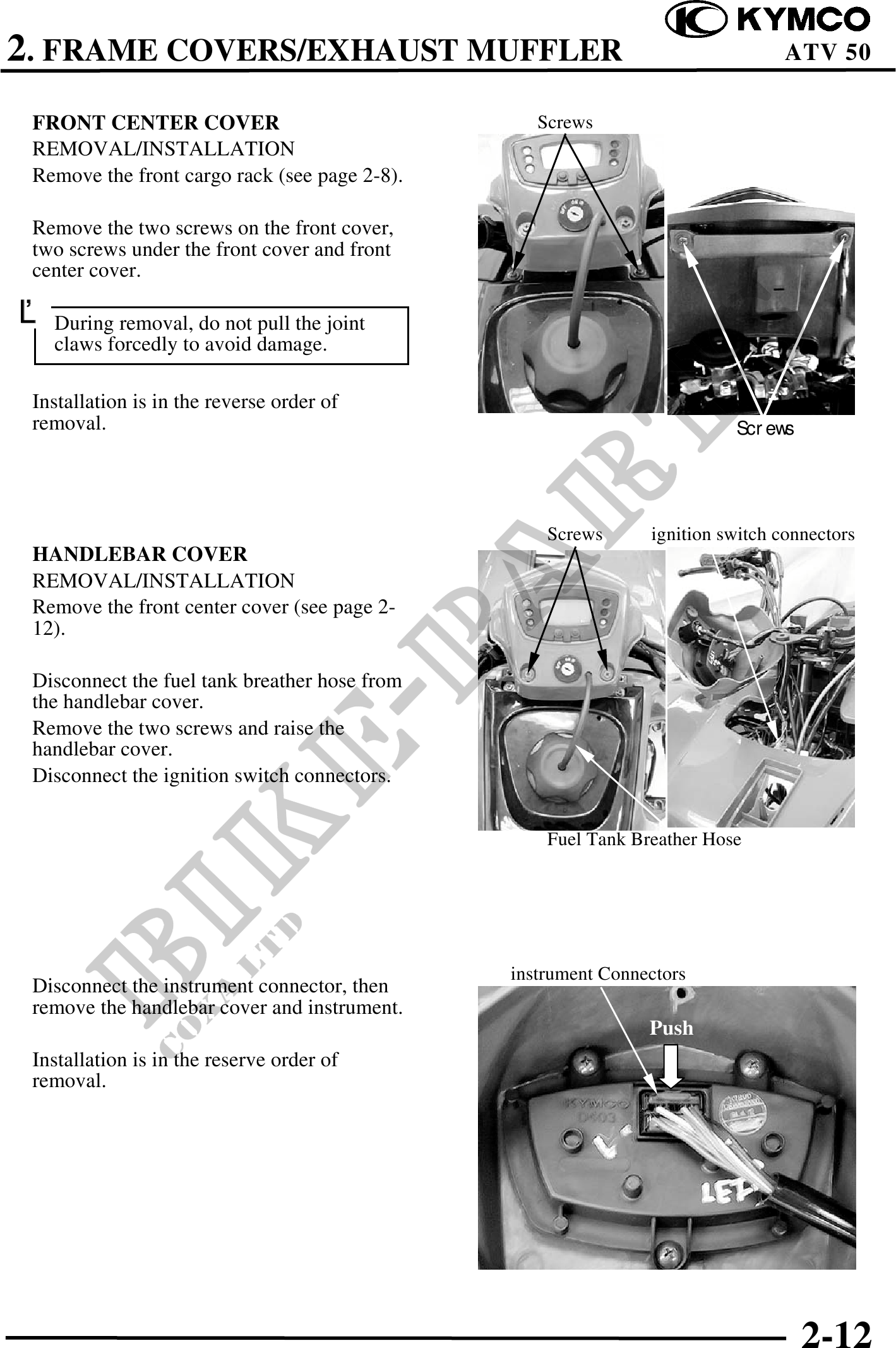

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
FRONT CENTER COVER Screws
REMOVAL/INSTALLATION
Remove the front cargo rack (see page 2-8).
Remove the two screws on the front cover,
two screws under the front cover and front
center cover.
During removal, do not pull the joint
claws forcedly to avoid damage.
Installation is in the reverse order of
removal. Screws
Screws ignition switch connectors
HANDLEBAR COVER
REMOVAL/INSTALLATION
Remove the front center cover (see page 2-
12).
Disconnect the fuel tank breather hose from
the handlebar cover.
Remove the two screws and raise the
handlebar cover.
Disconnect the ignition switch connectors.
Fuel Tank Breather Hose
instrument Connectors
Disconnect the instrument connector, then
remove the handlebar cover and instrument.
Push
Installation is in the reserve order of
removal.
2-12
