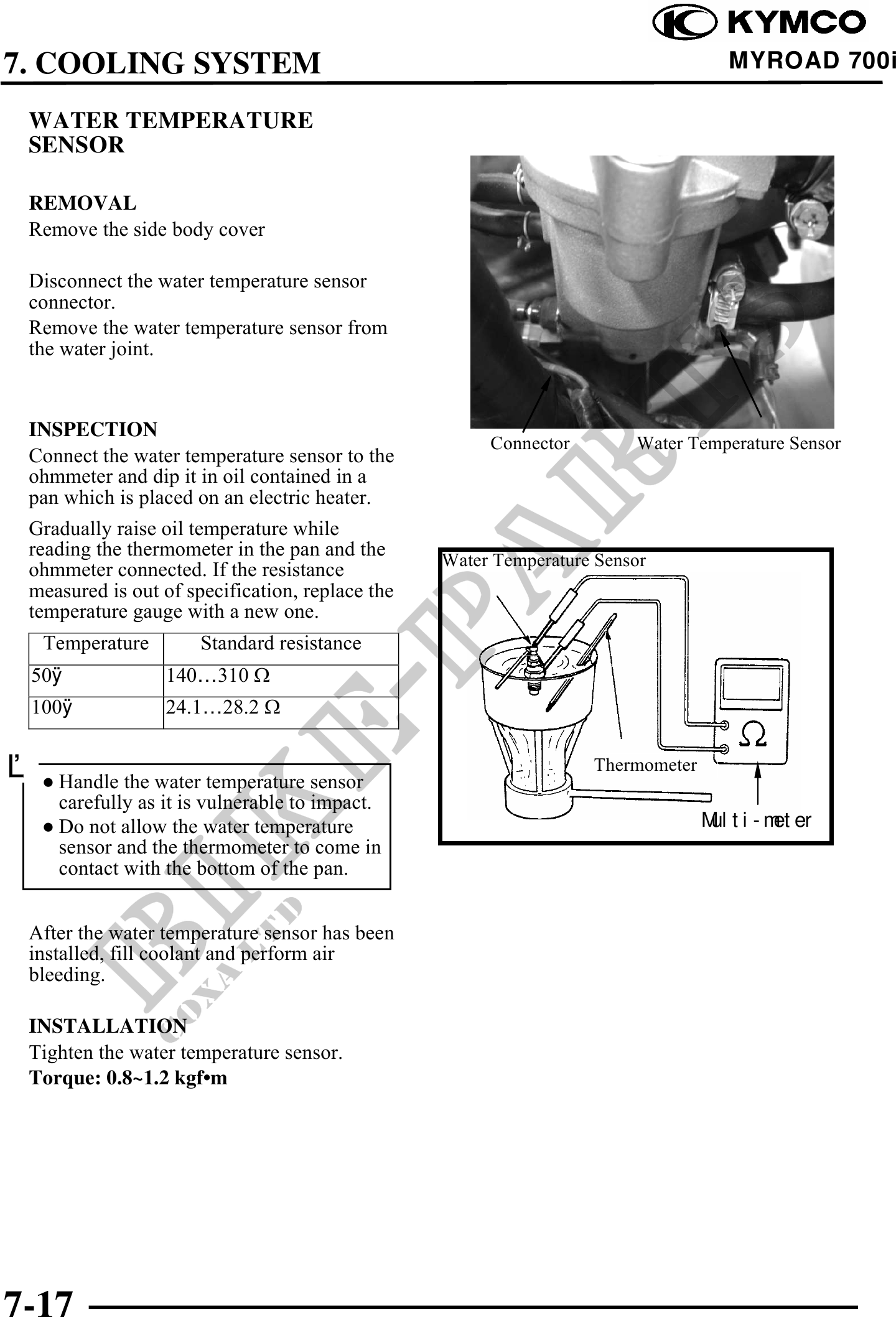

7. COOLING SYSTEM MYROAD 700i
WATER TEMPERATURE
SENSOR
REMOVAL
Remove the side body cover
Disconnect the water temperature sensor
connector.
Remove the water temperature sensor from
the water joint.
INSPECTION
Connector Water Temperature Sensor
Connect the water temperature sensor to the
ohmmeter and dip it in oil contained in a
pan which is placed on an electric heater.
Gradually raise oil temperature while
reading the thermometer in the pan and the Water Temperature Sensor
ohmmeter connected. If the resistance
measured is out of specification, replace the
temperature gauge with a new one.
Temperature Standard resistance
50 140310
100 24.128.2
Handle the water temperature sensor Thermometer
carefully as it is vulnerable to impact.
Do not allow the water temperature Multi-meter
sensor and the thermometer to come in
contact with the bottom of the pan.
After the water temperature sensor has been
installed, fill coolant and perform air
bleeding.
INSTALLATION
Tighten the water temperature sensor.
Torque: 0.8~1.2 kgf·m
7-17
